Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Gh_A12G0570
Common NameTM6
Organism
Gossypium hirsutum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Malvales; Malvaceae; Malvoideae; Gossypium
Family MIKC_MADS
Protein Properties Length: 224aa    MW: 26061.7 Da    PI: 10.2221
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Gh_A12G0570genomeNAU-NBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF93.21.2e-29959151
                 S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
       SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                 krien +nrqvt+skRrngi+KKA+EL vLCda+v++i+fsstgk++e++s
  Gh_A12G0570  9 KRIENATNRQVTYSKRRNGIFKKAQELTVLCDAKVSLIMFSSTGKFHEFIS 59
                 79***********************************************86 PP
2K-box97.32.3e-3271165195
        K-box   1 yqkssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLr 95
                  yqk++g++l+ +++e++q+++++Lk+ +++L+re+R+++G dL++L++keLq Le ++++sl  iR++K++++++q+++ +kk ++l+e++ +L
  Gh_A12G0570  71 YQKTTGTDLWISHYEKMQENYRRLKEINKKLRREIRQRMGGDLDDLNIKELQALEAKMDSSLVAIRDRKYHVIKTQTDTHKKKVRNLEERHANLV 165
                  8999****************************************************************************************996 PP

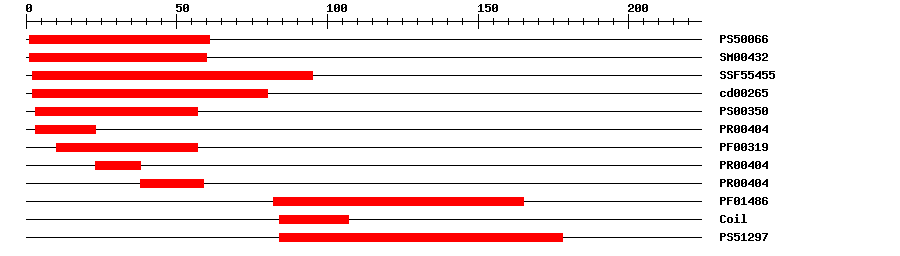

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006632.941161IPR002100Transcription factor, MADS-box
SMARTSM004326.0E-42160IPR002100Transcription factor, MADS-box
SuperFamilySSF554555.62E-37295IPR002100Transcription factor, MADS-box
CDDcd002658.35E-40280No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004042.5E-28323IPR002100Transcription factor, MADS-box
PfamPF003192.5E-241057IPR002100Transcription factor, MADS-box
PRINTSPR004042.5E-282338IPR002100Transcription factor, MADS-box
PRINTSPR004042.5E-283859IPR002100Transcription factor, MADS-box
PfamPF014863.5E-2282165IPR002487Transcription factor, K-box
PROSITE profilePS5129715.67184178IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 224 aa     Download sequence    Send to blast
MGRGKIEIKR IENATNRQVT YSKRRNGIFK KAQELTVLCD AKVSLIMFSS TGKFHEFISP  60
NISTKAFFDL YQKTTGTDLW ISHYEKMQEN YRRLKEINKK LRREIRQRMG GDLDDLNIKE  120
LQALEAKMDS SLVAIRDRKY HVIKTQTDTH KKKVRNLEER HANLVFDLET KLDQQNGIVE  180
SEGYYNEAAN GASNLHALRL YQIHHPNLVL QHGGRFGSND LRLA

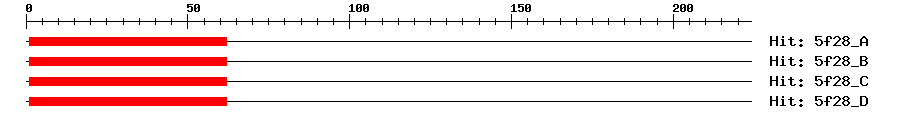

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A1e-15162162MEF2C
5f28_B1e-15162162MEF2C
5f28_C1e-15162162MEF2C
5f28_D1e-15162162MEF2C
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed during flower development in stamens, petals and carpels (PubMed:17920788). Expressed in fruits and seeds (PubMed:17920788). {ECO:0000269|PubMed:17920788}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankHM0069110.0HM006911.1 Gossypium hirsutum transcription factor TM6 (TM6) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_017636571.11e-164PREDICTED: floral homeotic protein PMADS 1-like
SwissprotQ003J21e-110TM6_VITVI; Agamous-like MADS-box protein TM6
TrEMBLG8C4261e-165G8C426_GOSHI; Transcription factor TM6
STRINGGorai.008G064900.11e-157(Gossypium raimondii)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM52612750
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G54340.15e-70MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
