Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Gh_D01G0457
Organism
Gossypium hirsutum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Malvales; Malvaceae; Malvoideae; Gossypium
Family SBP
Protein Properties Length: 182aa    MW: 20260.6 Da    PI: 8.6934
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Gh_D01G0457genomeNAU-NBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP138.61.8e-4359135278
                  -SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S--- CS
          SBP   2 CqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkqa 78
                  Cqve+C +dls ak+yhrrhkvCe+h+kapvv+v+g++qrfCqqCsrfhelsefDe+krsCr+rLa+hnerrrk++a
  Gh_D01G0457  59 CQVEKCGVDLSVAKRYHRRHKVCEIHAKAPVVVVAGIRQRFCQQCSRFHELSEFDEAKRSCRSRLAGHNERRRKSSA 135
                  **************************************************************************976 PP

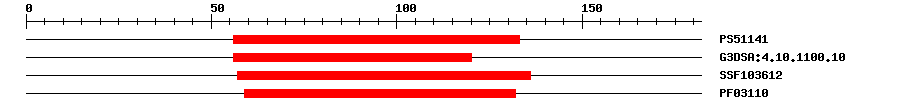

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5114132.50556133IPR004333Transcription factor, SBP-box
Gene3DG3DSA:4.10.1100.108.2E-3656120IPR004333Transcription factor, SBP-box
SuperFamilySSF1036126.8E-4057136IPR004333Transcription factor, SBP-box
PfamPF031101.1E-3359132IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 182 aa     Download sequence    Send to blast
MNKDFMAEDV DNDMEEEGGG EEEEEGAVYH GVQDDEKKKK ASGRRGSSGG VGGVLPPSCQ  60
VEKCGVDLSV AKRYHRRHKV CEIHAKAPVV VVAGIRQRFC QQCSRFHELS EFDEAKRSCR  120
SRLAGHNERR RKSSAESSAE GSSRKGTSPQ LKEGYCRQVD DQRARVPITI PGNSSFKRSH  180
IR
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A1e-3646132184squamosa promoter binding protein-like 4
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Increases during floral transition and stay high thereafter. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:14573523}.
UniprotTISSUE SPECIFICITY: Expressed in the rib meristem and inter-primordial tissue of the inflorescence apex. {ECO:0000269|PubMed:10524240}.
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00634PBMTransfer from PK22320.1Download
Motif logo
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156 and miR157. {ECO:0000305|PubMed:12202040, ECO:0000305|PubMed:16914499}.
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankJX6147631e-167JX614763.1 Gossypium hirsutum clone NBRI_GE58393 microsatellite sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_012458108.11e-130PREDICTED: squamosa promoter-binding protein 1
SwissprotQ9S7A96e-47SPL4_ARATH; Squamosa promoter-binding-like protein 4
TrEMBLA0A0D2Q8V61e-129A0A0D2Q8V6_GOSRA; Uncharacterized protein
STRINGGorai.002G068300.11e-130(Gossypium raimondii)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM86828118
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G15270.11e-38squamosa promoter binding protein-like 5
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Hyun Y, et al.
    Site-directed mutagenesis in Arabidopsis thaliana using dividing tissue-targeted RGEN of the CRISPR/Cas system to generate heritable null alleles.
    Planta, 2015. 241(1): p. 271-84
    [PMID:25269397]
  3. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  4. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  5. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
