Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

Gorai.011G172500.2

Common Name

B456_011G172500, LOC105777326

Organism

Gossypium raimondii

Taxonomic ID

29730

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Malvales; Malvaceae; Malvoideae; Gossypium

Family

bHLH

Protein Properties

Length: 213aa MW: 24138.3 Da PI: 7.0481

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
Gorai.011G172500.2	genome	JGI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	27.6	5.3e-09	61	108	4	54
HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 ++ rE+ RR+++N++f L + l + + + +K++iL A++ + +L Gorai.011G172500.2 61 TKACREKLRREKLNERFLDLSSTLEPG---RPARTDKSAILDDAIRVLTQL 108 6789********************8...789***********99998 PP

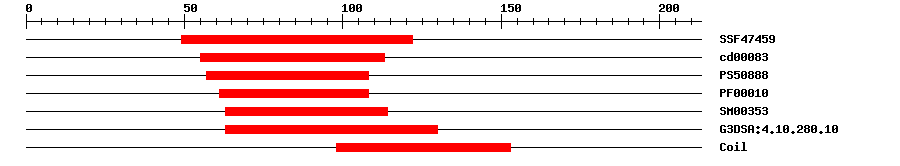

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
SuperFamily	SSF47459	4.58E-12	49	122	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	7.64E-6	55	113	No hit	No description
PROSITE profile	PS50888	12.843	57	108	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	2.4E-6	61	108	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	6.9E-8	63	114	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	1.1E-10	63	130	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 213 aa Download sequence Send to blast
MDLIEVWDFL DFSFIDENTS PDILLPNYSG REIVVHQEKE FVDRDCSRKR GRSGSCSRPG 60 TKACREKLRR EKLNERFLDL SSTLEPGRPA RTDKSAILDD AIRVLTQLRT DAQELKETNE 120 KLLEEIKSLK AEKNEIREEK LVLKANKERI EQQLKTLNVS AAGYLPAHPA GYHAAANKMA 180 VFPGYGLVPV WQYLPPSARD TSQDHEHRPP AA*

Binding Motif ? help Back to Top
Motif ID	Method	Source	Motif file
MP00102	PBM	Transfer from AT4G14410	Download

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	Retrieve

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_012455995.1	1e-157	PREDICTED: transcription factor bHLH104-like isoform X2
Swissprot	Q8L467	1e-81	BH104_ARATH; Transcription factor bHLH104
TrEMBL	A0A0D2UUC4	1e-155	A0A0D2UUC4_GOSRA; Uncharacterized protein
STRING	Gorai.011G172500.1	1e-154	(Gossypium raimondii)

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT4G14410.1	3e-52	bHLH family protein

Link Out ? help Back to Top
Phytozome	Gorai.011G172500.2
Entrez Gene	105777326

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Paterson AH, et al. Repeated polyploidization of Gossypium genomes and the evolution of spinnable cotton fibres. Nature, 2012. 492(7429): p. 423-7 [PMID:23257886] Li X,Zhang H,Ai Q,Liang G,Yu D Two bHLH Transcription Factors, bHLH34 and bHLH104, Regulate Iron Homeostasis in Arabidopsis thaliana. Plant Physiol., 2016. 170(4): p. 2478-93 [PMID:26921305] Liang G,Zhang H,Li X,Ai Q,Yu D bHLH transcription factor bHLH115 regulates iron homeostasis in Arabidopsis thaliana. J. Exp. Bot., 2017. 68(7): p. 1743-1755 [PMID:28369511] Wang C,Yao X,Yu D,Liang G Fe-deficiency-induced expression of bHLH104 enhances Fe-deficiency tolerance of Arabidopsis thaliana. Planta, 2017. 246(3): p. 421-431 [PMID:28451750] Ezer D, et al. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol., 2017. 175(2): p. 628-640 [PMID:28864470] Min JH, et al. Arabidopsis Basic Helix-Loop-Helix 34 (bHLH34) Is Involved in Glucose Signaling through Binding to a GAGA Cis-Element. Front Plant Sci, 2017. 8: p. 2100 [PMID:29321786] Min JH, et al. A basic helix-loop-helix 104 (bHLH104) protein functions as a transcriptional repressor for glucose and abscisic acid signaling in Arabidopsis. Plant Physiol. Biochem., 2019. 136: p. 34-42 [PMID:30639920]
