Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Han002976
Common NameHAM63
Organism
Helianthus annuus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; campanulids; Asterales; Asteraceae; Asteroideae; Heliantheae alliance; Heliantheae; Helianthus
Family MIKC_MADS
Protein Properties Length: 229aa    MW: 26583.5 Da    PI: 9.0289
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
gnl|UG|Han#S38818816PU_refUnigeneView CDS
PUT-169a-Helianthus_annuus-16507PU_unrefplantGDBView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF86.12.1e-27959151
               S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
     SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
               k+ien++nrqvt+skRrng++KKA+EL vLCda+v++i++s t kl+ey+s
  Han002976  9 KKIENSTNRQVTYSKRRNGLFKKANELTVLCDAKVSIIMVSCTEKLHEYIS 59
               68***********************************************86 PP
2K-box75.41.5e-2571169199
      K-box   1 yqkssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                yqk+sg +l+++++e++q+el++Lk+ + nL+r++R++lG++Le+  ++eL  Le++ ++++  iR++K +++ +++e+ +kk +++q+  k+L ++++
  Han002976  71 YQKASGIDLWNSHYEKMQEELRQLKDVNTNLRRQIRQRLGDCLENVGFEELLDLERESQEAVYIIRERKLKVISNKLETCKKKVRSAQDVYKKLMHEFD 169
                899*******************************************************************************************99875 PP

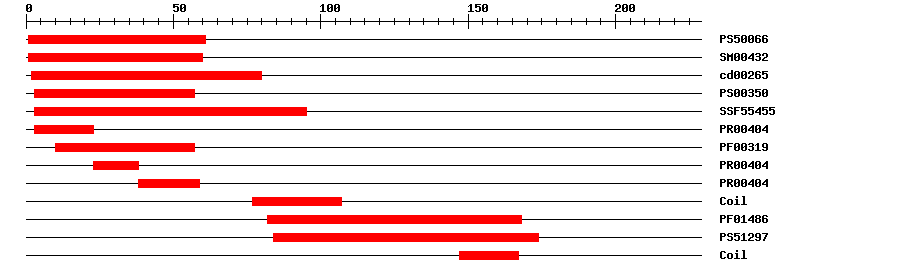

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006630.319161IPR002100Transcription factor, MADS-box
SMARTSM004325.8E-38160IPR002100Transcription factor, MADS-box
CDDcd002652.05E-37280No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
SuperFamilySSF554551.2E-35395IPR002100Transcription factor, MADS-box
PRINTSPR004048.1E-26323IPR002100Transcription factor, MADS-box
PfamPF003199.4E-241057IPR002100Transcription factor, MADS-box
PRINTSPR004048.1E-262338IPR002100Transcription factor, MADS-box
PRINTSPR004048.1E-263859IPR002100Transcription factor, MADS-box
PfamPF014866.9E-1782168IPR002487Transcription factor, K-box
PROSITE profilePS5129713.30984174IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 229 aa     Download sequence    Send to blast
MARGKIQIKK IENSTNRQVT YSKRRNGLFK KANELTVLCD AKVSIIMVSC TEKLHEYISP  60
SITTKQFFDQ YQKASGIDLW NSHYEKMQEE LRQLKDVNTN LRRQIRQRLG DCLENVGFEE  120
LLDLERESQE AVYIIRERKL KVISNKLETC KKKVRSAQDV YKKLMHEFDI RGEDPQYGMI  180
EDAGEYEALY GYPPRIAAAP RILTLRLQPN HPNDLHAAAS DLTTYALLG
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor involved in the genetic control of flower development. Acts in conjunction with GLOBOSA (glo).
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021983751.11e-171floral homeotic protein DEFICIENS-like
SwissprotP237061e-103DEFA_ANTMA; Floral homeotic protein DEFICIENS
TrEMBLA6N6761e-170A6N676_HELAN; MADS-box transcription factor HAM63
STRINGXP_009794650.11e-102(Nicotiana sylvestris)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G54340.17e-89MIKC_MADS family protein
Publications ? help Back to Top
  1. Schwarz-Sommer Z, et al.
    Characterization of the Antirrhinum floral homeotic MADS-box gene deficiens: evidence for DNA binding and autoregulation of its persistent expression throughout flower development.
    EMBO J., 1992. 11(1): p. 251-63
    [PMID:1346760]
  2. Sommer H, et al.
    Deficiens, a homeotic gene involved in the control of flower morphogenesis in Antirrhinum majus: the protein shows homology to transcription factors.
    EMBO J., 1990. 9(3): p. 605-13
    [PMID:1968830]
  3. Gallois JL, et al.
    Functional characterization of the plant ubiquitin regulatory X (UBX) domain-containing protein AtPUX7 in Arabidopsis thaliana.
    Gene, 2013. 526(2): p. 299-308
    [PMID:23747397]
  4. Davies B,Egea-Cortines M,de Andrade Silva E,Saedler H,Sommer H
    Multiple interactions amongst floral homeotic MADS box proteins.
    EMBO J., 1996. 15(16): p. 4330-43
    [PMID:8861961]
