Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Han007497
Organism
Helianthus annuus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; campanulids; Asterales; Asteraceae; Asteroideae; Heliantheae alliance; Heliantheae; Helianthus
Family MIKC_MADS
Protein Properties Length: 195aa    MW: 22958.2 Da    PI: 9.8209
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
gnl|UG|Han#S48332908PU_refUnigeneView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF100.47e-32959151
               S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
     SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
               krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  Han007497  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSNRGKLYEFCS 59
               79***********************************************96 PP
2K-box75.41.5e-2578159485
      K-box   4 ssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkek 85
                 + ++ ++  ++++++e+ kLk+++e+Lq+ qR+l GedL++L+l eL+qLe+qL++ l++iRs +++ +l+ +++lq +++
  Han007497  78 MEVNRSTNDAEQNSYKEYMKLKAKYESLQQYQRQLFGEDLGPLNLTELEQLERQLDSTLRQIRSIRTQSMLDRLSDLQVRKR 159
                555667778899******************************************************************8876 PP

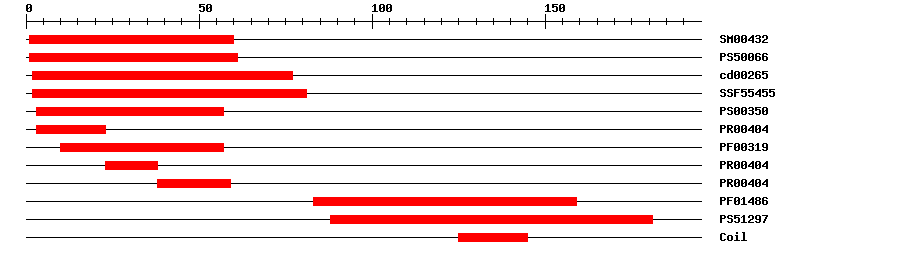

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.3E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.529161IPR002100Transcription factor, MADS-box
CDDcd002653.49E-44277No hitNo description
SuperFamilySSF554551.83E-34281IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004045.2E-33323IPR002100Transcription factor, MADS-box
PfamPF003191.5E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004045.2E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004045.2E-333859IPR002100Transcription factor, MADS-box
PfamPF014861.1E-2183159IPR002487Transcription factor, K-box
PROSITE profilePS5129712.13788181IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 195 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFSN RGKLYEFCST  60
SNMLKMIERY QNCTYSSMEV NRSTNDAEQN SYKEYMKLKA KYESLQQYQR QLFGEDLGPL  120
NLTELEQLER QLDSTLRQIR SIRTQSMLDR LSDLQVRKRC GSVANILCRT TRRIYAEXQQ  180
DIMGRGEMVL IWHTS

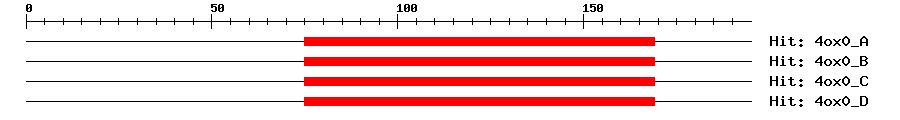

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A1e-2475169198Developmental protein SEPALLATA 3
4ox0_B1e-2475169198Developmental protein SEPALLATA 3
4ox0_C1e-2475169198Developmental protein SEPALLATA 3
4ox0_D1e-2475169198Developmental protein SEPALLATA 3
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in flowers and seeds. {ECO:0000269|Ref.1}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021983300.11e-110developmental protein SEPALLATA 1-like
SwissprotQ8LLR21e-83MADS2_VITVI; Agamous-like MADS-box protein MADS2
TrEMBLA0A251TXJ61e-108A0A251TXJ6_HELAN; Putative K-box region and MADS-box transcription factor family protein
STRINGSolyc02g089200.2.13e-88(Solanum lycopersicum)
STRINGPGSC0003DMT4000034833e-88(Solanum tuberosum)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G15800.12e-85MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
