Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Jcr4S04670.20
Common NameJCGZ_00663, LOC105632778
Organism
Jatropha curcas
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Jatropheae; Jatropha
Family NAC
Protein Properties Length: 342aa    MW: 38263.1 Da    PI: 8.4277
Description NAC family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Jcr4S04670.20genomeKazusaView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NAM169.31.2e-52141391128
            NAM   1 lppGfrFhPtdeelvveyLkkkvegkkleleevikevdiykvePwdLpkkvkaeekewyfFskrdkkyatgkrknratksgyWkatgkdkevlskk 96
                    lppGfrF Ptdeel+v+yL++kv+g++++l ++i+e+d+yk++Pw Lp+k+  +ekewyfFs+rd+ky++g+r+nr++ sgyWkatg+dk +++ +
  Jcr4S04670.20  14 LPPGFRFYPTDEELLVQYLCRKVAGQQFSL-QIIAEIDLYKFDPWVLPSKAIFGEKEWYFFSPRDRKYPNGSRPNRVAGSGYWKATGTDKVITT-E 107
                    79***************************9.89***************7777799*************************************99.9 PP

            NAM  97 gelvglkktLvfykgrapkgektdWvmheyrl 128
                    g++vg+kk Lvfy g+apkg+kt+W+mheyrl
  Jcr4S04670.20 108 GRKVGIKKALVFYVGKAPKGTKTNWIMHEYRL 139
                    99****************************97 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF1019414.45E-679163IPR003441NAC domain
PROSITE profilePS5100560.50314162IPR003441NAC domain
PfamPF023651.8E-2615139IPR003441NAC domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009414Biological Processresponse to water deprivation
GO:0009737Biological Processresponse to abscisic acid
GO:0045893Biological Processpositive regulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 342 aa     Download sequence    Send to blast
MGVLEMDPIT QLSLPPGFRF YPTDEELLVQ YLCRKVAGQQ FSLQIIAEID LYKFDPWVLP  60
SKAIFGEKEW YFFSPRDRKY PNGSRPNRVA GSGYWKATGT DKVITTEGRK VGIKKALVFY  120
VGKAPKGTKT NWIMHEYRLL ESSRKNGSTK LDDWVLCRIY KKNSGAQKPI SNTVPSKEYS  180
NNGSCSSSSS HLDDVLDSLP EIDDRFFAIP ATNSAKPMHH EEKVNLNNFG SGNFDWASLA  240
GLNPVSELLP SGPTQTQGML NQSYMNSTCN DLYVPSLPSQ GVHVDSKMLN LVEEEVQSGI  300
RTQRLDNTGF FQQNSGVSTQ NFSNPYGCRF STQPGSGFGF RQ

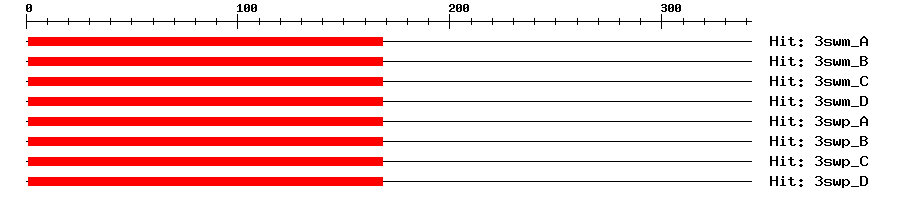

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
3swm_A1e-11111687174NAC domain-containing protein 19
3swm_B1e-11111687174NAC domain-containing protein 19
3swm_C1e-11111687174NAC domain-containing protein 19
3swm_D1e-11111687174NAC domain-containing protein 19
3swp_A1e-11111687174NAC domain-containing protein 19
3swp_B1e-11111687174NAC domain-containing protein 19
3swp_C1e-11111687174NAC domain-containing protein 19
3swp_D1e-11111687174NAC domain-containing protein 19
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor that acts downstream of MYC2 in the jasmonate-mediated response to Botrytis cinerea infection (PubMed:28733419). With MYC2 forms a transcription module that regulates wounding-responsive genes (PubMed:28733419). Involved in jasmonate- and coronatine-mediated stomatal reopening in response to Pseudomonas syringae pv tomato DC3000 infection (PubMed:25005917). Regulates the expression of threonine deaminase 2 (TD2) through promoter binding (PubMed:28733419). {ECO:0000269|PubMed:25005917, ECO:0000269|PubMed:28733419}.
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Induced by jasmonate (JA) (PubMed:25005917, PubMed:28733419, PubMed:30610166). Induced by wounding (PubMed:28733419, PubMed:25005917). Induced by infection with the fungal pathogen Botrytis cinerea (PubMed:28733419). Induced by coronatine (PubMed:25005917). {ECO:0000269|PubMed:25005917, ECO:0000269|PubMed:28733419, ECO:0000269|PubMed:30610166}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankKM4544630.0KM454463.1 Jatropha curcas NAC3 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001298118.10.0NAC domain-containing protein 72
SwissprotA0A3Q7HH641e-147JA2L_SOLLC; NAC domain-containing protein JA2L
TrEMBLR4N5K20.0R4N5K2_JATCU; NAC transcription factor 021
STRINGcassava4.1_010991m0.0(Manihot esculenta)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF44293360
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G27410.21e-125NAC family protein
Publications ? help Back to Top
  1. Tomato Genome Consortium
    The tomato genome sequence provides insights into fleshy fruit evolution.
    Nature, 2012. 485(7400): p. 635-41
    [PMID:22660326]
  2. Zhang L, et al.
    Global analysis of gene expression profiles in physic nut (Jatropha curcas L.) seedlings exposed to salt stress.
    PLoS ONE, 2014. 9(5): p. e97878
    [PMID:24837971]
  3. Ni J, et al.
    Gibberellin Promotes Shoot Branching in the Perennial Woody Plant Jatropha curcas.
    Plant Cell Physiol., 2015. 56(8): p. 1655-66
    [PMID:26076970]
  4. Wu Z, et al.
    Genome-Wide Analysis of the NAC Gene Family in Physic Nut (Jatropha curcas L.).
    PLoS ONE, 2015. 10(6): p. e0131890
    [PMID:26125188]
  5. Du M, et al.
    MYC2 Orchestrates a Hierarchical Transcriptional Cascade That Regulates Jasmonate-Mediated Plant Immunity in Tomato.
    Plant Cell, 2017. 29(8): p. 1883-1906
    [PMID:28733419]
  6. Liu Y, et al.
    MYC2 Regulates the Termination of Jasmonate Signaling via an Autoregulatory Negative Feedback Loop.
    Plant Cell, 2019. 31(1): p. 106-127
    [PMID:30610166]
