Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Jcr4S04839.30
Common NameJCGZ_19241, LOC105641859
Organism
Jatropha curcas
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Jatropheae; Jatropha
Family bHLH
Protein Properties Length: 213aa    MW: 24404.3 Da    PI: 5.1786
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Jcr4S04839.30genomeKazusaView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH25.32.7e-08111151954
                    HHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS
            HLH   9 ErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54
                     r RR+ri +++  L++l+P       +K++ a++L +A++Y+k L
  Jcr4S04839.30 111 ARHRRERISEKMRILQRLVPGG-----TKMDTASMLDEAIRYVKFL 151
                    699*****************87.....8****************98 PP

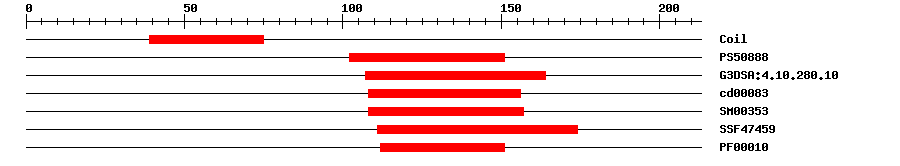

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5088814.919102151IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.103.7E-13107164IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000832.96E-10108156No hitNo description
SMARTSM003539.4E-13108157IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474595.23E-15111174IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000101.2E-5112151IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0010500Biological Processtransmitting tissue development
GO:0048462Biological Processcarpel formation
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 213 aa     Download sequence    Send to blast
MEDQIFHDQI PVNSYYPIYT YQTHQKPFSS SSIPISTFFG DHKNHLQDYQ EETEEKEEEE  60
EEEGEEEELG AMKEMMYKIA AMQPVDIDPS TIRKPKRRNV RISDDPQSVA ARHRRERISE  120
KMRILQRLVP GGTKMDTASM LDEAIRYVKF LKKQVRLLQS SNNQHIPPWQ PPPLASTATS  180
SSLESPAGLG FTFSGANRGD PAAFCFNHEV ISD
Functional Description ? help Back to Top
Source Description
UniProtRequired for the female reproductive tract development and fertility. {ECO:0000269|PubMed:17855426}.
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by ARF3/ETT in the abaxial gynoecium. {ECO:0000269|PubMed:17855426}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_012081876.11e-159transcription factor HEC3
SwissprotQ9LXD82e-46HEC3_ARATH; Transcription factor HEC3
TrEMBLA0A067K3831e-158A0A067K383_JATCU; Uncharacterized protein
STRINGEOX924892e-78(Theobroma cacao)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF65134141
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G09750.11e-47bHLH family protein
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Zhang L, et al.
    Global analysis of gene expression profiles in physic nut (Jatropha curcas L.) seedlings exposed to salt stress.
    PLoS ONE, 2014. 9(5): p. e97878
    [PMID:24837971]
  3. Zhu L, et al.
    A Negative Feedback Loop between PHYTOCHROME INTERACTING FACTORs and HECATE Proteins Fine-Tunes Photomorphogenesis in Arabidopsis.
    Plant Cell, 2016. 28(4): p. 855-74
    [PMID:27073231]
