Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Jcr4S05731.10
Organism
Jatropha curcas
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Jatropheae; Jatropha
Family SBP
Protein Properties Length: 194aa    MW: 21699.5 Da    PI: 9.6941
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Jcr4S05731.10genomeKazusaView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP132.21.8e-4170147178
                    --SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S--- CS
            SBP   1 lCqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkqa 78
                    +Cq+e+C+adl+ ak yh+rhkvCe hska+ v+v+g++qrfCqqCsrfhelsefDe+krsCrrrLa+hnerrrk+++
  Jcr4S05731.10  70 CCQAEKCTADLTYAKPYHKRHKVCEYHSKAQIVVVDGIRQRFCQQCSRFHELSEFDETKRSCRRRLAGHNERRRKTHT 147
                    6**************************************************************************976 PP

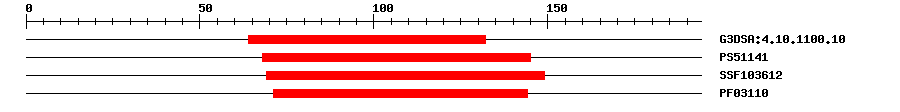

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:4.10.1100.104.2E-3364132IPR004333Transcription factor, SBP-box
PROSITE profilePS5114131.81268145IPR004333Transcription factor, SBP-box
SuperFamilySSF1036121.7E-3769149IPR004333Transcription factor, SBP-box
PfamPF031106.8E-3271144IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 194 aa     Download sequence    Send to blast
MDGKGKQRII ERLVKKELAE FGGESSDDDG SLEMGSVDDC IESNKKKKAV AGGGKKGFGG  60
GGAGSGGMRC CQAEKCTADL TYAKPYHKRH KVCEYHSKAQ IVVVDGIRQR FCQQCSRFHE  120
LSEFDETKRS CRRRLAGHNE RRRKTHTENS IHKGTGTQLK NMVCGQVDDR GRIKITIQDN  180
ATYKHFQIRQ TNCS
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A2e-3861144184squamosa promoter binding protein-like 4
Search in ModeBase
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
15260GGKKGFGGG
Functional Description ? help Back to Top
Source Description
UniProtProbable transcriptional factor. Binds to the promoter of the SQUAMOSA gene.
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00634PBMTransfer from PK22320.1Download
Motif logo
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156 and miR157. {ECO:0000305|PubMed:12202040, ECO:0000305|PubMed:16914499}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020540121.11e-141squamosa promoter-binding protein 1 isoform X1
RefseqXP_020540122.11e-141squamosa promoter-binding protein 1 isoform X2
SwissprotQ387413e-43SBP1_ANTMA; Squamosa promoter-binding protein 1
SwissprotQ9S7A91e-42SPL4_ARATH; Squamosa promoter-binding-like protein 4
TrEMBLA0A067JX422e-89A0A067JX42_JATCU; Uncharacterized protein
STRINGXP_002517882.18e-80(Ricinus communis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF53534153
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G53160.24e-44squamosa promoter binding protein-like 4
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Hyun Y, et al.
    Site-directed mutagenesis in Arabidopsis thaliana using dividing tissue-targeted RGEN of the CRISPR/Cas system to generate heritable null alleles.
    Planta, 2015. 241(1): p. 271-84
    [PMID:25269397]
  3. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  4. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  5. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
  6. Klein J,Saedler H,Huijser P
    A new family of DNA binding proteins includes putative transcriptional regulators of the Antirrhinum majus floral meristem identity gene SQUAMOSA.
    Mol. Gen. Genet., 1996. 250(1): p. 7-16
    [PMID:8569690]
