Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID KFK28146.1
Organism
Arabis alpina
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Arabideae; Arabis
Family NAC
Protein Properties Length: 186aa    MW: 21338.6 Da    PI: 4.5147
Description NAC family protein
Gene Model
Gene Model ID Type Source Coding Sequence
KFK28146.1genomeMPIPBRView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NAM109.15.3e-3431181128
         NAM   1 lppGfrFhPtdeelvveyLkkkvegkkleleevikevdiykvePwdLpkkvkaeekewyfFskrdkkyatgkrknratksgyWkatgkdkevlsk.kge 98
                 lppGfrF Ptdeelvv++L++k++  +++  +vi+++d+y ++PwdLp k+ +e ++wyf+s++         + r+t++gyW + g d++++++ +++
  KFK28146.1   3 LPPGFRFFPTDEELVVHFLHRKASLLPCHP-DVIPDLDLYPYDPWDLPGKALGEGRQWYFYSRKT--------QDRVTSNGYWGSMGIDESIYTSsTHK 92
                 79*************************999.99***************87778899*****9974........5799****************987788 PP

         NAM  99 lvglkktLvfykgrapkgektdWvmheyrl 128
                 +vg+kk L+fy g++    +t+Wvm+ey+l
  KFK28146.1  93 KVGIKKYLTFYLGDS----QTNWVMQEYSL 118
                 8**********7654....68*******97 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF1019411.22E-431154IPR003441NAC domain
PROSITE profilePS5100541.7783154IPR003441NAC domain
PfamPF023654.6E-224118IPR003441NAC domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010089Biological Processxylem development
GO:0043067Biological Processregulation of programmed cell death
GO:0048367Biological Processshoot system development
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 186 aa     Download sequence    Send to blast
MNLPPGFRFF PTDEELVVHF LHRKASLLPC HPDVIPDLDL YPYDPWDLPG KALGEGRQWY  60
FYSRKTQDRV TSNGYWGSMG IDESIYTSST HKKVGIKKYL TFYLGDSQTN WVMQEYSLPD  120
SSSSSSRSSK RSSRASSSSK PDYSKWVICR VYEQNCSEEE EDDGTELSCL DEVFLSLDDL  180
DEVSLP

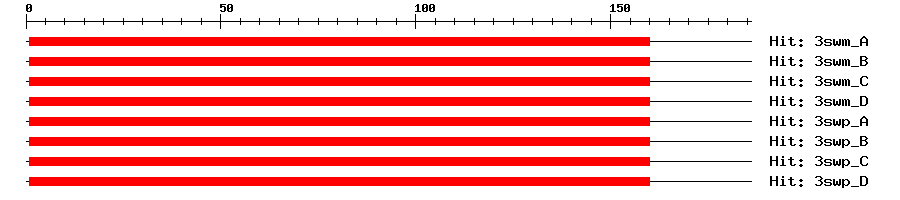

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
3swm_A6e-37116018174NAC domain-containing protein 19
3swm_B6e-37116018174NAC domain-containing protein 19
3swm_C6e-37116018174NAC domain-containing protein 19
3swm_D6e-37116018174NAC domain-containing protein 19
3swp_A6e-37116018174NAC domain-containing protein 19
3swp_B6e-37116018174NAC domain-containing protein 19
3swp_C6e-37116018174NAC domain-containing protein 19
3swp_D6e-37116018174NAC domain-containing protein 19
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor that influences tracheary elements and xylem development by negatively regulating secondary cell wall fiber synthesis and programmed cell death. {ECO:0000269|PubMed:18069942, ECO:0000269|PubMed:20458494}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapKFK28146.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAK1187830.0AK118783.1 Arabidopsis thaliana At5g64530 mRNA for unknown protein, complete cds, clone: RAFL21-11-N14.
GenBankBT0257460.0BT025746.1 Arabidopsis thaliana At5g64530 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013619013.11e-117PREDICTED: NAC transcription factor 25-like
SwissprotQ8GWK61e-117NC104_ARATH; NAC domain-containing protein 104
TrEMBLA0A087GE441e-134A0A087GE44_ARAAL; Uncharacterized protein
STRINGA0A087GE441e-135(Arabis alpina)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM36742862
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G64530.15e-99xylem NAC domain 1
Publications ? help Back to Top
  1. Zhao C, et al.
    XYLEM NAC DOMAIN1, an angiosperm NAC transcription factor, inhibits xylem differentiation through conserved motifs that interact with RETINOBLASTOMA-RELATED.
    New Phytol., 2017. 216(1): p. 76-89
    [PMID:28742236]
  2. Tang N, et al.
    Natural variation at XND1 impacts root hydraulics and trade-off for stress responses in Arabidopsis.
    Nat Commun, 2018. 9(1): p. 3884
    [PMID:30250259]
