Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID KFK38868.1
Organism
Arabis alpina
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Arabideae; Arabis
Family SBP
Protein Properties Length: 181aa    MW: 21111.7 Da    PI: 10.0029
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
KFK38868.1genomeMPIPBRView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP133.19.1e-4263138277
                 -SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S-- CS
         SBP   2 CqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkq 77
                 Cqv++C+a+l+eak+yhrrh+vCevh+ka++++v+g++qrfCqqCsrfhel efDe+krsCrrrLa+hnerrrk++
  KFK38868.1  63 CQVDRCAANLTEAKQYHRRHRVCEVHAKASAATVAGVRQRFCQQCSRFHELPEFDETKRSCRRRLAGHNERRRKSS 138
                 **************************************************************************87 PP

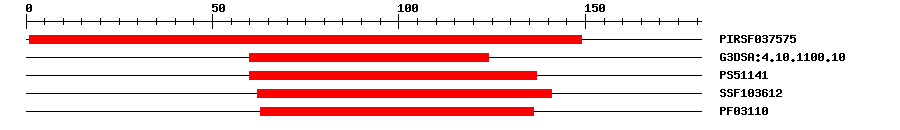

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PIRSFPIRSF0375757.0E-551149IPR017238Squamosa promoter-binding protein
Gene3DG3DSA:4.10.1100.107.6E-3260124IPR004333Transcription factor, SBP-box
PROSITE profilePS5114132.07760137IPR004333Transcription factor, SBP-box
SuperFamilySSF1036122.35E-3862141IPR004333Transcription factor, SBP-box
PfamPF031102.3E-3163136IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0009908Biological Processflower development
GO:0010321Biological Processregulation of vegetative phase change
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046872Molecular Functionmetal ion binding
Sequence ? help Back to Top
Protein Sequence    Length: 181 aa     Download sequence    Send to blast
MEGQRTQRRG YLKEKATVSS LVEEEMENDM DEEEEDGGEE DKRRRMMERV RGPITDRVPS  60
RLCQVDRCAA NLTEAKQYHR RHRVCEVHAK ASAATVAGVR QRFCQQCSRF HELPEFDETK  120
RSCRRRLAGH NERRRKSSGE SFGEGSGRRG FSGQLIQTQE RNRVDMKLPM TNSSLKRPQI  180
R
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A4e-3961136984squamosa promoter binding protein-like 4
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00359DAPTransfer from AT3G15270Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapKFK38868.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156. {ECO:0000269|PubMed:16914499}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ0116100.0AJ011610.1 Arabidopsis thaliana (ecotype Landsberg erecta) mRNA for squamosa promoter binding protein-like 5.
GenBankAJ2429600.0AJ242960.1 Arabidopsis thaliana mRNA for Squamosa promoter binding protein-like 5, (SPL5 gene).
GenBankAK1186110.0AK118611.1 Arabidopsis thaliana At3g15270 mRNA for squamosa promoter binding protein-like 5, putative, complete cds, clone: RAFL19-86-N19.
GenBankBT0037140.0BT003714.1 Arabidopsis thaliana At3g15270 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006298553.21e-115squamosa promoter-binding-like protein 5
SwissprotQ9S7581e-109SPL5_ARATH; Squamosa promoter-binding-like protein 5
TrEMBLA0A087H9R61e-129A0A087H9R6_ARAAL; Squamosa promoter-binding-like protein
STRINGA0A087H9R61e-129(Arabis alpina)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM86828118
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G15270.12e-87squamosa promoter binding protein-like 5
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  3. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  4. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
