Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID KHN08900.1
Organism
Glycine soja
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Glycine; Soja
Family MYB_related
Protein Properties Length: 97aa    MW: 11053.3 Da    PI: 8.4603
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
KHN08900.1genomeTCUHKView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding24.65.8e-081055245
                     SSS-HHHHHHHHHHHHHTTTT...-HHHHHHHHTTTS-HHHHHHHHH CS
  Myb_DNA-binding  2 grWTteEdellvdavkqlGgg...tWktIartmgkgRtlkqcksrwq 45
                     g+W+  + + + +a + + ++   +W  +a+ +g g+t++++k ++
       KHN08900.1 10 GSWSVKDNKAFEKALAVYDKDtpdRWYNVAHAVG-GKTPEEVKRHYE 55
                     79********************************.**********96 PP

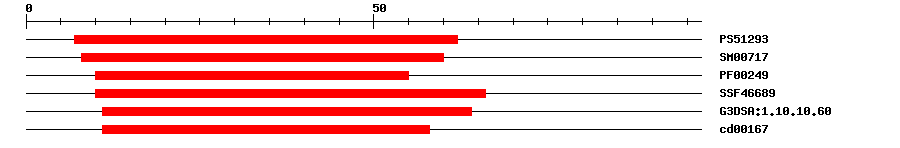

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS512939.659762IPR017884SANT domain
SMARTSM007178.7E-8860IPR001005SANT/Myb domain
PfamPF002493.1E-61055IPR001005SANT/Myb domain
SuperFamilySSF466892.18E-121066IPR009057Homeodomain-like
Gene3DG3DSA:1.10.10.605.2E-61164IPR009057Homeodomain-like
CDDcd001672.56E-61158No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009630Biological Processgravitropism
GO:0009793Biological Processembryo development ending in seed dormancy
GO:0010114Biological Processresponse to red light
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 97 aa     Download sequence    Send to blast
MASCSISASG SWSVKDNKAF EKALAVYDKD TPDRWYNVAH AVGGKTPEEV KRHYELLVQD  60
VKHIESGRVP FPNYKKTTSE STDQEEKRLR NLNLNLQ
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2cjj_A2e-39194192RADIALIS
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the dorsovental asymmetry of flowers. Promotes dorsal identity. {ECO:0000269|PubMed:15790677}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapKHN08900.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Up-regulated by both CYC and DICH. {ECO:0000269|PubMed:15790677, ECO:0000269|PubMed:16236768}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAP0150372e-90AP015037.1 Vigna angularis var. angularis DNA, chromosome 4, almost complete sequence, cultivar: Shumari.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001236080.24e-68MYB transcription factor MYB142
RefseqXP_028217666.14e-68protein RADIALIS-like 3
SwissprotQ58FS33e-39RAD_ANTMA; Transcription factor RADIALIS
TrEMBLA0A0B2PI968e-67A0A0B2PI96_GLYSO; Transcription factor RADIALIS
STRINGGLYMA03G28050.14e-56(Glycine max)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF15434280
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G39250.16e-33RAD-like 1
Publications ? help Back to Top
  1. Corley SB,Carpenter R,Copsey L,Coen E
    Floral asymmetry involves an interplay between TCP and MYB transcription factors in Antirrhinum.
    Proc. Natl. Acad. Sci. U.S.A., 2005. 102(14): p. 5068-73
    [PMID:15790677]
  2. Costa MM,Fox S,Hanna AI,Baxter C,Coen E
    Evolution of regulatory interactions controlling floral asymmetry.
    Development, 2005. 132(22): p. 5093-101
    [PMID:16236768]
  3. Stevenson CE, et al.
    Crystallization and preliminary X-ray analysis of the RAD protein from Antirrhinum majus.
    Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun., 2005. 61(Pt 10): p. 885-8
    [PMID:16511186]
  4. Stevenson CE, et al.
    Crystal structure of the MYB domain of the RAD transcription factor from Antirrhinum majus.
    Proteins, 2006. 65(4): p. 1041-5
    [PMID:17044043]
  5. Qi X, et al.
    Identification of a novel salt tolerance gene in wild soybean by whole-genome sequencing.
    Nat Commun, 2014. 5: p. 4340
    [PMID:25004933]
