Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID KHN28504.1
Organism
Glycine soja
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Glycine; Soja
Family NAC
Protein Properties Length: 189aa    MW: 21956.4 Da    PI: 4.5356
Description NAC family protein
Gene Model
Gene Model ID Type Source Coding Sequence
KHN28504.1genomeTCUHKView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NAM1163.9e-3681271128
         NAM   1 lppGfrFhPtdeelvveyLkkkvegkkleleevikevdiykvePwdLpkkvkaeekewyfFskrdkkyatgkrknratksgyWkatgkdkevlsk.kge 98
                 lppGfrF Ptdeelvv++L++k++  +++  +vi+++++y ++Pw+L+ ++ ae k+wy++s+r         +nr+t +gyW   g +++v+s+ +++
  KHN28504.1   8 LPPGFRFYPTDEELVVHFLQRKANLLPCHP-DVIPDLELYPYDPWELHGRALAEGKQWYYYSRRT--------QNRVTGNGYWMPMGMEEPVVSSsSNK 97
                 79*************************999.99**************97777889*******984........58******************986777 PP

         NAM  99 lvglkktLvfykgrapkgektdWvmheyrl 128
                  vg+kk  vf+ g+ap+g+ t+W+m+eyrl
  KHN28504.1  98 RVGMKKYYVFHLGEAPDGNTTNWIMQEYRL 127
                 8***************************97 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF1019415.49E-485158IPR003441NAC domain
PROSITE profilePS5100544.9838158IPR003441NAC domain
PfamPF023654.0E-229127IPR003441NAC domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 189 aa     Download sequence    Send to blast
MGDNNVNLPP GFRFYPTDEE LVVHFLQRKA NLLPCHPDVI PDLELYPYDP WELHGRALAE  60
GKQWYYYSRR TQNRVTGNGY WMPMGMEEPV VSSSSNKRVG MKKYYVFHLG EAPDGNTTNW  120
IMQEYRLLDS DSSSRSSKRR SQPKPDHNKW VICQVYEQDN DDDGDGTELS CLDEVFLSLD  180
DLEEISLPN

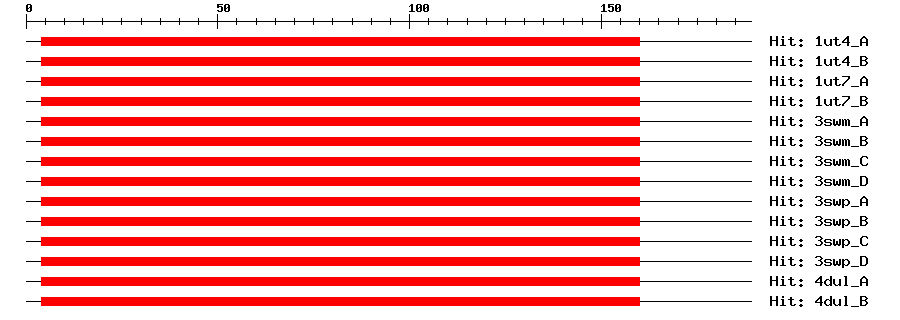

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ut4_A4e-40416013167NO APICAL MERISTEM PROTEIN
1ut4_B4e-40416013167NO APICAL MERISTEM PROTEIN
1ut7_A4e-40416013167NO APICAL MERISTEM PROTEIN
1ut7_B4e-40416013167NO APICAL MERISTEM PROTEIN
3swm_A4e-40416016170NAC domain-containing protein 19
3swm_B4e-40416016170NAC domain-containing protein 19
3swm_C4e-40416016170NAC domain-containing protein 19
3swm_D4e-40416016170NAC domain-containing protein 19
3swp_A4e-40416016170NAC domain-containing protein 19
3swp_B4e-40416016170NAC domain-containing protein 19
3swp_C4e-40416016170NAC domain-containing protein 19
3swp_D4e-40416016170NAC domain-containing protein 19
4dul_A4e-40416013167NAC domain-containing protein 19
4dul_B4e-40416013167NAC domain-containing protein 19
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor that influences tracheary elements and xylem development by negatively regulating secondary cell wall fiber synthesis and programmed cell death. {ECO:0000269|PubMed:18069942, ECO:0000269|PubMed:20458494}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapKHN28504.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankEU6619181e-120EU661918.1 Glycine max NAC domain protein (NAC18) mRNA, partial cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_003524754.11e-140NAC domain-containing protein 104
RefseqXP_028232345.11e-140NAC domain-containing protein 104-like
SwissprotQ8GWK63e-84NC104_ARATH; NAC domain-containing protein 104
TrEMBLA0A0B2R8L11e-139A0A0B2R8L1_GLYSO; NAC domain-containing protein 104
TrEMBLI1K2S01e-139I1K2S0_SOYBN; Uncharacterized protein
STRINGGLYMA05G24910.11e-140(Glycine max)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF17363395
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G64530.18e-84xylem NAC domain 1
Publications ? help Back to Top
  1. Qi X, et al.
    Identification of a novel salt tolerance gene in wild soybean by whole-genome sequencing.
    Nat Commun, 2014. 5: p. 4340
    [PMID:25004933]
  2. Zhao C, et al.
    XYLEM NAC DOMAIN1, an angiosperm NAC transcription factor, inhibits xylem differentiation through conserved motifs that interact with RETINOBLASTOMA-RELATED.
    New Phytol., 2017. 216(1): p. 76-89
    [PMID:28742236]
  3. Tang N, et al.
    Natural variation at XND1 impacts root hydraulics and trade-off for stress responses in Arabidopsis.
    Nat Commun, 2018. 9(1): p. 3884
    [PMID:30250259]
