Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Lj4g3v2573630.1
Organism
Lotus japonicus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Loteae; Lotus
Family MIKC_MADS
Protein Properties Length: 242aa    MW: 27708.5 Da    PI: 8.8207
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Lj4g3v2573630.1genomeKazusaView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.81e-31959151
                     S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
           SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                     krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  Lj4g3v2573630.1  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSNRGKLYEFCS 59
                     79***********************************************96 PP
2K-box100.91.7e-33851741099
            K-box  10 eeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                       ea + s+qqe+ kLk+++e Lqr+qR+l+GedL++L+ keL++Le+qL++slk+iRs++++++l+q+++lq+ke++l+e+n++Lr++le
  Lj4g3v2573630.1  85 REALELSSQQEYLKLKARYEALQRSQRNLMGEDLGPLNSKELESLERQLDSSLKQIRSTRTQFMLDQLSDLQRKEHMLSEANRSLRQRLE 174
                      45556689*******************************************************************************986 PP

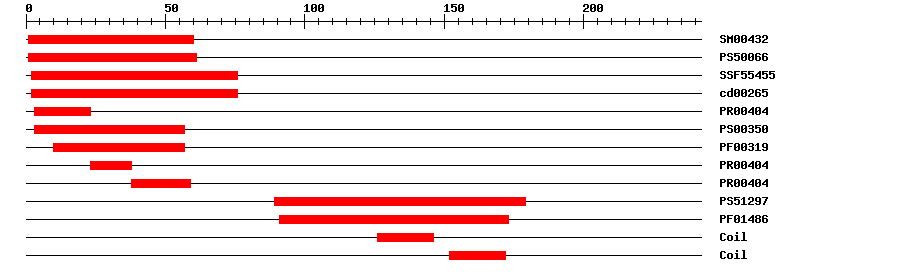

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.3E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.515161IPR002100Transcription factor, MADS-box
SuperFamilySSF554559.55E-34276IPR002100Transcription factor, MADS-box
CDDcd002653.13E-45276No hitNo description
PRINTSPR004048.6E-33323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003192.2E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004048.6E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004048.6E-333859IPR002100Transcription factor, MADS-box
PROSITE profilePS5129715.59389179IPR002487Transcription factor, K-box
PfamPF014866.3E-2791173IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0001708Biological Processcell fate specification
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010093Biological Processspecification of floral organ identity
GO:0048481Biological Processplant ovule development
GO:0048833Biological Processspecification of floral organ number
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 242 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFSN RGKLYEFCSS  60
SSMLKTLERY QKCNYGAPEA NVSTREALEL SSQQEYLKLK ARYEALQRSQ RNLMGEDLGP  120
LNSKELESLE RQLDSSLKQI RSTRTQFMLD QLSDLQRKEH MLSEANRSLR QRLEGYQLNS  180
LQLNPGVEDM GYGRHPAQTH GDAFYHPIEC EPTLQIGYQP DPVSVVTAGP SMNNNYMAGW  240
LP

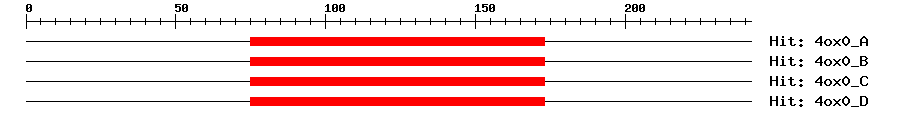

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A3e-47751731101Developmental protein SEPALLATA 3
4ox0_B3e-47751731101Developmental protein SEPALLATA 3
4ox0_C3e-47751731101Developmental protein SEPALLATA 3
4ox0_D3e-47751731101Developmental protein SEPALLATA 3
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Lja.50800.0floral bud| pod
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in flowers and seeds. {ECO:0000269|Ref.1}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00605ChIP-seqTransfer from AT1G24260Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapLj4g3v2573630.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAY7703970.0AY770397.1 Lotus corniculatus var. japonicus MADS box protein SEP3 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020229792.11e-170MADS-box transcription factor 1 isoform X10
SwissprotQ8LLR01e-155MADS4_VITVI; Agamous-like MADS-box protein MADS4
TrEMBLQ533S61e-176Q533S6_LOTJA; MADS box protein SEP3
STRINGGLYMA05G28140.31e-164(Glycine max)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G24260.11e-127MIKC_MADS family protein
Publications ? help Back to Top
  1. Dong ZC, et al.
    Floral patterning in Lotus japonicus.
    Plant Physiol., 2005. 137(4): p. 1272-82
    [PMID:15824286]
  2. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  3. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  4. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
