Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Lus10016680
Organism
Linum usitatissimum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Linaceae; Linum
Family bHLH
Protein Properties Length: 475aa    MW: 53355.8 Da    PI: 5.9764
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Lus10016680genomeBGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH37.83.5e-12266317155
                  CHHHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
          HLH   1 rrrahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                  +r++h ++Er+RR+++N+ +  Lr+l+P +   + ++ + a+i   A+e++++L+
  Lus10016680 266 QRMTHIAVERNRRKQMNEHLRVLRSLMPGS---YVQRGDQASIIGGAIEFVRELE 317
                  79****************************...9*****************9995 PP

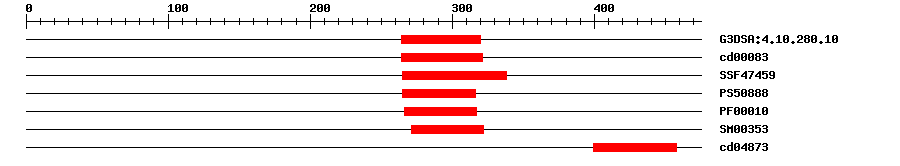

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:4.10.280.101.8E-13264320IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000838.32E-13264321No hitNo description
SuperFamilySSF474591.57E-16265338IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profilePS5088815.428265316IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000101.6E-9266317IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003533.4E-9271322IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd048730.0038399458No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0010377Biological Processguard cell fate commitment
GO:0045597Biological Processpositive regulation of cell differentiation
GO:0045893Biological Processpositive regulation of transcription, DNA-templated
GO:0051782Biological Processnegative regulation of cell division
GO:0005634Cellular Componentnucleus
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 475 aa     Download sequence    Send to blast
MVVSLRSFQL TNCDFSIKPP QAPPPSLSFY ASFTEQLDEE QHHYPPFSGS HHSQSSYHHH  60
HELLMKPPPP RQMLLETTTT TSTNNNMDHL MFNTNNQSSS SSSSIISPGF DKLMSFADVM  120
QFADFGPKLS LNQKMITPPP TNAADPVYFL KFPVLNDWEG DNNDDPQLGM ISLSSPPAPL  180
EAVHPPPPPP MKMQRFDVDV DDTTTNNNNN NNGQLEDHQY HHHHHDENNK NGGGGDDNVV  240
VVEVGGNKNK RKRTRSVKTS EEVESQRMTH IAVERNRRKQ MNEHLRVLRS LMPGSYVQRG  300
DQASIIGGAI EFVRELEQLL QCLESQKRRR LYGDQPPQTQ TQRLVQNNNK NINNDDDEQQ  360
QQLMMMNLES GGLLVEESMA ENKSCLADVE VKLLGFDAMI KVLSRRRPGQ LIKAIAALED  420
LQLTILHTNI TTIEQTVLYS FNVKVASEGT ILTAEEIAGS VQQIFTFIHT NGSM*
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
1266277RMTHIAVERNRR
2326330KRRRL
Functional Description ? help Back to Top
Source Description
UniProtTranscription activator (PubMed:17088607, PubMed:17183265, PubMed:17183267). Together with MYB88 and MYB124, ensures that stomata contain just two guard cells (GCs) by enforcing a single symmetric precursor cell division before stomatal maturity (PubMed:24571519). Together with SPCH and MUTE, regulates the stomata formation. Required to promote differentiation and morphogenesis of stomatal guard cells and to halt proliferative divisions in their immediate precursors. Mediates the formation of stomata (PubMed:17088607, PubMed:17183265, PubMed:17183267). Prevents histone H3K27me3 marks and derepresses stem cell gene expression (PubMed:24654956). {ECO:0000269|PubMed:17088607, ECO:0000269|PubMed:17183265, ECO:0000269|PubMed:17183267, ECO:0000269|PubMed:24571519, ECO:0000269|PubMed:24654956}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapLus10016680
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Inhibited by low relative humidity (LRH) via epigenetic CG methylation, thus leading to a reduced stomatal index. {ECO:0000269|PubMed:22442411}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021641449.11e-132transcription factor FAMA-like isoform X2
RefseqXP_021641450.11e-132transcription factor FAMA-like isoform X2
SwissprotQ56YJ81e-119FAMA_ARATH; Transcription factor FAMA
TrEMBLA0A1Q3BIH91e-134A0A1Q3BIH9_CEPFO; HLH domain-containing protein
STRINGLus100166800.0(Linum usitatissimum)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF104893340
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G24140.12e-90bHLH family protein
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Matos JL, et al.
    Irreversible fate commitment in the Arabidopsis stomatal lineage requires a FAMA and RETINOBLASTOMA-RELATED module.
    Elife, 2015.
    [PMID:25303364]
  3. Chen L, et al.
    NRPB3, the third largest subunit of RNA polymerase II, is essential for stomatal patterning and differentiation in Arabidopsis.
    Development, 2016. 143(9): p. 1600-11
    [PMID:26989174]
  4. Lee JH,Jung JH,Park CM
    Light Inhibits COP1-Mediated Degradation of ICE Transcription Factors to Induce Stomatal Development in Arabidopsis.
    Plant Cell, 2017. 29(11): p. 2817-2830
    [PMID:29070509]
  5. Han X, et al.
    Jasmonate Negatively Regulates Stomatal Development in Arabidopsis Cotyledons.
    Plant Physiol., 2018. 176(4): p. 2871-2885
    [PMID:29496884]
  6. Li X,Yang R,Chen H
    The Arabidopsis thaliana Mediator subunit MED8 regulates plant immunity to Botrytis Cinerea through interacting with the basic helix-loop-helix (bHLH) transcription factor FAMA.
    PLoS ONE, 2018. 13(3): p. e0193458
    [PMID:29513733]
