Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID MDP0000932804
Organism
Malus domestica
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Rosales; Rosaceae; Maloideae; Maleae; Malus
Family MYB
Protein Properties Length: 412aa    MW: 46138.3 Da    PI: 7.8895
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
MDP0000932804genomeGDRView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding58.31.8e-181461148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     +g W++eEde+l+++++++G g+W+++++  g+ R++k+c++rw +yl
    MDP0000932804 14 KGLWSPEEDEKLLNYITKHGHGCWSSVPKLAGLQRCGKSCRLRWINYL 61
                     678*******************************************97 PP
2Myb_DNA-binding45.71.5e-1467110146
                      TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
  Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                      rg+++++E+ l+v++++ lG++ W+ Ia+ ++ gRt++++k+ w++
    MDP0000932804  67 RGPFSQQEENLIVELHAVLGNR-WSQIAAQLP-GRTDNEIKNLWNS 110
                      89********************.*********.*********9986 PP

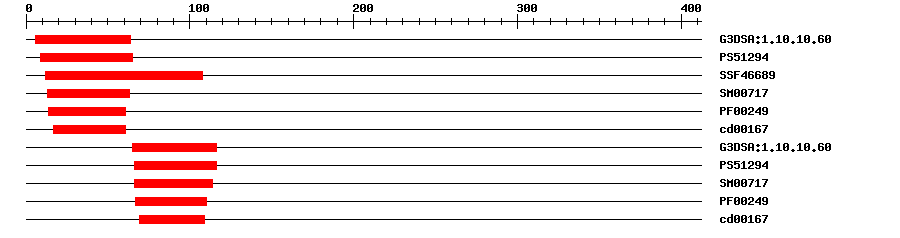

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.601.6E-27664IPR009057Homeodomain-like
PROSITE profilePS5129425.407965IPR017930Myb domain
SuperFamilySSF466897.11E-3012108IPR009057Homeodomain-like
SMARTSM007172.2E-131363IPR001005SANT/Myb domain
PfamPF002493.0E-161461IPR001005SANT/Myb domain
CDDcd001678.95E-121761No hitNo description
Gene3DG3DSA:1.10.10.602.5E-2565116IPR009057Homeodomain-like
PROSITE profilePS5129420.25666116IPR017930Myb domain
SMARTSM007172.0E-1266114IPR001005SANT/Myb domain
PfamPF002494.1E-1367110IPR001005SANT/Myb domain
CDDcd001677.25E-969109No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0001944Biological Processvasculature development
GO:0009733Biological Processresponse to auxin
GO:0010089Biological Processxylem development
GO:0010119Biological Processregulation of stomatal movement
GO:0010214Biological Processseed coat development
GO:0048364Biological Processroot development
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 412 aa     Download sequence    Send to blast
MGRHSCCYKQ KLRKGLWSPE EDEKLLNYIT KHGHGCWSSV PKLAGLQRCG KSCRLRWINY  60
LRPDLKRGPF SQQEENLIVE LHAVLGNRWS QIAAQLPGRT DNEIKNLWNS CIKKKLRQRG  120
IDPNTHKLLS EVLNQNIDTE TNNNNNINLS PTYKSNEKAS EGSNELSLVE AVSXKHPPSA  180
SENRFNPVEV SSTSKLISSK SLTHEGSXSS CRPCDFVGYF SFPHHNNQNN YGSSSDMGLQ  240
AVNQNTTFSF LNQNPEFLQP SMSSSSAIFT APPPPTXVKP SISLPSNNSS TWDSNANNSN  300
SSGGGGYFDN SATFSWWPPE AVKSDDPEEI KWSEHLHNTS FLMGTHQASQ PANYSEMKPE  360
SHSHILSNSL SATYWHHQNH HHHQQHQQAL QASEMYTKDL QRLAVAFGQT L*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1a5j_A4e-27121165108B-MYB
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Mdo.169730.0bud| fruit| root
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00134DAPTransfer from AT1G09540Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_008388418.20.0transcription factor MYB61-like
TrEMBLA0A498IKV00.0A0A498IKV0_MALDO; Uncharacterized protein
STRINGXP_008388418.10.0(Malus domestica)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF108333103
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G09540.12e-95myb domain protein 61
