Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID MELO3C012505P1
Organism
Cucumis melo
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Cucurbitales; Cucurbitaceae; Benincaseae; Cucumis
Family MYB_related
Protein Properties Length: 79aa    MW: 8956.21 Da    PI: 8.9571
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
MELO3C012505P1genomeMELONOMICSView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding26.21.8e-081258347
                     SS-HHHHHHHHHHHHHTTTT...-HHHHHHHHTTTS-HHHHHHHHHHH CS
  Myb_DNA-binding  3 rWTteEdellvdavkqlGgg...tWktIartmgkgRtlkqcksrwqky 47
                     +WT    + + +a + + ++   +W  +++ +g g+t++++k ++q +
   MELO3C012505P1 12 PWTVKQNKAFEKALAVYDKDtpeRWLNVSKAIG-GKTEEEVKRHYQLL 58
                     8********************************.***********975 PP

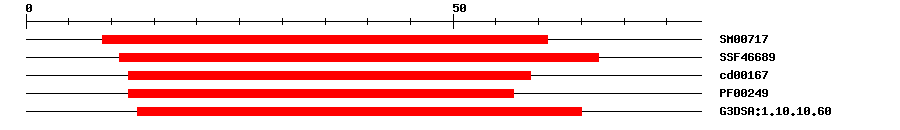

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM007171.0E-6961IPR001005SANT/Myb domain
SuperFamilySSF466892.62E-121167IPR009057Homeodomain-like
CDDcd001676.36E-61259No hitNo description
PfamPF002495.1E-61257IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.607.1E-51365IPR009057Homeodomain-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 79 aa     Download sequence    Send to blast
MASMTAHGPS TPWTVKQNKA FEKALAVYDK DTPERWLNVS KAIGGKTEEE VKRHYQLLVE  60
DVKHIESGEI PFPYRRLT*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2cjj_A4e-32578376RADIALIS
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the dorsovental asymmetry of flowers. Promotes dorsal identity. {ECO:0000269|PubMed:15790677}.
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Up-regulated by both CYC and DICH. {ECO:0000269|PubMed:15790677, ECO:0000269|PubMed:16236768}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankLN6818001e-130LN681800.1 Cucumis melo genomic scaffold, anchoredscaffold00017.
GenBankLN7132551e-130LN713255.1 Cucumis melo genomic chromosome, chr_1.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_022952074.16e-43protein RADIALIS-like 1
RefseqXP_023511408.16e-43protein RADIALIS-like 1
SwissprotQ58FS36e-32RAD_ANTMA; Transcription factor RADIALIS
TrEMBLA0A0A0K3K04e-41A0A0A0K3K0_CUCSA; Uncharacterized protein
STRINGXP_004165879.13e-48(Cucumis sativus)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF15434280
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G75250.24e-32RAD-like 6
Publications ? help Back to Top
  1. Corley SB,Carpenter R,Copsey L,Coen E
    Floral asymmetry involves an interplay between TCP and MYB transcription factors in Antirrhinum.
    Proc. Natl. Acad. Sci. U.S.A., 2005. 102(14): p. 5068-73
    [PMID:15790677]
  2. Costa MM,Fox S,Hanna AI,Baxter C,Coen E
    Evolution of regulatory interactions controlling floral asymmetry.
    Development, 2005. 132(22): p. 5093-101
    [PMID:16236768]
  3. Stevenson CE, et al.
    Crystallization and preliminary X-ray analysis of the RAD protein from Antirrhinum majus.
    Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun., 2005. 61(Pt 10): p. 885-8
    [PMID:16511186]
  4. Stevenson CE, et al.
    Crystal structure of the MYB domain of the RAD transcription factor from Antirrhinum majus.
    Proteins, 2006. 65(4): p. 1041-5
    [PMID:17044043]
