Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID MELO3C025597P1
Organism
Cucumis melo
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Cucurbitales; Cucurbitaceae; Benincaseae; Cucumis
Family SBP
Protein Properties Length: 200aa    MW: 22745.1 Da    PI: 11.6575
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
MELO3C025597P1genomeMELONOMICSView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP133.37.9e-4274150278
                     -SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S--- CS
             SBP   2 CqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkqa 78
                     Cq+++C+adlseak+yhrrhkvCe+hska+ v+v+g++qrfCqqCsrfhel+efDe+krsCrrrLa+hnerrrk++a
  MELO3C025597P1  74 CQAHNCAADLSEAKRYHRRHKVCEFHSKAAIVMVAGIRQRFCQQCSRFHELTEFDEAKRSCRRRLAGHNERRRKNSA 150
                     **************************************************************************976 PP

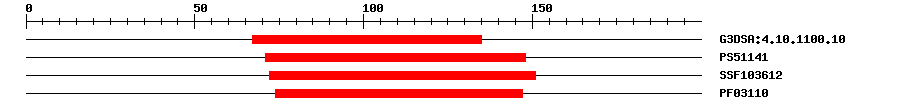

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:4.10.1100.108.0E-3467135IPR004333Transcription factor, SBP-box
PROSITE profilePS5114132.25771148IPR004333Transcription factor, SBP-box
SuperFamilySSF1036121.83E-3872151IPR004333Transcription factor, SBP-box
PfamPF031102.4E-3174147IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0010321Biological Processregulation of vegetative phase change
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 200 aa     Download sequence    Send to blast
MQRALKASII PKIRQWSMTI SNTRRRRRRL VEEEEVAIAM LAMHWVILTM RKGKRGAAVS  60
GRGKSGGSVS SPSCQAHNCA ADLSEAKRYH RRHKVCEFHS KAAIVMVAGI RQRFCQQCSR  120
FHELTEFDEA KRSCRRRLAG HNERRRKNSA ESQGESTSRK SAPQAQSKES HCRQLVEDQR  180
SRIQMAPPGS SGYKHLHIR*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A2e-3665147284squamosa promoter binding protein-like 4
Search in ModeBase
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
12328RRRRRR
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00634PBMTransfer from PK22320.1Download
Motif logo
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156. {ECO:0000269|PubMed:16914499}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankLN6818620.0LN681862.1 Cucumis melo genomic scaffold, anchoredscaffold00081.
GenBankLN7132610.0LN713261.1 Cucumis melo genomic chromosome, chr_7.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_016903072.11e-102PREDICTED: squamosa promoter-binding protein 1-like
SwissprotQ9S7583e-41SPL5_ARATH; Squamosa promoter-binding-like protein 5
TrEMBLA0A1S4E4C71e-100A0A1S4E4C7_CUCME; squamosa promoter-binding protein 1-like
STRINGXP_008463797.11e-101(Cucumis melo)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF53534153
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G53160.25e-42squamosa promoter binding protein-like 4
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  3. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  4. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
