Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID MLOC_18177.1
Organism
Hordeum vulgare
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; BOP clade; Pooideae; Triticodae; Triticeae; Hordeinae; Hordeum
Family MYB
Protein Properties Length: 286aa    MW: 30651.6 Da    PI: 7.5011
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
MLOC_18177.1genomeIBSCView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding59.19.7e-191461148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     rg W++eEde+lv++++ +G g+W++++r  g+ R++k+c++rw +yl
     MLOC_18177.1 14 RGLWSPEEDEKLVKYITAHGHGCWSSVPRQAGLQRCGKSCRLRWINYL 61
                     788*******************************************97 PP
2Myb_DNA-binding54.42.8e-1767110146
                      TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
  Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                      rg++++eE+ l+v++++ lG++ W+ Ia++++ gRt++++k++w++
     MLOC_18177.1  67 RGSFSQEEEALIVELHRVLGNR-WAQIAKHLP-GRTDNEVKNFWNS 110
                      899*******************.*********.***********97 PP

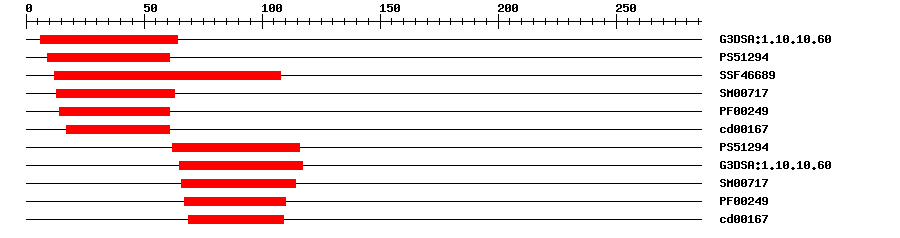

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.606.2E-27664IPR009057Homeodomain-like
PROSITE profilePS5129418.594961IPR017930Myb domain
SuperFamilySSF466891.8E-2912108IPR009057Homeodomain-like
SMARTSM007177.3E-131363IPR001005SANT/Myb domain
PfamPF002491.2E-151461IPR001005SANT/Myb domain
CDDcd001677.62E-121761No hitNo description
PROSITE profilePS5129427.15762116IPR017930Myb domain
Gene3DG3DSA:1.10.10.602.2E-2665117IPR009057Homeodomain-like
SMARTSM007175.0E-1766114IPR001005SANT/Myb domain
PfamPF002491.2E-1567110IPR001005SANT/Myb domain
CDDcd001676.06E-1369109No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009739Biological Processresponse to gibberellin
GO:0009834Biological Processplant-type secondary cell wall biogenesis
GO:0009901Biological Processanther dehiscence
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 286 aa     Download sequence    Send to blast
MGHHSCCNKQ KVRRGLWSPE EDEKLVKYIT AHGHGCWSSV PRQAGLQRCG KSCRLRWINY  60
LRPDLKRGSF SQEEEALIVE LHRVLGNRWA QIAKHLPGRT DNEVKNFWNS TIKKKLISQA  120
VGSLHSDLYY NILDGAGQGI AAAGCASLSV LDNAAQAVAT QCPPSSVHNS AAWLGFASQP  180
LLLPVHGGDL QYAVDGEFIR LCRAADNAYP DNGGPNLLAQ EGAADRSCLP AFAEPKGAGA  240
FAADPGMGPV VDFMDAILGS SSTSAASISS VDSFSANTGM QLHWVP
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1a5j_A2e-31141167108B-MYB
Search in ModeBase
Cis-element ? help Back to Top
SourceLink
PlantRegMapMLOC_18177.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAK3729260.0AK372926.1 Hordeum vulgare subsp. vulgare mRNA for predicted protein, complete cds, clone: NIASHv3016B12.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020185978.11e-170transcription factor MYB86-like isoform X2
TrEMBLM0V4F90.0M0V4F9_HORVV; Uncharacterized protein
STRINGMLOC_18177.20.0(Hordeum vulgare)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G13890.23e-76myb domain protein 26
