Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

MLOC_30102.4

Organism

Hordeum vulgare

Taxonomic ID

4513

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; BOP clade; Pooideae; Triticodae; Triticeae; Hordeinae; Hordeum

Family

bHLH

Protein Properties

Length: 57aa MW: 6826.05 Da PI: 10.1717

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
MLOC_30102.4	genome	IBSC	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	37.5	4.3e-12	8	48	11	55
HHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS HLH 11 rRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55 RR +i +++ +L+el+P+ k + +++L +Av+YIk+Lq MLOC_30102.4 8 VRRTKISERIRKLQELVPNM----EKQTNTSDMLDLAVDYIKELQ 48 6****************6....4679**************9 PP

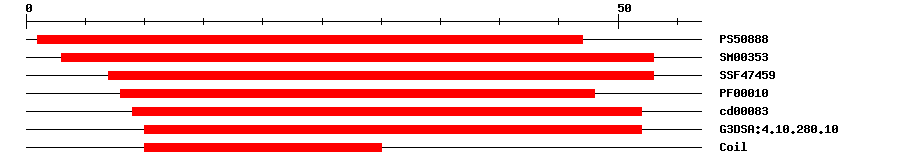

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50888	12.176	1	47	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	8.1E-7	3	53	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF47459	9.55E-14	7	53	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	4.9E-9	8	48	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	3.83E-7	9	52	No hit	No description
Gene3D	G3DSA:4.10.280.10	4.6E-15	10	52	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 57 aa Download sequence Send to blast
RGVRCTQVRR TKISERIRKL QELVPNMEKQ TNTSDMLDLA VDYIKELQMQ VKVCIYR

Cis-element ? help Back to Top
Source	Link
PlantRegMap	MLOC_30102.4

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	AK371504	7e-71	AK371504.1 Hordeum vulgare subsp. vulgare mRNA for predicted protein, complete cds, clone: NIASHv2135O23.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_010238294.1	8e-24	transcription factor bHLH130 isoform X1
Refseq	XP_020177240.1	8e-24	transcription factor bHLH130-like
Swissprot	Q66GR3	2e-20	BH130_ARATH; Transcription factor bHLH130
TrEMBL	A0A287RSA1	4e-27	A0A287RSA1_HORVV; Uncharacterized protein
TrEMBL	A0A453L4M7	1e-24	A0A453L4M7_AEGTS; Uncharacterized protein
STRING	EMT20768	4e-24	(Aegilops tauschii)
STRING	MLOC_30102.2	4e-24	(Hordeum vulgare)

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT2G42280.1	7e-23	bHLH family protein

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281]
