Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID MLOC_5375.2
Organism
Hordeum vulgare
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; BOP clade; Pooideae; Triticodae; Triticeae; Hordeinae; Hordeum
Family MIKC_MADS
Protein Properties Length: 271aa    MW: 30814.7 Da    PI: 9.1758
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
MLOC_5375.2genomeIBSCView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF98.42.8e-314696151
                 S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
       SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                 krien++nrqvtf+kRrng+lKKA+ELSvLCdaeva+++fss+g+lyeys+
  MLOC_5375.2 46 KRIENTTNRQVTFCKRRNGLLKKAYELSVLCDAEVALVVFSSRGRLYEYSN 96
                 79***********************************************95 PP
2K-box92.38.2e-311142114100
        K-box   4 ssgks.leeakaeslqqelakLkkeienLq.reqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                  s++   ++e +a+++qqe++kL+++i++Lq ++ R l+ +++++++l++L+qLe +Lek++ kiR++Knel+++++e++qk+e el+++n +Lr+k+
  MLOC_5375.2 114 SNS-GtVAEVNAQYYQQESSKLRQQISSLQnSNSRSLVRDSVSTMTLRDLKQLEGRLEKGIAKIRARKNELMYAEVEYMQKREMELHNDNIYLRSKVS 210
                  333.25999*********************9899**************************************************************97 PP

        K-box 100 e 100
                  e
  MLOC_5375.2 211 E 211
                  5 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006633.7113898IPR002100Transcription factor, MADS-box
SMARTSM004323.6E-413897IPR002100Transcription factor, MADS-box
CDDcd002656.13E-4539112No hitNo description
SuperFamilySSF554552.09E-3239110IPR002100Transcription factor, MADS-box
PROSITE patternPS0035004094IPR002100Transcription factor, MADS-box
PRINTSPR004042.1E-324060IPR002100Transcription factor, MADS-box
PfamPF003191.2E-264794IPR002100Transcription factor, MADS-box
PRINTSPR004042.1E-326075IPR002100Transcription factor, MADS-box
PRINTSPR004042.1E-327596IPR002100Transcription factor, MADS-box
PfamPF014866.1E-22123209IPR002487Transcription factor, K-box
PROSITE profilePS5129713.699124215IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0048366Biological Processleaf development
GO:0048440Biological Processcarpel development
GO:0048443Biological Processstamen development
GO:0048497Biological Processmaintenance of floral organ identity
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 271 aa     Download sequence    Send to blast
MMSMMADLSC GASGVTVNDH QLTAPAPEES AVAGSEKMGR GRIEIKRIEN TTNRQVTFCK  60
RRNGLLKKAY ELSVLCDAEV ALVVFSSRGR LYEYSNNSVK ATIERYKKAN SDTSNSGTVA  120
EVNAQYYQQE SSKLRQQISS LQNSNSRSLV RDSVSTMTLR DLKQLEGRLE KGIAKIRARK  180
NELMYAEVEY MQKREMELHN DNIYLRSKVS ENERGQQPMN MMASGSTSSE YDHMVAPYDS  240
RNFLQVNMQQ QQHYSQQLQP TALQLGQQYF N

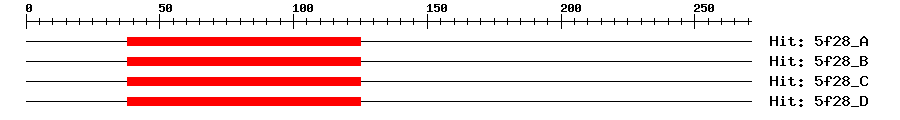

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A2e-2038125191MEF2C
5f28_B2e-2038125191MEF2C
5f28_C2e-2038125191MEF2C
5f28_D2e-2038125191MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in the development of floral organs. Acts as C-class protein in association with MADS58. Involved in the control of lodicule number (whorl 2), stamen specification (whorl 3) and floral meristem determinacy (whorl 4), but not in the regulation of carpel morphogenesis. Plays a more predominant role in controlling lodicule development and in specifying stamen identity than MADS58. {ECO:0000269|PubMed:11828031, ECO:0000269|PubMed:16326928, ECO:0000269|PubMed:9869408}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00609ChIP-seqTransfer from AT4G18960Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapMLOC_5375.2
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAK3745800.0AK374580.1 Hordeum vulgare subsp. vulgare mRNA for predicted protein, complete cds, clone: NIASHv3069K17.
GenBankEU5570500.0EU557050.1 Hordeum vulgare MIKC-type MADS-box transcription factor WM29B mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020153238.10.0MADS-box transcription factor 3-like isoform X1
SwissprotQ407041e-146MADS3_ORYSJ; MADS-box transcription factor 3
TrEMBLB2CZ830.0B2CZ83_HORVU; MIKC-type MADS-box transcription factor WM29B
TrEMBLF2EEK40.0F2EEK4_HORVV; Predicted protein
STRINGMLOC_5375.20.0(Hordeum vulgare)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP64937144
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G18960.11e-102MIKC_MADS family protein
Publications ? help Back to Top
  1. Kyozuka J,Shimamoto K
    Ectopic expression of OsMADS3, a rice ortholog of AGAMOUS, caused a homeotic transformation of lodicules to stamens in transgenic rice plants.
    Plant Cell Physiol., 2002. 43(1): p. 130-5
    [PMID:11828031]
  2. Kikuchi S, et al.
    Collection, mapping, and annotation of over 28,000 cDNA clones from japonica rice.
    Science, 2003. 301(5631): p. 376-9
    [PMID:12869764]
