Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID MLOC_71418.3
Organism
Hordeum vulgare
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; BOP clade; Pooideae; Triticodae; Triticeae; Hordeinae; Hordeum
Family MYB_related
Protein Properties Length: 141aa    MW: 15872.2 Da    PI: 11.9803
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
MLOC_71418.3genomeIBSCView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding551.9e-174390148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     rg+WT++Ed +l+ +++++G  +W++ +r  g+ R++k+c++rw +yl
     MLOC_71418.3 43 RGSWTPQEDMRLIAYIQKHGHANWRALPRQAGLLRCGKSCRLRWINYL 90
                     89******************************99************97 PP

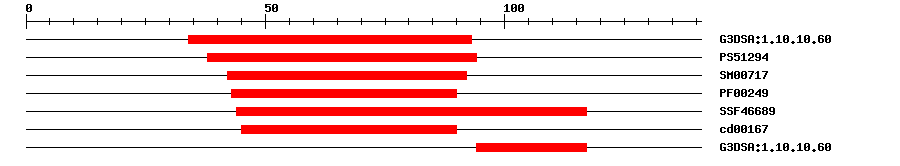

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.603.5E-233493IPR009057Homeodomain-like
PROSITE profilePS5129420.4023894IPR017930Myb domain
SMARTSM007171.4E-124292IPR001005SANT/Myb domain
PfamPF002491.6E-154390IPR001005SANT/Myb domain
SuperFamilySSF466891.72E-2144117IPR009057Homeodomain-like
CDDcd001671.98E-104590No hitNo description
Gene3DG3DSA:1.10.10.604.7E-794117IPR009057Homeodomain-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 141 aa     Download sequence    Send to blast
MLPTASWTRP NRARTSEQTA EWSRAADMGR GRAPCCAKVG LNRGSWTPQE DMRLIAYIQK  60
HGHANWRALP RQAGLLRCGK SCRLRWINYL RPDLRRGNFT ADEEATVIKL HGLLGNKCGP  120
RSRRACPGGR TTRSRTSGTR T
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1h8a_C9e-144111725100MYB TRANSFORMING PROTEIN
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor that regulates positively genes involved in anthocyanin biosynthesis such as A1. {ECO:0000269|PubMed:7920701}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapMLOC_71418.3
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAK1119331e-118AK111933.1 Oryza sativa Japonica Group cDNA clone:001-017-B10, full insert sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_020189024.11e-58myb-related protein Zm1-like
SwissprotP200244e-56MYB1_MAIZE; Myb-related protein Zm1
TrEMBLA0A287UI131e-77A0A287UI13_HORVV; Uncharacterized protein
STRINGMLOC_71418.21e-79(Hordeum vulgare)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G79180.17e-49myb domain protein 63
Publications ? help Back to Top
  1. Franken P,Schrell S,Peterson PA,Saedler H,Wienand U
    Molecular analysis of protein domain function encoded by the myb-homologous maize genes C1, Zm 1 and Zm 38.
    Plant J., 1994. 6(1): p. 21-30
    [PMID:7920701]
