Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

Manes.03G023700.2.p

Organism

Manihot esculenta

Taxonomic ID

3983

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Manihoteae; Manihot

Family

bHLH

Protein Properties

Length: 320aa MW: 34740.4 Da PI: 6.5963

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
Manes.03G023700.2.p	genome	JGI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	12	0.00038	237	275	12	55
HHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS HLH 12 RRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55 R +++ +++ L +l+ + +K + a++L +A+ YI+ Lq Manes.03G023700.2.p 237 RKEKLGDRITSLHQLVSPF-----GKTDTASVLLEAIGYIRFLQ 275 6678889999999999998.....8******************9 PP

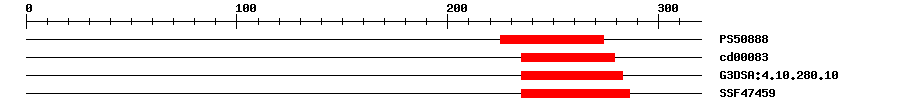

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50888	11.858	225	274	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	1.73E-5	235	279	No hit	No description
Gene3D	G3DSA:4.10.280.10	3.1E-7	235	283	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF47459	4.32E-10	235	286	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 320 aa Download sequence Send to blast
MNRGVLQTSP PLQMAGNPNW WNINNMKPPT HQQTSPFLNP PSFFPQYYIP SASASSPSSS 60 SSSSSSSSSS CSSSSSSSSL ALPSWHDNQD QLPESWSQLL MGGLVDEDDK GNMRHFQAKK 120 MENWEAQILH HQASTTCTVV DVKRENSATS YVYGHANEEF QAAKPSCSQM IPPASSSPMS 180 SVTSFSSNML DFSTHIGDAR HPPSDLSSEC NSTATGGALK KARVQQPSST QSTFKVRKEK 240 LGDRITSLHQ LVSPFGKTDT ASVLLEAIGY IRFLQSQIEA LSSPYLGSGS SNMKQQQQQQ 300 LQSVQGERNC ILPEEPELQ*

Cis-element ? help Back to Top
Source	Link
PlantRegMap	Manes.03G023700.2.p

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_021607870.1	0.0	transcription factor bHLH68-like isoform X2
Swissprot	Q8S3D1	2e-64	BH068_ARATH; Transcription factor bHLH68
TrEMBL	A0A2C9W3W7	0.0	A0A2C9W3W7_MANES; Uncharacterized protein
STRING	cassava4.1_010397m	0.0	(Manihot esculenta)

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT4G29100.1	3e-58	bHLH family protein

Link Out ? help Back to Top
Phytozome	Manes.03G023700.2.p

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Le Hir R, et al. AtbHLH68 transcription factor contributes to the regulation of ABA homeostasis and drought stress tolerance in Arabidopsis thaliana. Physiol Plant, 2017. 160(3): p. 312-327 [PMID:28369972] Ezer D, et al. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol., 2017. 175(2): p. 628-640 [PMID:28864470]
