Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

Manes.03G165600.1.p

Organism

Manihot esculenta

Taxonomic ID

3983

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Manihoteae; Manihot

Family

bHLH

Protein Properties

Length: 219aa MW: 24803 Da PI: 5.8398

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
Manes.03G165600.1.p	genome	JGI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	28.6	2.6e-09	67	115	3	54
HHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 3 rahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 +++ rE+ RR+r+N++f+ L ++l + + + +K +iL A++ + L Manes.03G165600.1.p 67 ATKACREKLRRERLNDRFQDLSSVLEPG---RPARTDKTAILADAIRVLTRL 115 57889********************8...789**********988776 PP

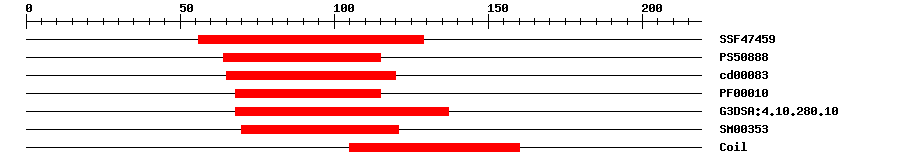

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
SuperFamily	SSF47459	2.88E-12	56	129	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profile	PS50888	11.935	64	115	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	1.60E-6	65	120	No hit	No description
Pfam	PF00010	9.6E-7	68	115	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	5.9E-11	68	137	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	1.5E-7	70	121	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 219 aa Download sequence Send to blast
MDSLEGDCCW DFLDYNFFEE TTTSSDLLWS NNRSGGLDID FSSGGTESQE KQCSRKRGRS 60 DSCTKPATKA CREKLRRERL NDRFQDLSSV LEPGRPARTD KTAILADAIR VLTRLKTEAQ 120 ELKETNENLL EEIKTLKAEK NELREEKLAL KADKERMEQQ LKVMTVPPSG FMPAHPAAYH 180 AGLNKMAAFP NYGLMPMWQL PLAARDTSRD HEYWPPAA*

Cis-element ? help Back to Top
Source	Link
PlantRegMap	Manes.03G165600.1.p

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_021608901.1	1e-162	transcription factor bHLH104-like
Swissprot	Q8L467	2e-73	BH104_ARATH; Transcription factor bHLH104
TrEMBL	A0A2C9WA88	1e-161	A0A2C9WA88_MANES; Uncharacterized protein
STRING	cassava4.1_015883m	1e-137	(Manihot esculenta)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Fabids	OGEF8179	25	37

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT4G14410.2	1e-64	bHLH family protein

Link Out ? help Back to Top
Phytozome	Manes.03G165600.1.p

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Li X,Zhang H,Ai Q,Liang G,Yu D Two bHLH Transcription Factors, bHLH34 and bHLH104, Regulate Iron Homeostasis in Arabidopsis thaliana. Plant Physiol., 2016. 170(4): p. 2478-93 [PMID:26921305] Liang G,Zhang H,Li X,Ai Q,Yu D bHLH transcription factor bHLH115 regulates iron homeostasis in Arabidopsis thaliana. J. Exp. Bot., 2017. 68(7): p. 1743-1755 [PMID:28369511] Wang C,Yao X,Yu D,Liang G Fe-deficiency-induced expression of bHLH104 enhances Fe-deficiency tolerance of Arabidopsis thaliana. Planta, 2017. 246(3): p. 421-431 [PMID:28451750] Ezer D, et al. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol., 2017. 175(2): p. 628-640 [PMID:28864470] Min JH, et al. Arabidopsis Basic Helix-Loop-Helix 34 (bHLH34) Is Involved in Glucose Signaling through Binding to a GAGA Cis-Element. Front Plant Sci, 2017. 8: p. 2100 [PMID:29321786] Min JH, et al. A basic helix-loop-helix 104 (bHLH104) protein functions as a transcriptional repressor for glucose and abscisic acid signaling in Arabidopsis. Plant Physiol. Biochem., 2019. 136: p. 34-42 [PMID:30639920]
