Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

Manes.08G094800.1.p

Organism

Manihot esculenta

Taxonomic ID

3983

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Manihoteae; Manihot

Family

bHLH

Protein Properties

Length: 160aa MW: 17738.9 Da PI: 7.599

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
Manes.08G094800.1.p	genome	JGI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	31.6	3e-10	47	87	9	54
HHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 9 ErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 r RR+ri ++f L++l+P K++ +++Le+A++Y+k L Manes.08G094800.1.p 47 ARERRHRISDRFKILQSLVPGG-----SKMDTVSMLEEAINYVKFL 87 699***************95.....5**************98 PP

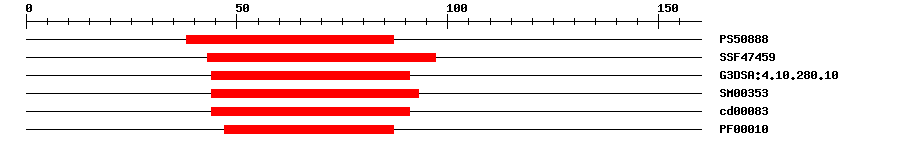

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50888	15.726	38	87	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF47459	4.71E-14	43	97	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	3.6E-12	44	91	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	1.2E-12	44	93	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	7.43E-14	44	91	No hit	No description
Pfam	PF00010	1.0E-7	47	87	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 160 aa Download sequence Send to blast
MDYFSTTNPS SSGSSSVPNK GKEKKKCGKR GNSNGVKLST DPQSVAARER RHRISDRFKI 60 LQSLVPGGSK MDTVSMLEEA INYVKFLKTQ ILLHQTIMNF MDDDPYLYLP AGSLPPQQPS 120 YFDANFADGV LQPPTSLSFP DGFFQGDDEV QHRDPFDKN*

Cis-element ? help Back to Top
Source	Link
PlantRegMap	Manes.08G094800.1.p

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_021619161.1	1e-115	transcription factor bHLH140
Swissprot	Q9M041	2e-29	BH140_ARATH; Transcription factor bHLH140
TrEMBL	A0A2C9VGE9	1e-113	A0A2C9VGE9_MANES; Uncharacterized protein
STRING	cassava4.1_030175m	1e-114	(Manihot esculenta)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Fabids	OGEF7167	28	46

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT5G01310.1	2e-31	APRATAXIN-like

Link Out ? help Back to Top
Phytozome	Manes.08G094800.1.p

Publications ? help Back to Top
Heyndrickx KS,Vandepoele K Systematic identification of functional plant modules through the integration of complementary data sources. Plant Physiol., 2012. 159(3): p. 884-901 [PMID:22589469]
