Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Manes.10G041500.1.p
Organism
Manihot esculenta
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Manihoteae; Manihot
Family NF-YB
Protein Properties Length: 175aa    MW: 18852.1 Da    PI: 5.731
Description NF-YB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Manes.10G041500.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NF-YB186.22.5e-5825122198
                NF-YB   1 vreqdrflPianvsrimkkvlPanakiskdaketvqecvsefisfvtseasdkcqrekrktingddllwalatlGfedyveplkvylkky 90
                          vreqdr+lPian+srimkk+lPan+ki+kdak+tvqecvsefisf+tseasdkcq+ekrktingddllwa+atlGfedy+eplkvyl++y
  Manes.10G041500.1.p  25 VREQDRYLPIANISRIMKKALPANGKIAKDAKDTVQECVSEFISFITSEASDKCQKEKRKTINGDDLLWAMATLGFEDYIEPLKVYLARY 114
                          69**************************************************************************************** PP

                NF-YB  91 relegekk 98
                          re+eg++k
  Manes.10G041500.1.p 115 REMEGDTK 122
                          *****975 PP

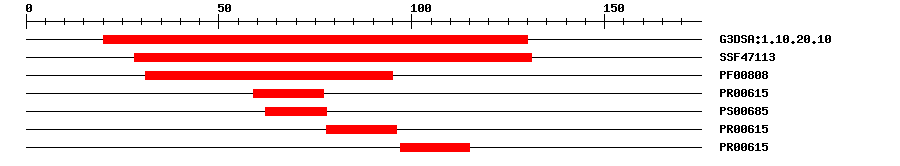

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.20.106.2E-5520130IPR009072Histone-fold
SuperFamilySSF471136.83E-4128131IPR009072Histone-fold
PfamPF008081.8E-283195IPR003958Transcription factor CBF/NF-Y/archaeal histone domain
PRINTSPR006152.7E-215977No hitNo description
PROSITE patternPS0068506278IPR003956Transcription factor, NFYB/HAP3, conserved site
PRINTSPR006152.7E-217896No hitNo description
PRINTSPR006152.7E-2197115No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0043565Molecular Functionsequence-specific DNA binding
GO:0046982Molecular Functionprotein heterodimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 175 aa     Download sequence    Send to blast
MADNPTSPAG GSHESGGEQS PHSGVREQDR YLPIANISRI MKKALPANGK IAKDAKDTVQ  60
ECVSEFISFI TSEASDKCQK EKRKTINGDD LLWAMATLGF EDYIEPLKVY LARYREMEGD  120
TKGSARGGDG SAKRDAIGGL PVQNPQFAIQ GSMNYISSQA QGQHMIVPSM QGNE*

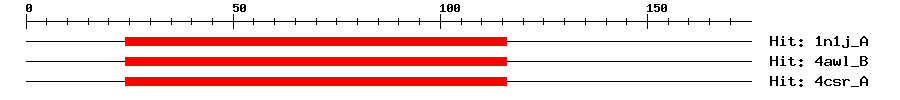

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1n1j_A5e-4824116193NF-YB
4awl_B5e-4824116294NUCLEAR TRANSCRIPTION FACTOR Y SUBUNIT BETA
4csr_A5e-4824116294NUCLEAR TRANSCRIPTION FACTOR Y SUBUNIT BETA
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtComponent of the NF-Y/HAP transcription factor complex. The NF-Y complex stimulates the transcription of various genes by recognizing and binding to a CCAAT motif in promoters.
Cis-element ? help Back to Top
SourceLink
PlantRegMapManes.10G041500.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankKR2322720.0KR232272.1 Vernicia fordii nuclear transcription factor Y subunit B-1 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021626185.11e-128nuclear transcription factor Y subunit B-1-like
SwissprotQ8VYK41e-82NFYB8_ARATH; Nuclear transcription factor Y subunit B-8
TrEMBLA0A2C9V5671e-127A0A2C9V567_MANES; Uncharacterized protein
STRINGcassava4.1_017552m1e-128(Manihot esculenta)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF25453382
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G37060.35e-85nuclear factor Y, subunit B8
Publications ? help Back to Top
  1. Zhao H, et al.
    The Arabidopsis thaliana Nuclear Factor Y Transcription Factors.
    Front Plant Sci, 2016. 7: p. 2045
    [PMID:28119722]
