Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Manes.11G102300.1.p
Organism
Manihot esculenta
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Euphorbiaceae; Crotonoideae; Manihoteae; Manihot
Family MIKC_MADS
Protein Properties Length: 235aa    MW: 27180 Da    PI: 7.9039
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Manes.11G102300.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF84.56.3e-27959151
                         S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
               SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                         krien++ rqvtfskRr+g+lKK +ELSvLCda++ +i+fsstgk+  y+s
  Manes.11G102300.1.p  9 KRIENQTTRQVTFSKRRAGLLKKTHELSVLCDAQIGLIVFSSTGKMCQYCS 59
                         79***********************************************96 PP
2K-box73.84.9e-2573170399
                K-box   3 kssgks.leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeen 91
                          k +g+   e+   e+l  ela L+ke++ +q + R++ Ged++s+ ++eL +Leq+Le+s+ k+R++Knel+ +q+++l++ke++l+een
  Manes.11G102300.1.p  73 KLTGTCiPENDSREQLFSELAVLRKETRRIQLNMRRYTGEDMSSIPFEELGELEQELERSVAKVRDRKNELMQQQLDNLRRKERMLEEEN 162
                          555555555566788999************************************************************************ PP

                K-box  92 kaLrkkle 99
                           +L + ++
  Manes.11G102300.1.p 163 GNLYRWIQ 170
                          ***98776 PP

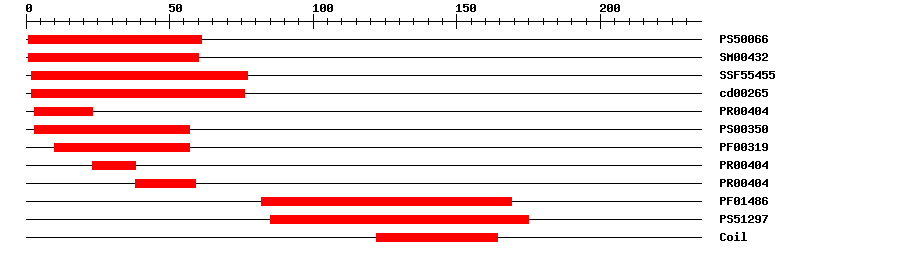

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006630.011161IPR002100Transcription factor, MADS-box
SMARTSM004323.4E-39160IPR002100Transcription factor, MADS-box
SuperFamilySSF554554.71E-31277IPR002100Transcription factor, MADS-box
CDDcd002659.47E-41276No hitNo description
PRINTSPR004042.2E-27323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003191.1E-231057IPR002100Transcription factor, MADS-box
PRINTSPR004042.2E-272338IPR002100Transcription factor, MADS-box
PRINTSPR004042.2E-273859IPR002100Transcription factor, MADS-box
PfamPF014862.4E-2382169IPR002487Transcription factor, K-box
PROSITE profilePS5129714.87385175IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 235 aa     Download sequence    Send to blast
MGRGKIPIKR IENQTTRQVT FSKRRAGLLK KTHELSVLCD AQIGLIVFSS TGKMCQYCSE  60
PLRMEQIIER YQKLTGTCIP ENDSREQLFS ELAVLRKETR RIQLNMRRYT GEDMSSIPFE  120
ELGELEQELE RSVAKVRDRK NELMQQQLDN LRRKERMLEE ENGNLYRWIQ EHRAALEYQQ  180
GTTIEAKAVE HQQVLDQFPF CGEPSSVLQL ATIPSQIHSY HLQLGQPSFH GSGV*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A4e-19171169MEF2C
5f28_B4e-19171169MEF2C
5f28_C4e-19171169MEF2C
5f28_D4e-19171169MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor involved in the developmental regulation of the endothelium and in the accumulation of proanthocyanidins (PAs) or condensed tannins which give the seed its brown pigmentation after oxidation (PubMed:12368498, PubMed:16080001). Necessary for the normal activation of the BANYULS promoter in the endothelium body (PubMed:12368498). Is required, together with AGL11/STK for the maternal control of endothelium formation, which is essential for female gametophyte development and fertilization, and seed formation (PubMed:22176531). Interacts genetically with AGL1/SHP1 and AGL5/SHP2 in a partially antagonistic manner and represses AGL1/SHP1, AGL5/SHP2, and AGL8/FUL during flower development. Is essential for the coordination of cell divisions in ovule, seed coat development and endosperm formation (PubMed:27776173). Mediates the crosstalk between endothelium and nucellus to ensure proper seed formation. Functions redundantly with AGL63/GOA to repress nucellus growth and promote its degeneration. Represses the negative regulator of autophagy and programmed cell death HVA22D in the proximal nucellus (PubMed:27233529). Binds specifically to the CArG box DNA sequence 5'-CC (A/T)6 GG-3' (PubMed:16080001). {ECO:0000269|PubMed:12368498, ECO:0000269|PubMed:16080001, ECO:0000269|PubMed:22176531, ECO:0000269|PubMed:27233529, ECO:0000269|PubMed:27776173}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapManes.11G102300.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021627168.11e-174protein TRANSPARENT TESTA 16-like
SwissprotQ8RYD97e-87TT16_ARATH; Protein TRANSPARENT TESTA 16
TrEMBLA0A2C9V0401e-172A0A2C9V040_MANES; Uncharacterized protein
STRINGcassava4.1_029881m1e-173(Manihot esculenta)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF49352952
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G23260.24e-84MIKC_MADS family protein
Publications ? help Back to Top
  1. Kim K,Jiang K,Teng SL,Feldman LJ,Huang H
    Using biologically interrelated experiments to identify pathway genes in Arabidopsis.
    Bioinformatics, 2012. 28(6): p. 815-22
    [PMID:22271267]
  2. Rhodes DH, et al.
    Genome-wide association study of grain polyphenol concentrations in global sorghum [Sorghum bicolor (L.) Moench] germplasm.
    J. Agric. Food Chem., 2014. 62(45): p. 10916-27
    [PMID:25272193]
  3. Xu W, et al.
    Endosperm and Nucellus Develop Antagonistically in Arabidopsis Seeds.
    Plant Cell, 2016. 28(6): p. 1343-60
    [PMID:27233529]
  4. Ehlers K, et al.
    The MADS Box Genes ABS, SHP1, and SHP2 Are Essential for the Coordination of Cell Divisions in Ovule and Seed Coat Development and for Endosperm Formation in Arabidopsis thaliana.
    PLoS ONE, 2016. 11(10): p. e0165075
    [PMID:27776173]
  5. Coen O, et al.
    Developmental patterning of the sub-epidermal integument cell layer in Arabidopsis seeds.
    Development, 2017. 144(8): p. 1490-1497
    [PMID:28348169]
  6. Xu W, et al.
    TRANSPARENT TESTA 16 and 15 act through different mechanisms to control proanthocyanidin accumulation in Arabidopsis testa.
    J. Exp. Bot., 2017. 68(11): p. 2859-2870
    [PMID:28830101]
  7. Fiume E,Coen O,Xu W,Lepiniec L,Magnani E
    Developmental patterning of sub-epidermal cells in the outer integument of Arabidopsis seeds.
    PLoS ONE, 2017. 12(11): p. e0188148
    [PMID:29141031]
