Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Medtr4g093970.1
Common NameMTR_4g093970
Organism
Medicago truncatula
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Trifolieae; Medicago
Family MIKC_MADS
Protein Properties Length: 240aa    MW: 27825.9 Da    PI: 9.4127
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Medtr4g093970.1genomeMtView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF80.11.5e-253585151
                     S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
           SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                     k+i+n s rqvtfskRr+g++KKA+ELS+LCda++a+++fs t kl+ey+s
  Medtr4g093970.1 35 KKIDNISSRQVTFSKRRKGLFKKAQELSTLCDADIALMVFSATSKLFEYAS 85
                     68***********************************************86 PP
2K-box55.32.9e-191171971696
            K-box  16 slqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrk 96
                      +++ + + L+k++e   re+R+l GedL++L+++eLq+Le  L++sl+++ + K+e++++ i++l++ke el een++L++
  Medtr4g093970.1 117 ESDSNRDTLRKKLEDKSRELRQLNGEDLQELTVQELQKLEVLLKRSLSSVSKIKDEMFMRDIDTLKRKEVELMEENRRLKH 197
                      45566789999***999*************************************************************987 PP

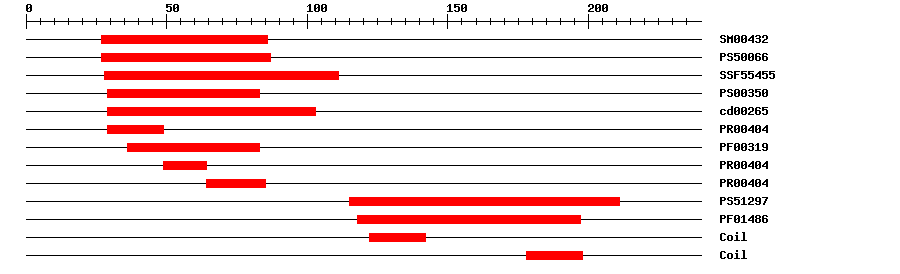

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004326.5E-372786IPR002100Transcription factor, MADS-box
PROSITE profilePS5006628.6092787IPR002100Transcription factor, MADS-box
SuperFamilySSF554553.27E-3028111IPR002100Transcription factor, MADS-box
PROSITE patternPS0035002983IPR002100Transcription factor, MADS-box
CDDcd002658.18E-3829103No hitNo description
PRINTSPR004041.9E-252949IPR002100Transcription factor, MADS-box
PfamPF003197.7E-243683IPR002100Transcription factor, MADS-box
PRINTSPR004041.9E-254964IPR002100Transcription factor, MADS-box
PRINTSPR004041.9E-256485IPR002100Transcription factor, MADS-box
PROSITE profilePS5129712.64115211IPR002487Transcription factor, K-box
PfamPF014868.3E-16118197IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 240 aa     Download sequence    Send to blast
MNWQQRCLPI NPSQQELFRL LLEGNIMTRK KIQIKKIDNI SSRQVTFSKR RKGLFKKAQE  60
LSTLCDADIA LMVFSATSKL FEYASSSMQQ VIERRNGYSA NHRLLDYPST DDQLQVESDS  120
NRDTLRKKLE DKSRELRQLN GEDLQELTVQ ELQKLEVLLK RSLSSVSKIK DEMFMRDIDT  180
LKRKEVELME ENRRLKHVVP DLINVRWQQS LETVISGSSF SLEDDGSDTS LKLGLPFLK*

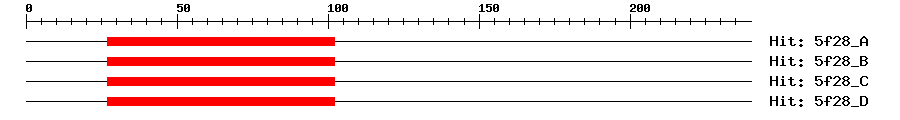

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A8e-2127102176MEF2C
5f28_B8e-2127102176MEF2C
5f28_C8e-2127102176MEF2C
5f28_D8e-2127102176MEF2C
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Mtr.227660.0root
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: During vegetative phase, expressed in the entire shoot apical meristem and in emerging leaf primordia. During floral transition, gradually detectable in the transitional shoot apex and young cauline leaves. Detected in the inflorescence meristem. Present throughout the tunica (superficial layers) of the floral meristem during early stages of flower development. Later disappears prior to emergence of sepal primordia. At later stages of floral development, weakly expressed in the distal parts of stamens and carpels. Then restricted to pollen and the adaxial surface of the gynoecium. {ECO:0000269|PubMed:12451184, ECO:0000269|PubMed:14716314, ECO:0000269|PubMed:19656343}.
UniprotTISSUE SPECIFICITY: Mostly expressed in shoot apical meristems, including floral meristems. Also detected in stems, seedlings, leaves, flowers and siliques, and, to a lower extent, in roots. {ECO:0000269|PubMed:12451184, ECO:0000269|PubMed:12609028, ECO:0000269|PubMed:12881501, ECO:0000269|PubMed:19656343}.
Functional Description ? help Back to Top
Source Description
UniProtTranscription activator that mediates floral transition in response to vernalization. Promotes inflorescence fate in apical meristems. Acts in a dosage-dependent manner. Probably involved in the transduction of RLK-mediated signaling (e.g. IMK3 pathway). Together with AP1 and SVP, controls the identity of the floral meristem and regulates expression of class B, C and E genes. When associated with SOC1, mediates effect of gibberellins on flowering under short-day conditions, and regulates the expression of LEAFY (LFY), which links floral induction and floral development. Confers inflorescence characteristics to floral primordia and early flowering. {ECO:0000269|PubMed:12451184, ECO:0000269|PubMed:12609028, ECO:0000269|PubMed:12881501, ECO:0000269|PubMed:14716314, ECO:0000269|PubMed:16679456, ECO:0000269|PubMed:18339670, ECO:0000269|PubMed:18466303, ECO:0000269|PubMed:18694458, ECO:0000269|PubMed:19656343}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapMedtr4g093970.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Induced by vernalization in a FLC-independent manner. Repressed by the floral homeotic genes AP1, LFY and SEP3 in emerging floral meristems to establish a floral identity and prevent inflorescence fate. Up-regulated at the shoot apex by SOC1. {ECO:0000269|PubMed:12609028, ECO:0000269|PubMed:14716314, ECO:0000269|PubMed:17428825, ECO:0000269|PubMed:18339670, ECO:0000269|PubMed:18694458}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankBT0518640.0BT051864.1 Medicago truncatula clone MTYF5_F6_F7_F81G-B-12 unknown mRNA.
GenBankBT1494770.0BT149477.1 Medicago truncatula clone JCVI-FLMt-11F12 unknown mRNA.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_003608427.11e-173MADS-box protein AGL24 isoform X1
SwissprotO827943e-57AGL24_ARATH; MADS-box protein AGL24
TrEMBLG7JV761e-171G7JV76_MEDTR; MADS-box transcription factor
STRINGAES906241e-172(Medicago truncatula)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF89033106
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G22540.13e-53MIKC_MADS family protein
Publications ? help Back to Top
  1. Young ND, et al.
    The Medicago genome provides insight into the evolution of rhizobial symbioses.
    Nature, 2011. 480(7378): p. 520-4
    [PMID:22089132]
  2. Ramamoorthy R,Phua EE,Lim SH,Tan HT,Kumar PP
    Identification and characterization of RcMADS1, an AGL24 ortholog from the holoparasitic plant Rafflesia cantleyi Solms-Laubach (Rafflesiaceae).
    PLoS ONE, 2013. 8(6): p. e67243
    [PMID:23840638]
  3. Lei HJ, et al.
    Identification and characterization of FaSOC1, a homolog of SUPPRESSOR OF OVEREXPRESSION OF CONSTANS1 from strawberry.
    Gene, 2013. 531(2): p. 158-67
    [PMID:24055423]
  4. Wells CE,Vendramin E,Jimenez Tarodo S,Verde I,Bielenberg DG
    A genome-wide analysis of MADS-box genes in peach [Prunus persica (L.) Batsch].
    BMC Plant Biol., 2015. 15: p. 41
    [PMID:25848674]
  5. Sacharowski SP, et al.
    SWP73 Subunits of Arabidopsis SWI/SNF Chromatin Remodeling Complexes Play Distinct Roles in Leaf and Flower Development.
    Plant Cell, 2015. 27(7): p. 1889-906
    [PMID:26106148]
  6. Sun LM,Zhang JZ,Hu CG
    Characterization and Expression Analysis of PtAGL24, a SHORT VEGETATIVE PHASE/AGAMOUS-LIKE 24 (SVP/AGL24)-Type MADS-Box Gene from Trifoliate Orange (Poncirus trifoliata L. Raf.).
    Front Plant Sci, 2016. 7: p. 823
    [PMID:27375669]
