Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Medtr7g016600.1
Common NameMTR_7g016600
Organism
Medicago truncatula
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Trifolieae; Medicago
Family MIKC_MADS
Protein Properties Length: 250aa    MW: 28850.6 Da    PI: 9.0563
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Medtr7g016600.1genomeMtView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.41.5e-31959151
                     S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
           SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                     krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  Medtr7g016600.1  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSTRGKLYEFCS 59
                     79***********************************************96 PP
2K-box98.87.7e-33821739100
            K-box   9 leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkklee 100
                      + +++ es+++e+ kLk++ enLqr qR+llGedL++Ls k+L+qLe+qL++slk++Rs+K++++l+q+ +lq+ke++l e+n++L+ klee
  Medtr7g016600.1  82 KPAKELESSYREYLKLKQRFENLQRAQRNLLGEDLGPLSSKDLEQLERQLDSSLKQVRSTKTQFMLDQLADLQNKEHMLVEANRSLSIKLEE 173
                      4567899********************************************************************************99986 PP

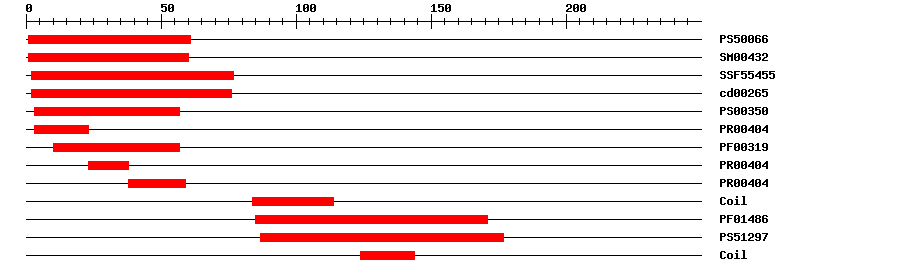

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006633.417161IPR002100Transcription factor, MADS-box
SMARTSM004325.6E-41160IPR002100Transcription factor, MADS-box
SuperFamilySSF554551.23E-33277IPR002100Transcription factor, MADS-box
CDDcd002651.27E-43276No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004041.2E-32323IPR002100Transcription factor, MADS-box
PfamPF003193.9E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004041.2E-322338IPR002100Transcription factor, MADS-box
PRINTSPR004041.2E-323859IPR002100Transcription factor, MADS-box
PfamPF014861.5E-2785171IPR002487Transcription factor, K-box
PROSITE profilePS5129715.33887177IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 250 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFST RGKLYEFCST  60
SNMLKTLDRY QKCSYGAVEV SKPAKELESS YREYLKLKQR FENLQRAQRN LLGEDLGPLS  120
SKDLEQLERQ LDSSLKQVRS TKTQFMLDQL ADLQNKEHML VEANRSLSIK LEEINSRNHY  180
RQSWEASDQS MQYEAQQNAH SQSFFQQLEC NPTLQIGSDY RYNNVASDQI ASTSQAQQQV  240
NGFVPGWML*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A2e-36751711101Developmental protein SEPALLATA 3
4ox0_B2e-36751711101Developmental protein SEPALLATA 3
4ox0_C2e-36751711101Developmental protein SEPALLATA 3
4ox0_D2e-36751711101Developmental protein SEPALLATA 3
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in flowers and seeds. {ECO:0000269|Ref.1}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapMedtr7g016600.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankJX3907170.0JX390717.1 Medicago polyceratia SEPALLATA1 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_003621519.20.0developmental protein SEPALLATA 1 isoform X1
SwissprotQ8LLR21e-138MADS2_VITVI; Agamous-like MADS-box protein MADS2
TrEMBLG7KR140.0G7KR14_MEDTR; MADS-box transcription factor
STRINGAES777371e-179(Medicago truncatula)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF22932178
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G02310.11e-131MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Young ND, et al.
    The Medicago genome provides insight into the evolution of rhizobial symbioses.
    Nature, 2011. 480(7378): p. 520-4
    [PMID:22089132]
  4. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
