Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Medtr8g024690.2
Common NameMTR_8g024690
Organism
Medicago truncatula
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Trifolieae; Medicago
Family MYB_related
Protein Properties Length: 254aa    MW: 28330.6 Da    PI: 5.2298
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Medtr8g024690.2genomeMtView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding25.43.2e-08205233129
                      TSSS-HHHHHHHHHHHHHTTTT-HHHHHH CS
  Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIar 29
                      r+ W++eEd +l  av++ G g+W t a+
  Medtr8g024690.2 205 RKEWSEEEDNQLRAAVQRCGEGNWVTMAK 233
                      789*********************99986 PP

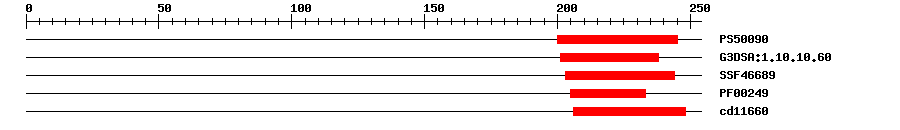

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS500906.644200245IPR017877Myb-like domain
Gene3DG3DSA:1.10.10.603.5E-9201238IPR009057Homeodomain-like
SuperFamilySSF466895.73E-7203244IPR009057Homeodomain-like
PfamPF002492.9E-6205233IPR001005SANT/Myb domain
CDDcd116605.56E-8206248No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 254 aa     Download sequence    Send to blast
MPENNPKKKV TFSENDAASI TQRYDTKTLL TLFQELSNYP DTKFDWNELV NKTSTGISNA  60
REYQMLWRCL AYGYSLPLPQ DFKQGGGEPM DDDSDLDCEL ESFPSVHVEA KSESSACAKV  120
IIASRTLSES TPNSSTIEAP MTVNFPIYRS SRTSKEISQP SNLTEQTSIT FPVTVQRQKL  180
RTVSATDALE TKRTVGGTTA SKRKRKEWSE EEDNQLRAAV QRCGEGNWVT MAKGDSFPIK  240
RSATELSQVV FQP*
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Mtr.22140.0leaf| root
Cis-element ? help Back to Top
SourceLink
PlantRegMapMedtr8g024690.2
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankCU1376401e-122CU137640.12 M.truncatula DNA sequence from clone MTH2-50D4 on chromosome 3, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013444572.10.0uncharacterized protein LOC25500638
TrEMBLA0A072TP210.0A0A072TP21_MEDTR; Myb-like DNA-binding domain protein
STRINGAES731511e-115(Medicago truncatula)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G09710.12e-44MYB_related family protein
Publications ? help Back to Top
  1. Young ND, et al.
    The Medicago genome provides insight into the evolution of rhizobial symbioses.
    Nature, 2011. 480(7378): p. 520-4
    [PMID:22089132]
