Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Migut.N01243.1.p
Common NameLOC105952009, MIMGU_mgv1a017293mg
Organism
Mimulus guttatus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Lamiales; Phrymaceae; Erythranthe
Family MYB_related
Protein Properties Length: 84aa    MW: 9348.36 Da    PI: 5.9058
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Migut.N01243.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding34.74e-111359347
                      SS-HHHHHHHHHHHHHTTTT...-HHHHHHHHTTTS-HHHHHHHHHHH CS
   Myb_DNA-binding  3 rWTteEdellvdavkqlGgg...tWktIartmgkgRtlkqcksrwqky 47
                      +WT+ E + + +a +++ ++   +W+ +ar +g +Rt +++k ++  +
  Migut.N01243.1.p 13 KWTAKENKDFEEALAEFDKDtpeRWSNVARAVG-TRTVEEVKKHYEVL 59
                      8********************************.***********876 PP

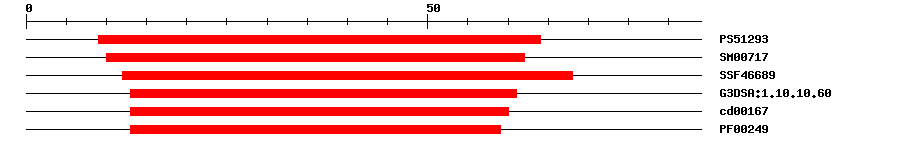

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129311.909964IPR017884SANT domain
SMARTSM007171.5E-91062IPR001005SANT/Myb domain
SuperFamilySSF466898.22E-131268IPR009057Homeodomain-like
Gene3DG3DSA:1.10.10.602.6E-61361IPR009057Homeodomain-like
CDDcd001671.32E-71360No hitNo description
PfamPF002492.8E-91359IPR001005SANT/Myb domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 84 aa     Download sequence    Send to blast
MASSSANRDS GRKWTAKENK DFEEALAEFD KDTPERWSNV ARAVGTRTVE EVKKHYEVLL  60
EDLNKIESGK VPLPNYKTTC GSS*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2cjj_A4e-35182179RADIALIS
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the dorsovental asymmetry of flowers. Promotes dorsal identity. {ECO:0000269|PubMed:15790677}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapMigut.N01243.1.p
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Up-regulated by both CYC and DICH. {ECO:0000269|PubMed:15790677, ECO:0000269|PubMed:16236768}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_012830961.11e-55PREDICTED: transcription factor RADIALIS-like
SwissprotQ58FS36e-35RAD_ANTMA; Transcription factor RADIALIS
TrEMBLA0A022RUK53e-54A0A022RUK5_ERYGU; Uncharacterized protein
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA20224231
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G75250.12e-33RAD-like 6
Publications ? help Back to Top
  1. Corley SB,Carpenter R,Copsey L,Coen E
    Floral asymmetry involves an interplay between TCP and MYB transcription factors in Antirrhinum.
    Proc. Natl. Acad. Sci. U.S.A., 2005. 102(14): p. 5068-73
    [PMID:15790677]
  2. Costa MM,Fox S,Hanna AI,Baxter C,Coen E
    Evolution of regulatory interactions controlling floral asymmetry.
    Development, 2005. 132(22): p. 5093-101
    [PMID:16236768]
  3. Stevenson CE, et al.
    Crystallization and preliminary X-ray analysis of the RAD protein from Antirrhinum majus.
    Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun., 2005. 61(Pt 10): p. 885-8
    [PMID:16511186]
  4. Stevenson CE, et al.
    Crystal structure of the MYB domain of the RAD transcription factor from Antirrhinum majus.
    Proteins, 2006. 65(4): p. 1041-5
    [PMID:17044043]
