Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

NNU_002022-RA

Organism

Nelumbo nucifera

Taxonomic ID

4432

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; stem eudicotyledons; Proteales; Nelumbonaceae; Nelumbo

Family

bHLH

Protein Properties

Length: 257aa MW: 27957.2 Da PI: 9.1691

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
NNU_002022-RA	genome	CAS	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	26	1.6e-08	167	207	9	54
HHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 9 ErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 r RR+ri +++ L++l+P +K++ a++L +A++Y+k L NNU_002022-RA 167 ARHRRERISERIRILQRLVPGG-----TKMDTASMLDEAIHYVKFL 207 699***************87.....8**************98 PP

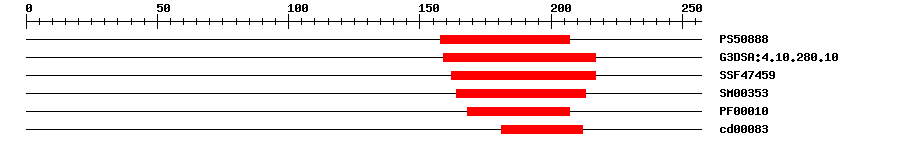

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50888	15.434	158	207	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	1.6E-13	159	217	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF47459	3.14E-14	162	217	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	1.4E-13	164	213	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	7.6E-6	168	207	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	2.08E-6	181	212	No hit	No description

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 257 aa Download sequence Send to blast
MDVDLLKSAT EDQLEMMMAM MQMEKFPEFC GNSPELAELP SSMDLSCGSV GTSSGTIPPT 60 FSNPPITSHA LLNPSARASL MGSGATFQEP MASTLISNTA TGSLINTGEL LGGAGASSPQ 120 KRNSMEAMRE MIFRIAAMQP IHIDPESIKP PKRRNVKISK DPQSVAARHR RERISERIRI 180 LQRLVPGGTK MDTASMLDEA IHYVKFLKTQ VQSLERAAAN RPAGLRFPAA VSDTNYFPLA 240 KAYQQSVPLF SPTQMLS

Functional Description ? help Back to Top
Source	Description
UniProt	Required for the female reproductive tract development and fertility. {ECO:0000269\|PubMed:17855426}.

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: Negatively regulated by ARF3/ETT in the abaxial gynoecium. {ECO:0000269\|PubMed:17855426}.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_010269559.1	0.0	PREDICTED: transcription factor HEC2-like
Swissprot	Q9FHA7	2e-49	HEC1_ARATH; Transcription factor HEC1
TrEMBL	A0A1U8B1W1	0.0	A0A1U8B1W1_NELNU; transcription factor HEC2-like
STRING	XP_010269559.1	0.0	(Nelumbo nucifera)

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT3G50330.1	6e-43	bHLH family protein

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Vercruyssen L, et al. ANGUSTIFOLIA3 binds to SWI/SNF chromatin remodeling complexes to regulate transcription during Arabidopsis leaf development. Plant Cell, 2014. 26(1): p. 210-29 [PMID:24443518] Sparks EE,Benfey PN HEC of a job regulating stem cells. Dev. Cell, 2014. 28(4): p. 349-50 [PMID:24576420] Zhu L, et al. A Negative Feedback Loop between PHYTOCHROME INTERACTING FACTORs and HECATE Proteins Fine-Tunes Photomorphogenesis in Arabidopsis. Plant Cell, 2016. 28(4): p. 855-74 [PMID:27073231] Lozano-Sotomayor P, et al. Altered expression of the bZIP transcription factor DRINK ME affects growth and reproductive development in Arabidopsis thaliana. Plant J., 2016. 88(3): p. 437-451 [PMID:27402171] Boex-Fontvieille E, et al. An Ethylene-Protected Achilles' Heel of Etiolated Seedlings for Arthropod Deterrence. Front Plant Sci, 2016. 7: p. 1246 [PMID:27625656] Gaillochet C, et al. Control of plant cell fate transitions by transcriptional and hormonal signals. Elife, 2018. [PMID:29058667]
