Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID NNU_006199-RA
Organism
Nelumbo nucifera
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; stem eudicotyledons; Proteales; Nelumbonaceae; Nelumbo
Family MIKC_MADS
Protein Properties Length: 233aa    MW: 26545.2 Da    PI: 7.0222
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
NNU_006199-RAgenomeCASView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF90.21.1e-28959151
                   S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
         SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                   k+i+n + rqvtfskRr g++KKAeELS+LCdaeva+iifs tgkl+eyss
  NNU_006199-RA  9 KKIDNATARQVTFSKRRRGLFKKAEELSILCDAEVALIIFSATGKLFEYSS 59
                   68***********************************************96 PP
2K-box30.71.4e-111301873592
          K-box  35 qRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenk 92
                     R++ GedL+ L++++LqqLe+ Le++l+++ ++K   lle+ e+l++++ e+++ +k
  NNU_006199-RA 130 VRRMRGEDLQGLNIEDLQQLEKSLETGLSRVLETKGMELLEENERLKQQMMEMSKGQK 187
                    59**********************************************9999887665 PP

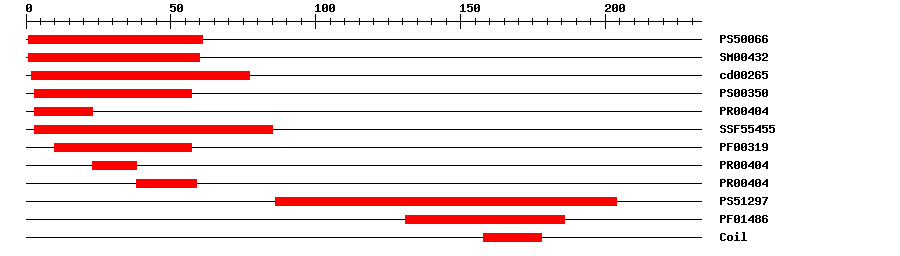

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006630.487161IPR002100Transcription factor, MADS-box
SMARTSM004321.5E-39160IPR002100Transcription factor, MADS-box
CDDcd002651.69E-40277No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004041.3E-27323IPR002100Transcription factor, MADS-box
SuperFamilySSF554551.96E-31385IPR002100Transcription factor, MADS-box
PfamPF003191.6E-251057IPR002100Transcription factor, MADS-box
PRINTSPR004041.3E-272338IPR002100Transcription factor, MADS-box
PRINTSPR004041.3E-273859IPR002100Transcription factor, MADS-box
PROSITE profilePS512978.84586204IPR002487Transcription factor, K-box
PfamPF014863.5E-9131186IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009266Biological Processresponse to temperature stimulus
GO:0009910Biological Processnegative regulation of flower development
GO:0010076Biological Processmaintenance of floral meristem identity
GO:0010582Biological Processfloral meristem determinacy
GO:0045892Biological Processnegative regulation of transcription, DNA-templated
GO:0048438Biological Processfloral whorl development
GO:0005634Cellular Componentnucleus
GO:0000900Molecular Functiontranslation repressor activity, nucleic acid binding
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 233 aa     Download sequence    Send to blast
MAREKIQIKK IDNATARQVT FSKRRRGLFK KAEELSILCD AEVALIIFSA TGKLFEYSSS  60
SMKEILERHN LHSKNLQKLD QPSLELQLEN SNYARLSKEV AEKSHQLRLF ACMKCCREKP  120
STLRDHFVLV RRMRGEDLQG LNIEDLQQLE KSLETGLSRV LETKGMELLE ENERLKQQMM  180
EMSKGQKHVG ADSENIVYEE GQSSDSVTNV CSSSGPPQDY DSSDTSLKLG LPF

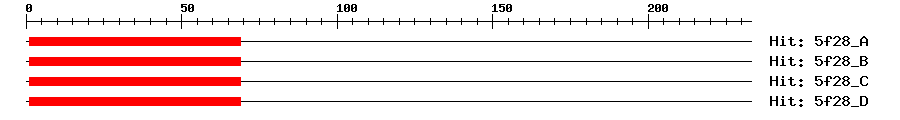

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A1e-20169169MEF2C
5f28_B1e-20169169MEF2C
5f28_C1e-20169169MEF2C
5f28_D1e-20169169MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription repressor that inhibit floral transition in the autonomous flowering pathway, independent of photoperiod and temperature. Acts in a dosage-dependent manner. Together with AGL24 and AP1, controls the identity of the floral meristem and regulates expression of class B, C and E genes. Promotes EFM expression to suppress flowering (PubMed:25132385). {ECO:0000269|PubMed:16679456, ECO:0000269|PubMed:18694458, ECO:0000269|PubMed:19656343, ECO:0000269|PubMed:25132385}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00272DAPTransfer from AT2G22540Download
Motif logo
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Repressed by the floral homeotic genes AP1 and SEP3 in emerging floral meristems. Up-regulated by HUA2. {ECO:0000269|PubMed:15659097, ECO:0000269|PubMed:17428825, ECO:0000269|PubMed:18694458}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010254525.11e-142PREDICTED: MADS-box protein SVP isoform X2
SwissprotQ9FVC11e-100SVP_ARATH; MADS-box protein SVP
TrEMBLA0A1U7ZZ561e-141A0A1U7ZZ56_NELNU; MADS-box protein SVP isoform X2
STRINGXP_010254524.11e-139(Nelumbo nucifera)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G22540.14e-96MIKC_MADS family protein
Publications ? help Back to Top
  1. Ramamoorthy R,Phua EE,Lim SH,Tan HT,Kumar PP
    Identification and characterization of RcMADS1, an AGL24 ortholog from the holoparasitic plant Rafflesia cantleyi Solms-Laubach (Rafflesiaceae).
    PLoS ONE, 2013. 8(6): p. e67243
    [PMID:23840638]
  2. Jaudal M, et al.
    Overexpression of Medicago SVP genes causes floral defects and delayed flowering in Arabidopsis but only affects floral development in Medicago.
    J. Exp. Bot., 2014. 65(2): p. 429-42
    [PMID:24249713]
  3. Müller-Xing R,Clarenz O,Pokorny L,Goodrich J,Schubert D
    Polycomb-Group Proteins and FLOWERING LOCUS T Maintain Commitment to Flowering in Arabidopsis thaliana.
    Plant Cell, 2014. 26(6): p. 2457-2471
    [PMID:24920331]
  4. Hwan Lee J,Sook Chung K,Kim SK,Ahn JH
    Post-translational regulation of SHORT VEGETATIVE PHASE as a major mechanism for thermoregulation of flowering.
    Plant Signal Behav, 2014. 9(4): p. e28193
    [PMID:25764420]
  5. Chen Z, et al.
    Overexpression of AtAP1M3 regulates flowering time and floral development in Arabidopsis and effects key flowering-related genes in poplar.
    Transgenic Res., 2015. 24(4): p. 705-15
    [PMID:25820621]
  6. Wells CE,Vendramin E,Jimenez Tarodo S,Verde I,Bielenberg DG
    A genome-wide analysis of MADS-box genes in peach [Prunus persica (L.) Batsch].
    BMC Plant Biol., 2015. 15: p. 41
    [PMID:25848674]
  7. Müller-Xing R,Schubert D,Goodrich J
    Non-inductive conditions expose the cryptic bract of flower phytomeres in Arabidopsis thaliana.
    Plant Signal Behav, 2015. 10(4): p. e1010868
    [PMID:25924005]
  8. Marín-González E, et al.
    SHORT VEGETATIVE PHASE Up-Regulates TEMPRANILLO2 Floral Repressor at Low Ambient Temperatures.
    Plant Physiol., 2015. 169(2): p. 1214-24
    [PMID:26243615]
  9. Bechtold U, et al.
    Time-Series Transcriptomics Reveals That AGAMOUS-LIKE22 Affects Primary Metabolism and Developmental Processes in Drought-Stressed Arabidopsis.
    Plant Cell, 2016. 28(2): p. 345-66
    [PMID:26842464]
  10. Fernández V,Takahashi Y,Le Gourrierec J,Coupland G
    Photoperiodic and thermosensory pathways interact through CONSTANS to promote flowering at high temperature under short days.
    Plant J., 2016. 86(5): p. 426-40
    [PMID:27117775]
  11. Wilson DC,Kempthorne CJ,Carella P,Liscombe DK,Cameron RK
    Age-Related Resistance in Arabidopsis thaliana Involves the MADS-Domain Transcription Factor SHORT VEGETATIVE PHASE and Direct Action of Salicylic Acid on Pseudomonas syringae.
    Mol. Plant Microbe Interact., 2017. 30(11): p. 919-929
    [PMID:28812948]
  12. Zou YP, et al.
    Adaptation of Arabidopsis thaliana to the Yangtze River basin.
    Genome Biol., 2017. 18(1): p. 239
    [PMID:29284515]
  13. Richter R, et al.
    Floral regulators FLC and SOC1 directly regulate expression of the B3-type transcription factor TARGET OF FLC AND SVP 1 at the Arabidopsis shoot apex via antagonistic chromatin modifications.
    PLoS Genet., 2019. 15(4): p. e1008065
    [PMID:30946745]
