Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

NNU_006256-RA

Organism

Nelumbo nucifera

Taxonomic ID

4432

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; stem eudicotyledons; Proteales; Nelumbonaceae; Nelumbo

Family

M-type_MADS

Protein Properties

Length: 63aa MW: 7118.36 Da PI: 11.5161

Description

M-type_MADS family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
NNU_006256-RA	genome	CAS	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	SRF-TF	90.4	9.1e-29	10	59	2	51
---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS SRF-TF 2 rienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51 ri+n++ rqvtfskRrng+lKKA EL +LCdaev +iifsstgkly+++s NNU_006256-RA 10 RIDNSTSRQVTFSKRRNGLLKKARELAILCDAEVGLIIFSSTGKLYDFAS 59 8***********************************************86 PP

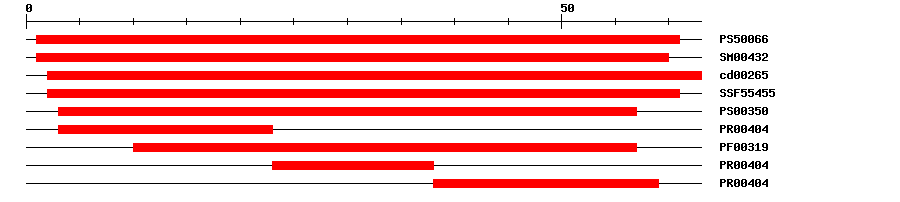

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50066	31.833	1	61	IPR002100	Transcription factor, MADS-box
SMART	SM00432	3.3E-40	1	60	IPR002100	Transcription factor, MADS-box
CDD	cd00265	3.11E-37	2	63	No hit	No description
SuperFamily	SSF55455	1.22E-28	2	61	IPR002100	Transcription factor, MADS-box
PROSITE pattern	PS00350	0	3	57	IPR002100	Transcription factor, MADS-box
PRINTS	PR00404	1.0E-29	3	23	IPR002100	Transcription factor, MADS-box
Pfam	PF00319	1.1E-26	10	57	IPR002100	Transcription factor, MADS-box
PRINTS	PR00404	1.0E-29	23	38	IPR002100	Transcription factor, MADS-box
PRINTS	PR00404	1.0E-29	38	59	IPR002100	Transcription factor, MADS-box

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0003677	Molecular Function	DNA binding
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 63 aa Download sequence Send to blast
MGRGKIVIRR IDNSTSRQVT FSKRRNGLLK KARELAILCD AEVGLIIFSS TGKLYDFAST 60 RCR

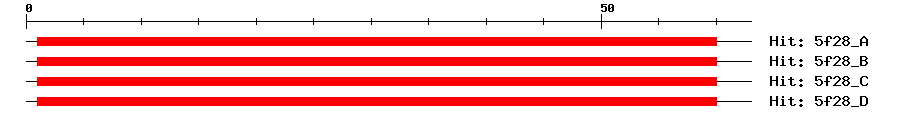

3D Structure ? help Back to Top

PDB ID	Evalue	Query Start	Query End	Hit Start	Hit End	Description
5f28_A	3e-20	1	60	1	60	MEF2C
5f28_B	3e-20	1	60	1	60	MEF2C
5f28_C	3e-20	1	60	1	60	MEF2C
5f28_D	3e-20	1	60	1	60	MEF2C
Search in ModeBase

Functional Description ? help Back to Top
Source	Description
UniProt	Probable transcription factor.
UniProt	Probable transcription factor involved in the regulation of flowering time in long-day photoperiod. Participates in the repression of FT expression and floral transition, by interacting closely with the FLC-SVP pathways (PubMed:24876250). Functions in the satellite meristemoid lineage of stomatal development (PubMed:17704216). {ECO:0000269\|PubMed:17704216, ECO:0000269\|PubMed:24876250}.

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: Repressed by the micro RNA miR824. {ECO:0000269\|PubMed:18579782}.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_026433223.1	8e-36	MADS-box transcription factor 27-like isoform X6
Swissprot	A2RVQ5	8e-31	AGL16_ARATH; Agamous-like MADS-box protein AGL16
Swissprot	Q6EP49	8e-31	MAD27_ORYSJ; MADS-box transcription factor 27
TrEMBL	A0A3S3LZ25	1e-34	A0A3S3LZ25_9MAGN; Agamous-like MADS-box protein AGL21
STRING	evm.model.supercontig_177.14	2e-34	(Carica papaya)

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT3G57230.1	3e-33	AGAMOUS-like 16

Publications ? help Back to Top
Puig J, et al. Analysis of the expression of the AGL17-like clade of MADS-box transcription factors in rice. Gene Expr. Patterns, 2013 Jun-Jul. 13(5-6): p. 160-70 [PMID:23466806] Yang K,Jiang M,Le J A new loss-of-function allele 28y reveals a role of ARGONAUTE1 in limiting asymmetric division of stomatal lineage ground cell. J Integr Plant Biol, 2014. 56(6): p. 539-49 [PMID:24386951] Yu C, et al. The effects of fluctuations in the nutrient supply on the expression of five members of the AGL17 clade of MADS-box genes in rice. PLoS ONE, 2014. 9(8): p. e105597 [PMID:25140876]
