Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Niben101Scf03965g03007.1
Organism
Nicotiana benthamiana
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana
Family MYB
Protein Properties Length: 382aa    MW: 42672.6 Da    PI: 6.9031
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Niben101Scf03965g03007.1genomeBTI-
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding51.72.1e-161461148
                              TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
           Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                              +g+WT+ Ed++l+d++k  G g W+  +++ g++R++k+c++rw++yl
  Niben101Scf03965g03007.1 14 KGAWTPMEDKILIDYIKINGEGKWRNLPKRAGLKRCGKSCRLRWLNYL 61
                              79********************************************97 PP
2Myb_DNA-binding51.52.4e-1667110146
                               TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
           Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                               rg+ T++E++++++++k+lG++ W++Ia +++ gRt++++k++w++
  Niben101Scf03965g03007.1  67 RGNITPDEEDIIIRLHKLLGNR-WSLIAGRLP-GRTDNEIKNYWNT 110
                               7999******************.*********.***********97 PP

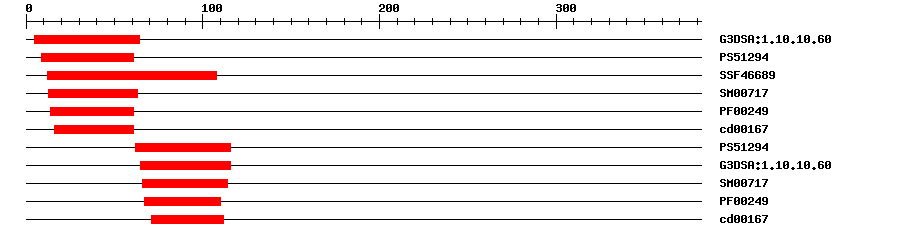

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.609.6E-23564IPR009057Homeodomain-like
PROSITE profilePS5129416.747961IPR017930Myb domain
SuperFamilySSF466894.21E-2812108IPR009057Homeodomain-like
SMARTSM007172.3E-131363IPR001005SANT/Myb domain
PfamPF002491.7E-141461IPR001005SANT/Myb domain
CDDcd001671.19E-101661No hitNo description
PROSITE profilePS5129424.962116IPR017930Myb domain
Gene3DG3DSA:1.10.10.601.9E-2465116IPR009057Homeodomain-like
SMARTSM007172.7E-1566114IPR001005SANT/Myb domain
PfamPF002491.6E-1467110IPR001005SANT/Myb domain
CDDcd001677.83E-1271112No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 382 aa     Download sequence    Send to blast
MGRKPCCSKE GLNKGAWTPM EDKILIDYIK INGEGKWRNL PKRAGLKRCG KSCRLRWLNY  60
LRPDIKRGNI TPDEEDIIIR LHKLLGNRWS LIAGRLPGRT DNEIKNYWNT NIGKKLQQGV  120
PAGQPNHIIC TINRQLPRSC HAKSAKTSPV TQLNKNNQEH TVPQDSQYLQ TDAGIGGSSS  180
SSSPCLVVRT KAIRCTKVFI SPPPTSSSVA EPQYVDQSHN EITQRASSHS VFPPCTRNPA  240
EFLRFHVDNS ILDNDNDDKA MAEDLAIQNA NTIVASSSSS SSLSVSSFCE QQQPASESTP  300
TFSGELENYN FNFMFGFDMD DPFLSELLNA PDICENLENT TTVGDSCTKN EKERSYFPSN  360
YSSFAEETQH NDLELWINGF SS
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1a5j_A8e-26121165108B-MYB
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtControls the expression of genes involved in anthocyanin biosynthesis. Regulates the expression of at least 3 structural genes: chalcone synthase, dihydroflavonol reductase and flavonol O(3) glucosyltransferase. C1 acts as a trans-acting factor.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_016448289.10.0PREDICTED: myb-related protein 330-like
SwissprotP102909e-60MYBC_MAIZE; Anthocyanin regulatory C1 protein
TrEMBLA0A1S3Y8F80.0A0A1S3Y8F8_TOBAC; myb-related protein 330-like
STRINGXP_009602508.10.0(Nicotiana tomentosiformis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA12242154
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G22640.13e-61myb domain protein 3
Publications ? help Back to Top
  1. Chen B,Wang X,Hu Y,Wang Y,Lin Z
    Ectopic expression of a c1-I allele from maize inhibits pigment formation in the flower of transgenic tobacco.
    Mol. Biotechnol., 2004. 26(3): p. 187-92
    [PMID:15004287]
  2. Paz-Ares J,Ghosal D,Saedler H
    Molecular analysis of the C1-I allele from Zea mays: a dominant mutant of the regulatory C1 locus.
    EMBO J., 1990. 9(2): p. 315-21
    [PMID:2303027]
  3. Cone KC,Burr FA,Burr B
    Molecular analysis of the maize anthocyanin regulatory locus C1.
    Proc. Natl. Acad. Sci. U.S.A., 1986. 83(24): p. 9631-5
    [PMID:3025847]
  4. Paz-Ares J,Ghosal D,Wienand U,Peterson PA,Saedler H
    The regulatory c1 locus of Zea mays encodes a protein with homology to myb proto-oncogene products and with structural similarities to transcriptional activators.
    EMBO J., 1987. 6(12): p. 3553-8
    [PMID:3428265]
  5. Scheffler B, et al.
    Molecular analysis of C1 alleles in Zea mays defines regions involved in the expression of this regulatory gene.
    Mol. Gen. Genet., 1994. 242(1): p. 40-8
    [PMID:7904044]
  6. Franken P,Schrell S,Peterson PA,Saedler H,Wienand U
    Molecular analysis of protein domain function encoded by the myb-homologous maize genes C1, Zm 1 and Zm 38.
    Plant J., 1994. 6(1): p. 21-30
    [PMID:7920701]
  7. Singer T,Gierl A,Peterson PA
    Three new dominant C1 suppressor alleles in Zea mays.
    Genet. Res., 1998. 71(2): p. 127-32
    [PMID:9717435]
