Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID PGSC0003DMP400016860
Common NameLOC102604776
Organism
Solanum tuberosum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Solanoideae; Solaneae; Solanum
Family B3
Protein Properties Length: 159aa    MW: 17824.5 Da    PI: 9.922
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
PGSC0003DMP400016860genomePGSCView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B349.29.8e-1657139589
                           -..-HHHHTT-EE--HHH.HTT---..--SEEEEEETTS-EEEEEE..EEETTE.EEE-TTHHHHHHHHT--TT-EEEEEE-SSSE CS
                    B3   5 ltpsdvlksgrlvlpkkfaeehggkkeesktltledesgrsWevkliyrkksgr.yvltkGWkeFvkangLkegDfvvFkldgrse 89
                            +++++  ++ l++p  fa+++g   ++ ++++l+de+ rsW v+l     s+  + +  GW++F +an++++gD+  F+l+++++
  PGSC0003DMP400016860  57 IIKPYSIFKHFLYIPLAFAKSNGWM-NRRFEMILMDEQQRSWPVRL--GPVSDDhIGIHIGWQKFKEANDVQVGDIYRFELINNEK 139
                           45677777788***********654.4679****************..55555548899*********************998654 PP

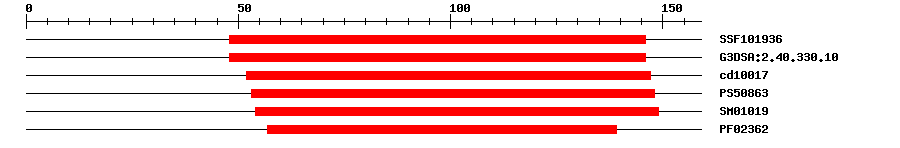

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF1019366.47E-1948146IPR015300DNA-binding pseudobarrel domain
Gene3DG3DSA:2.40.330.102.3E-1948146IPR015300DNA-binding pseudobarrel domain
CDDcd100172.06E-1752147No hitNo description
PROSITE profilePS5086312.13953148IPR003340B3 DNA binding domain
SMARTSM010194.6E-1254149IPR003340B3 DNA binding domain
PfamPF023622.2E-1457139IPR003340B3 DNA binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0009793Biological Processembryo development ending in seed dormancy
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 159 aa     Download sequence    Send to blast
MKGSASPQPE GKMVNLDAKS VSTEATGVKI KTSYVTAPKV LPASISANDA SPHFISIIKP  60
YSIFKHFLYI PLAFAKSNGW MNRRFEMILM DEQQRSWPVR LGPVSDDHIG IHIGWQKFKE  120
ANDVQVGDIY RFELINNEKI PVAYFHRIYS GKDAKQSP*
Cis-element ? help Back to Top
SourceLink
PlantRegMapPGSC0003DMP400016860
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankHG9754471e-113HG975447.1 Solanum pennellii chromosome ch08, complete genome.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006357038.11e-111PREDICTED: B3 domain-containing protein REM14-like isoform X4
TrEMBLM1AKH11e-114M1AKH1_SOLTU; Uncharacterized protein
TrEMBLM1AKH21e-109M1AKH2_SOLTU; Uncharacterized protein
STRINGPGSC0003DMT4000246731e-110(Solanum tuberosum)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G24700.11e-12B3 family protein
Publications ? help Back to Top
  1. Xu X, et al.
    Genome sequence and analysis of the tuber crop potato.
    Nature, 2011. 475(7355): p. 189-95
    [PMID:21743474]
