Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Peinf101Scf00175g12011.1
Organism
Petunia inflata
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Petunioideae; Petunia; Petunia integrifolia
Family MIKC_MADS
Protein Properties Length: 253aa    MW: 28682.7 Da    PI: 9.1888
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Peinf101Scf00175g12011.1genomeSGNView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.99.7e-32957149
                              S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEE CS
                    SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyey 49
                              krienk+nrqvtfskRrng+lKKA+ELSvLCdaeva+iifss+gklye+
  Peinf101Scf00175g12011.1  9 KRIENKINRQVTFSKRRNGLLKKAYELSVLCDAEVALIIFSSRGKLYEF 57
                              79**********************************************9 PP
2K-box102.74.9e-3480169998
                     K-box   9 leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenka 93
                                 e++++s++qe++kLk + e Lqr+qRhllGedL++Ls+keLq+Le+qLe +l + R++K+++++eq+eel++ke+ l + nk+
  Peinf101Scf00175g12011.1  80 CGERETQSWYQEVSKLKGKFEALQRTQRHLLGEDLGPLSVKELQNLEKQLEGALAQARQRKTQIMMEQMEELRRKERHLGDVNKQ 164
                               67899******************************************************************************** PP

                     K-box  94 Lrkkl 98
                               L+ k+
  Peinf101Scf00175g12011.1 165 LKVKV 169
                               *9886 PP

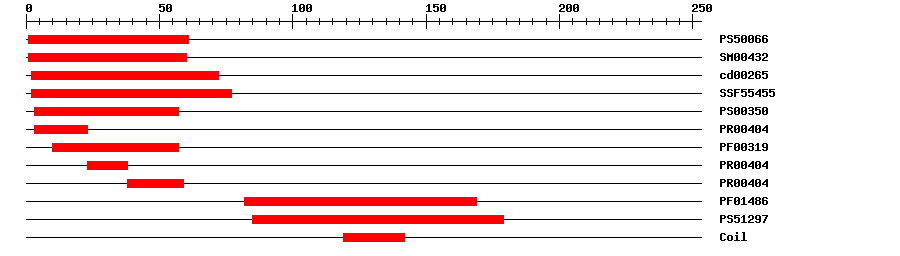

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006633.319161IPR002100Transcription factor, MADS-box
SMARTSM004327.7E-41160IPR002100Transcription factor, MADS-box
CDDcd002655.45E-44272No hitNo description
SuperFamilySSF554551.16E-32277IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-32323IPR002100Transcription factor, MADS-box
PfamPF003193.1E-271057IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-322338IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-323859IPR002100Transcription factor, MADS-box
PfamPF014862.2E-3082169IPR002487Transcription factor, K-box
PROSITE profilePS5129716.67785179IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009553Biological Processembryo sac development
GO:0009911Biological Processpositive regulation of flower development
GO:0010094Biological Processspecification of carpel identity
GO:0010228Biological Processvegetative to reproductive phase transition of meristem
GO:0010582Biological Processfloral meristem determinacy
GO:0045893Biological Processpositive regulation of transcription, DNA-templated
GO:0048455Biological Processstamen formation
GO:0048459Biological Processfloral whorl structural organization
GO:0048509Biological Processregulation of meristem development
GO:0048833Biological Processspecification of floral organ number
GO:0080060Biological Processintegument development
GO:0080112Biological Processseed growth
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 253 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FSKRRNGLLK KAYELSVLCD AEVALIIFSS RGKLYEFGNA  60
GITKTLERYQ RCCLNPQDNC GERETQSWYQ EVSKLKGKFE ALQRTQRHLL GEDLGPLSVK  120
ELQNLEKQLE GALAQARQRK TQIMMEQMEE LRRKERHLGD VNKQLKVKVS LELSSLEAEG  180
QAGLNRALPF FWSSHASEAG NSNFPVHHSQ SNPMDCGPDP VLHIGYHHYM AADGPSGSRS  240
MAVETNIMQG WGL

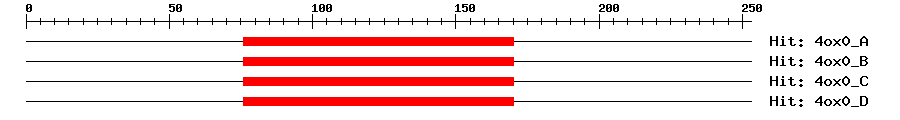

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A2e-23761704102Developmental protein SEPALLATA 3
4ox0_B2e-23761704102Developmental protein SEPALLATA 3
4ox0_C2e-23761704102Developmental protein SEPALLATA 3
4ox0_D2e-23761704102Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00315DAPTransfer from AT2G45650Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAB0310350.0AB031035.1 Petunia x hybrida pMADS4 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_016502910.11e-162PREDICTED: MADS-box transcription factor 6-like
SwissprotQ8LLR11e-141MADS3_VITVI; Agamous-like MADS-box protein MADS3
TrEMBLQ9MB910.0Q9MB91_PETHY; PMADS4 protein
STRINGXP_009588019.11e-160(Nicotiana tomentosiformis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA4024625
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G45650.11e-101AGAMOUS-like 6
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
