Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Peinf101Scf03556g00033.1
Organism
Petunia inflata
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Petunioideae; Petunia; Petunia integrifolia
Family HSF
Protein Properties Length: 249aa    MW: 28913.5 Da    PI: 7.1484
Description HSF family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Peinf101Scf03556g00033.1genomeSGNView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HSF_DNA-bind111.36.6e-35291202102
                               HHHHHHHHHCTGGGTTTSEESSSSSEEEES-HHHHHHHTHHHHSTT--HHHHHHHHHHTTEEE---SSBTTTTXTTSEEEEESXX CS
              HSF_DNA-bind   2 FlkklyeiledeelkeliswsengnsfvvldeeefakkvLpkyFkhsnfaSFvRQLnmYgFkkvkdeekkskskekiweFkhksF 86
                               Fl k+y ++ed+++++++sw+++g++fvv+++ efa+++Lp+ Fkhsnf+SFvRQLn+YgF+kv +++         weF++++F
  Peinf101Scf03556g00033.1  29 FLLKTYMLVEDPATDDVVSWNADGTAFVVWQPAEFARDLLPTLFKHSNFSSFVRQLNTYGFRKVATSR---------WEFSNDKF 104
                               9****************************************************************999.........******** PP

                               XXXXXXXXXXXXXXXX CS
              HSF_DNA-bind  87 kkgkkellekikrkks 102
                               kkg+k+ll++i+r+k
  Peinf101Scf03556g00033.1 105 KKGEKDLLCDIRRRKA 120
                               *************985 PP

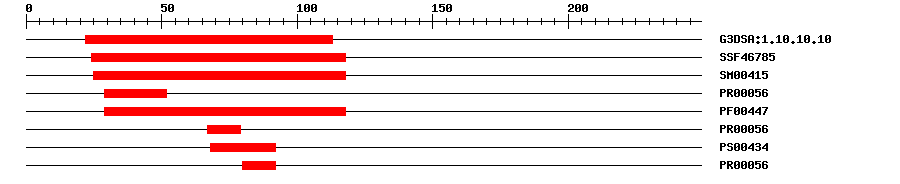

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.101.2E-3622113IPR011991Winged helix-turn-helix DNA-binding domain
SuperFamilySSF467854.9E-3324118IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM004151.0E-5325118IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.3E-182952IPR000232Heat shock factor (HSF)-type, DNA-binding
PfamPF004471.4E-3129118IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.3E-186779IPR000232Heat shock factor (HSF)-type, DNA-binding
PROSITE patternPS0043406892IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.3E-188092IPR000232Heat shock factor (HSF)-type, DNA-binding
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0046686Biological Processresponse to cadmium ion
GO:0005634Cellular Componentnucleus
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0043565Molecular Functionsequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 249 aa     Download sequence    Send to blast
MMMELVEEEQ SSENKSLLEY VRKSSPSPFL LKTYMLVEDP ATDDVVSWNA DGTAFVVWQP  60
AEFARDLLPT LFKHSNFSSF VRQLNTYGFR KVATSRWEFS NDKFKKGEKD LLCDIRRRKA  120
WTNRQQPNNN SNNNNGQNQC VNSKKETDED QRSSSTSSSS EYSSLVDENK RLKMENGVLS  180
SELSVMKNKC KELIDIVTMF AKNPEKEKQQ DERPMLFGVR LEVQEEMERK RKRAEITETA  240
SVFLSQLCK

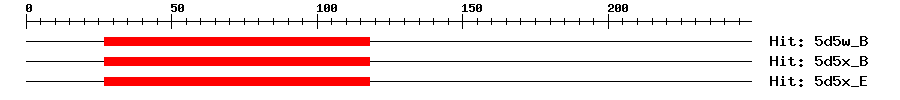

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5d5w_B5e-21271182104Putative transcription factor
5d5x_B5e-21271182104Putative transcription factor
5d5x_E5e-21271182104Putative transcription factor
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional regulator that specifically binds DNA sequence 5'-AGAAnnTTCT-3' known as heat shock promoter elements (HSE).
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00305DAPTransfer from AT2G41690Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ5386071e-69AJ538607.1 Nicotiana tabacum cDNA-AFLP-fragment BC3-M41-017.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009617028.11e-150PREDICTED: heat stress transcription factor B-3
SwissprotO222308e-68HSFB3_ARATH; Heat stress transcription factor B-3
TrEMBLA0A1S4AR321e-148A0A1S4AR32_TOBAC; heat stress transcription factor B-3-like
STRINGXP_009617028.11e-149(Nicotiana tomentosiformis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA44232241
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G41690.11e-62heat shock transcription factor B3
