Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Pgl016370
Organism
Picea glauca
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Acrogymnospermae; Pinidae; Pinales; Pinaceae; Picea
Family MYB_related
Protein Properties Length: 88aa    MW: 9767.71 Da    PI: 6.8021
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
gnl|UG|Pgl#S55337910PU_unrefUnigeneView CDS
gnl|UG|Pgl#S55338644PU_unrefUnigeneView CDS
PUT-175a-Picea_glauca-4055PU_refplantGDBView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding26.81.2e-082163444
                     S-HHHHHHHHHHHHHTTTT...-HHHHHHHHTTTS-HHHHHHHH CS
  Myb_DNA-binding  4 WTteEdellvdavkqlGgg...tWktIartmgkgRtlkqcksrw 44
                     WT +  +++ +a + + ++   +W+ +a+++  g++++++k ++
        Pgl016370 21 WTSQQNKQFEKALAIYDNDtpdRWHNVASMVT-GKSPEEVKRHY 63
                     *******************************9.**********9 PP

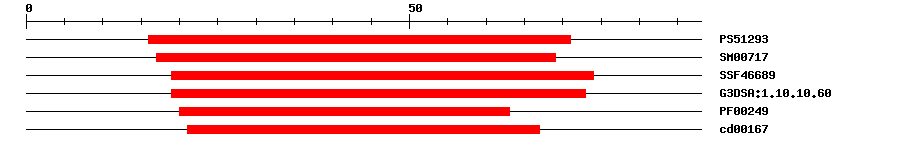

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS512939.5121671IPR017884SANT domain
SMARTSM007171.3E-71769IPR001005SANT/Myb domain
SuperFamilySSF466897.48E-131974IPR009057Homeodomain-like
Gene3DG3DSA:1.10.10.605.4E-61973IPR009057Homeodomain-like
PfamPF002499.6E-72063IPR001005SANT/Myb domain
CDDcd001675.19E-72167No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 88 aa     Download sequence    Send to blast
MAGQPASSSG RPSSSNTGTH WTSQQNKQFE KALAIYDNDT PDRWHNVASM VTGKSPEEVK  60
RHYEILLEDL NSIEEGKVPF PKYKSSGS
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2cjj_A4e-321387377RADIALIS
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Pgl.256731e-150needle
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Early expressed at stage two (plastochrons 7 and 8), when the floral meristem comprised a loaf-shaped bulge of cells. Expression was in the dorsal region of the floral meristem. At stage four, when sepal primordia had emerged around the meristem dome, expression could be seen in the dorsal sepal primordium. At stage five, expressed in emerging dorsal primordia of whorls two and three. In older flower buds (stages seven and eight), expression was found mainly in the dorsal petals and staminode. {ECO:0000269|PubMed:15790677}.
UniprotTISSUE SPECIFICITY: Specifically expressed in the dorsal region of developing flowers. {ECO:0000269|PubMed:15790677}.
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the dorsovental asymmetry of flowers. Promotes dorsal identity. {ECO:0000269|PubMed:15790677}.
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Up-regulated by both CYC and DICH. {ECO:0000269|PubMed:15790677, ECO:0000269|PubMed:16236768}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021680636.11e-35protein RADIALIS-like 3
SwissprotQ58FS37e-32RAD_ANTMA; Transcription factor RADIALIS
TrEMBLD5ADC12e-35D5ADC1_PICSI; Uncharacterized protein
STRINGXP_010690880.11e-32(Beta vulgaris)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G39250.14e-33RAD-like 1
Publications ? help Back to Top
  1. Corley SB,Carpenter R,Copsey L,Coen E
    Floral asymmetry involves an interplay between TCP and MYB transcription factors in Antirrhinum.
    Proc. Natl. Acad. Sci. U.S.A., 2005. 102(14): p. 5068-73
    [PMID:15790677]
  2. Costa MM,Fox S,Hanna AI,Baxter C,Coen E
    Evolution of regulatory interactions controlling floral asymmetry.
    Development, 2005. 132(22): p. 5093-101
    [PMID:16236768]
  3. Stevenson CE, et al.
    Crystallization and preliminary X-ray analysis of the RAD protein from Antirrhinum majus.
    Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun., 2005. 61(Pt 10): p. 885-8
    [PMID:16511186]
  4. Stevenson CE, et al.
    Crystal structure of the MYB domain of the RAD transcription factor from Antirrhinum majus.
    Proteins, 2006. 65(4): p. 1041-5
    [PMID:17044043]
