Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Phvul.001G161000.1
Common NamePHAVU_001G161000g
Organism
Phaseolus vulgaris
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Phaseolus
Family MYB
Protein Properties Length: 293aa    MW: 33186.7 Da    PI: 4.9897
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Phvul.001G161000.1genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding52.41.3e-161461148
                        TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
     Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                        rg+WT+eEd++l+ +++ +G  +W++ ++  g+ R++k+c++rw +yl
  Phvul.001G161000.1 14 RGPWTQEEDQILITYINTYGHANWRSLPKLAGLLRCGKSCRLRWINYL 61
                        89******************************99************97 PP
2Myb_DNA-binding49.87.8e-1667112148
                         TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
     Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                         rg++T eE++ ++ ++++lG++ W++Ia++++ gRt++++k+ w+++l
  Phvul.001G161000.1  67 RGNFTREEEDAIITLHEMLGNR-WSAIAARLP-GRTDNEIKNVWHTHL 112
                         89********************.*********.************986 PP

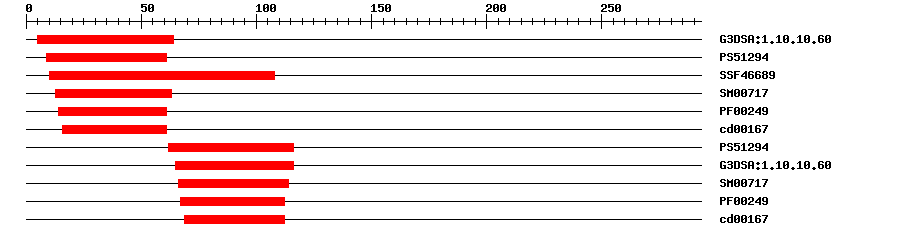

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.601.2E-24564IPR009057Homeodomain-like
PROSITE profilePS5129416.231961IPR017930Myb domain
SuperFamilySSF466896.53E-3010108IPR009057Homeodomain-like
SMARTSM007179.0E-141363IPR001005SANT/Myb domain
PfamPF002494.0E-151461IPR001005SANT/Myb domain
CDDcd001671.22E-101661No hitNo description
PROSITE profilePS5129425.30362116IPR017930Myb domain
Gene3DG3DSA:1.10.10.604.1E-2665116IPR009057Homeodomain-like
SMARTSM007171.1E-1466114IPR001005SANT/Myb domain
PfamPF002491.0E-1467112IPR001005SANT/Myb domain
CDDcd001671.31E-1069112No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 293 aa     Download sequence    Send to blast
MGRAPCCEKM GLKRGPWTQE EDQILITYIN TYGHANWRSL PKLAGLLRCG KSCRLRWINY  60
LRPDIKRGNF TREEEDAIIT LHEMLGNRWS AIAARLPGRT DNEIKNVWHT HLKKRLPQNY  120
RQSHDQKRSK KQAKLDGDAS KTNYQDAKLE QQDEPVNNMH SHASTKEDNG TEDMPLSPPQ  180
CSSDMSSLTT SDNNSSINNN TNNCDMSLHV NDIDTPENNL ALDEDFWSEV LSSDDNSGET  240
SGFPSIDYGR FEPMSSKEGV LIDGSSSSMC DGMDFWCNVY ARAEEFNQLL EL*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1a5j_A2e-27121165108B-MYB
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor involved in cold-regulation of CBF genes and in the development of freezing tolerance. May be part of a complex network of transcription factors controlling the expression of CBF genes and other genes in response to cold stress. Binds to the MYB recognition sequences in the promoters of CBF1, CBF2 and CBF3 genes (PubMed:17015446). Involved in drought and salt tolerance. May enhance expression levels of genes involved in abscisic acid (ABA) biosynthesis and signaling, as well as those encoding stress-protective proteins (PubMed:19161942). {ECO:0000269|PubMed:17015446, ECO:0000269|PubMed:19161942}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapPhvul.001G161000.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Induced by abscisic acid (ABA) and drought stress (PubMed:19161942). Induced by salt stress (PubMed:19161942). {ECO:0000269|PubMed:19161942}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAP0150370.0AP015037.1 Vigna angularis var. angularis DNA, chromosome 4, almost complete sequence, cultivar: Shumari.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_007162544.10.0hypothetical protein PHAVU_001G161000g
SwissprotQ9LTC42e-80MYB15_ARATH; Transcription factor MYB15
TrEMBLV7CYR80.0V7CYR8_PHAVU; Uncharacterized protein
STRINGXP_007162544.10.0(Phaseolus vulgaris)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF3134817
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G23250.13e-77myb domain protein 15
Publications ? help Back to Top
  1. Schnaubelt D, et al.
    Low glutathione regulates gene expression and the redox potentials of the nucleus and cytosol in Arabidopsis thaliana.
    Plant Cell Environ., 2015. 38(2): p. 266-79
    [PMID:24329757]
  2. Ding Y, et al.
    Four distinct types of dehydration stress memory genes in Arabidopsis thaliana.
    BMC Plant Biol., 2013. 13: p. 229
    [PMID:24377444]
  3. Ma X, et al.
    CYCLIN-DEPENDENT KINASE G2 regulates salinity stress response and salt mediated flowering in Arabidopsis thaliana.
    Plant Mol. Biol., 2015. 88(3): p. 287-99
    [PMID:25948280]
  4. Kim SH, et al.
    Phosphorylation of the transcriptional repressor MYB15 by mitogen-activated protein kinase 6 is required for freezing tolerance in Arabidopsis.
    Nucleic Acids Res., 2017. 45(11): p. 6613-6627
    [PMID:28510716]
  5. Chezem WR,Memon A,Li FS,Weng JK,Clay NK
    SG2-Type R2R3-MYB Transcription Factor MYB15 Controls Defense-Induced Lignification and Basal Immunity in Arabidopsis.
    Plant Cell, 2017. 29(8): p. 1907-1926
    [PMID:28733420]
  6. Pal S, et al.
    TransDetect Identifies a New Regulatory Module Controlling Phosphate Accumulation.
    Plant Physiol., 2017. 175(2): p. 916-926
    [PMID:28827455]
