Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Phvul.005G109100.1
Common NamePHAVU_005G109100g
Organism
Phaseolus vulgaris
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Phaseolus
Family MYB
Protein Properties Length: 324aa    MW: 36200.7 Da    PI: 6.8632
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Phvul.005G109100.1genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding50.93.5e-161461148
                        TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
     Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                        +g+WT+eEd++l ++++  G+g+W+  ++  g+ R++k+c++rw +yl
  Phvul.005G109100.1 14 KGPWTPEEDLILTNYIHTNGPGNWRNLPKNAGLQRCGKSCRLRWTNYL 61
                        79********************************************97 PP
2Myb_DNA-binding53.36.3e-1767111147
                         TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHH CS
     Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqky 47
                         rgr++ eE+e +++++  +G++ W++Ia++++ gRt++++k++w+++
  Phvul.005G109100.1  67 RGRFSFEEEETIIQLHSIMGNK-WSAIAARLP-GRTDNEIKNYWNTH 111
                         89********************.*********.************97 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.601.5E-24564IPR009057Homeodomain-like
PROSITE profilePS5129417.103961IPR017930Myb domain
SuperFamilySSF466898.24E-3011108IPR009057Homeodomain-like
SMARTSM007178.1E-131363IPR001005SANT/Myb domain
PfamPF002497.1E-151461IPR001005SANT/Myb domain
CDDcd001676.04E-111661No hitNo description
PROSITE profilePS5129425.02362116IPR017930Myb domain
Gene3DG3DSA:1.10.10.601.0E-2665116IPR009057Homeodomain-like
SMARTSM007171.3E-1666114IPR001005SANT/Myb domain
PfamPF002492.3E-1567111IPR001005SANT/Myb domain
CDDcd001671.56E-1269112No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 324 aa     Download sequence    Send to blast
MGRAPCCNKN GLKKGPWTPE EDLILTNYIH TNGPGNWRNL PKNAGLQRCG KSCRLRWTNY  60
LRPDIKRGRF SFEEEETIIQ LHSIMGNKWS AIAARLPGRT DNEIKNYWNT HIRKRLLRMG  120
IDPVTHAPRL DLLDMSSILR SAIGNVTPSF MNLQGLLGAQ ALMNPEFLKL AATATLLSLK  180
NDHNPSNLVS QVQQINNNTG NCQMQNQVVP GQFQTPTQSN NINNGFSMSP DNSIPSYLGE  240
HSYLNAQQNQ VDLLQDPEVV HFLNNANQNI GYESVLSTPL STPTPLNSSS TYVNSSSEEE  300
RDTYCSDVFK LEIPESLDIS DFL*

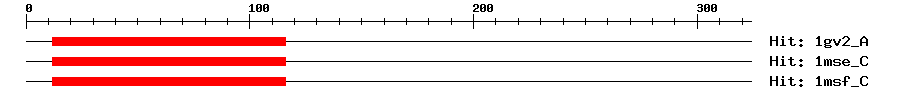

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1gv2_A7e-27121162105MYB PROTO-ONCOGENE PROTEIN
1mse_C6e-27121162105C-Myb DNA-Binding Domain
1msf_C6e-27121162105C-Myb DNA-Binding Domain
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor that may function in osmotic stress and wounding signaling pathways (Probable). Contributes to basal resistance against the herbivore Pieris rapae (white cabbage butterfly) feeding (PubMed:19517001). {ECO:0000269|PubMed:19517001, ECO:0000305|PubMed:12857823}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapPhvul.005G109100.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Induced by light (PubMed:8980549). Induced by wounding, salt stress and abscisic acid (PubMed:12857823). Induced by the lepidopteran herbivore Pieris rapae (white cabbage butterfly) feeding (PubMed:19517001). {ECO:0000269|PubMed:12857823, ECO:0000269|PubMed:19517001, ECO:0000269|PubMed:8980549}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAP0150400.0AP015040.1 Vigna angularis var. angularis DNA, chromosome 7, almost complete sequence, cultivar: Shumari.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_007149908.10.0hypothetical protein PHAVU_005G109100g
SwissprotQ9LDR81e-97MY102_ARATH; Transcription factor MYB102
TrEMBLV7BV710.0V7BV71_PHAVU; Uncharacterized protein
STRINGXP_007149908.10.0(Phaseolus vulgaris)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF85034127
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G21440.13e-93MYB-like 102
Publications ? help Back to Top
  1. Duarte JM, et al.
    Expression pattern shifts following duplication indicative of subfunctionalization and neofunctionalization in regulatory genes of Arabidopsis.
    Mol. Biol. Evol., 2006. 23(2): p. 469-78
    [PMID:16280546]
  2. Ding Y, et al.
    Four distinct types of dehydration stress memory genes in Arabidopsis thaliana.
    BMC Plant Biol., 2013. 13: p. 229
    [PMID:24377444]
  3. Huang KC,Lin WC,Cheng WH
    Salt hypersensitive mutant 9, a nucleolar APUM23 protein, is essential for salt sensitivity in association with the ABA signaling pathway in Arabidopsis.
    BMC Plant Biol., 2018. 18(1): p. 40
    [PMID:29490615]
  4. Zhu L,Guo J,Ma Z,Wang J,Zhou C
    Arabidopsis Transcription Factor MYB102 Increases Plant Susceptibility to Aphids by Substantial Activation of Ethylene Biosynthesis.
    Biomolecules, 2019.
    [PMID:29880735]
