Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Phvul.009G169300.6
Common NamePHAVU_009G169300g
Organism
Phaseolus vulgaris
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Phaseoleae; Phaseolus
Family B3
Protein Properties Length: 335aa    MW: 37412.1 Da    PI: 4.919
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Phvul.009G169300.6genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B338.71.7e-124653499
                        SEEEEEETTS-EEEEEE..EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SSSEE..EEEEE-S CS
                  B3 34 ktltledesgrsWevkliyrkksgryvltkGWkeFvkangLkegDfvvFkldgrsefelvvkvfrk 99
                        k++ l+d+sg++W+vk+  +   g++v+++GW++F    gLk+g  +vF ++++  f   vk++++
  Phvul.009G169300.6  4 KKINLNDSSGQQWKVKV--SEVNGSFVFGEGWSSFSLGLGLKVGYLLVFNYIKDLHF--DVKIYDT 65
                        689**************..999999**************************987666..8888876 PP

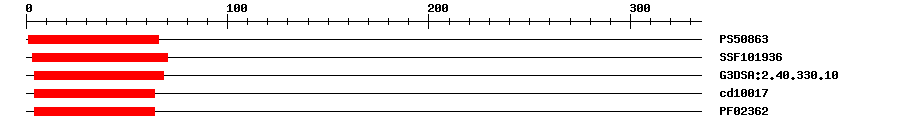

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5086312.619166IPR003340B3 DNA binding domain
SuperFamilySSF1019365.49E-14370IPR015300DNA-binding pseudobarrel domain
Gene3DG3DSA:2.40.330.103.2E-14468IPR015300DNA-binding pseudobarrel domain
CDDcd100172.82E-11464No hitNo description
PfamPF023622.1E-9464IPR003340B3 DNA binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 335 aa     Download sequence    Send to blast
MVNKKINLND SSGQQWKVKV SEVNGSFVFG EGWSSFSLGL GLKVGYLLVF NYIKDLHFDV  60
KIYDTSACEK LGFSKKRDQK KRSRGKIVSP VRDGILVRQE PNAPKMKRQC SEVDLDLPQN  120
SKESGQLMHI SDHCEDPCYS KRQEFDQSHG DDGTMKIENG DLNVSNVDYE SNIFEKDAMT  180
CSKDTMFEGK FSTEVALDIS ELEKSGRSVS LGEAETSTYG KTSNLKFEEN KAILSNMEAQ  240
ECQFSKGLGE MKKLPEDMTP NLDSSMDELN LTGEVSKQLK KELVTLVELE ATGLPTEIKG  300
LLDSDIFNED NARHSKTTHL SCVVPHDNVC LVQY*
Cis-element ? help Back to Top
SourceLink
PlantRegMapPhvul.009G169300.6
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAP0150350.0AP015035.1 Vigna angularis var. angularis DNA, chromosome 2, almost complete sequence, cultivar: Shumari.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_007137961.10.0hypothetical protein PHAVU_009G169300g
TrEMBLV7AXC70.0V7AXC7_PHAVU; Uncharacterized protein
STRINGXP_007137956.10.0(Phaseolus vulgaris)
