Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Potri.002G028400.1
Common NamePOPTR_0002s02990g
Organism
Populus trichocarpa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Populus
Family MIKC_MADS
Protein Properties Length: 192aa    MW: 22241.3 Da    PI: 9.091
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Potri.002G028400.1genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF86.12.1e-27959151
                        S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
              SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                        k+ien++nrqvt+skRrng++KKA+EL vLCdaev+++++s t+k+++y s
  Potri.002G028400.1  9 KKIENSTNRQVTYSKRRNGLFKKAHELTVLCDAEVSLVMVSCTDKVHDYTS 59
                        68**********************************************975 PP
2K-box80.25e-2771169199
               K-box   1 yqkssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeen 91
                         yq+++g +l+++++e ++++l+kLk+ + +++re R+++G++L+ Ls+++Lq+Le+++e++ + i ++ +++l++qie+++kk ++++++n
  Potri.002G028400.1  71 YQQTKGIDLWSSHYEIMKENLEKLKEVNMKIRREMRQRMGQCLNGLSFQDLQSLESDMESAWRVIHDRADRVLTNQIETSKKKARNVEQIN 161
                         78999999*********************************************************************************** PP

               K-box  92 kaLrkkle 99
                         ++L+ +le
  Potri.002G028400.1 162 RKLQVELE 169
                         ***98876 PP

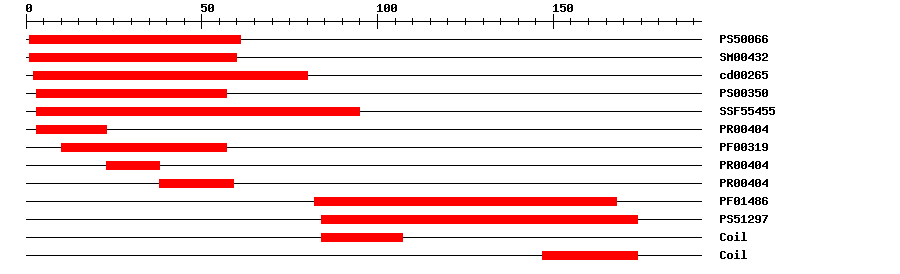

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006630.922161IPR002100Transcription factor, MADS-box
SMARTSM004324.4E-38160IPR002100Transcription factor, MADS-box
CDDcd002652.81E-39280No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
SuperFamilySSF554551.31E-35395IPR002100Transcription factor, MADS-box
PRINTSPR004041.2E-26323IPR002100Transcription factor, MADS-box
PfamPF003195.2E-241057IPR002100Transcription factor, MADS-box
PRINTSPR004041.2E-262338IPR002100Transcription factor, MADS-box
PRINTSPR004041.2E-263859IPR002100Transcription factor, MADS-box
PfamPF014863.5E-1982168IPR002487Transcription factor, K-box
PROSITE profilePS5129714.29984174IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010093Biological Processspecification of floral organ identity
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 192 aa     Download sequence    Send to blast
MARGKIQIKK IENSTNRQVT YSKRRNGLFK KAHELTVLCD AEVSLVMVSC TDKVHDYTSP  60
STTTKRIFDQ YQQTKGIDLW SSHYEIMKEN LEKLKEVNMK IRREMRQRMG QCLNGLSFQD  120
LQSLESDMES AWRVIHDRAD RVLTNQIETS KKKARNVEQI NRKLQVELEA MDQDPYGLVD  180
NGGDYNSVMG F*

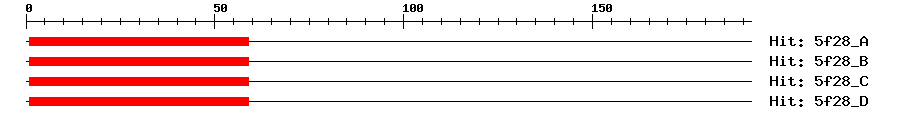

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A4e-15159159MEF2C
5f28_B4e-15159159MEF2C
5f28_C4e-15159159MEF2C
5f28_D4e-15159159MEF2C
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed during flower development in stamens and petals. {ECO:0000269|PubMed:17920788}.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00077ChIP-seqTransfer from AT3G54340Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapPotri.002G028400.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006386194.11e-142floral homeotic protein DEFICIENS
SwissprotE0CPH43e-90AP3_VITVI; Agamous-like MADS-box protein AP3
TrEMBLU5GNN81e-141U5GNN8_POPTR; Uncharacterized protein
STRINGPOPTR_0002s02990.11e-142(Populus trichocarpa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF27353375
Representative plantOGRP51991121
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G54340.14e-78MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
