Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Potri.002G054100.1
Common NamePOPTR_0002s05510g
Organism
Populus trichocarpa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Populus
Family bHLH
Protein Properties Length: 700aa    MW: 78304.6 Da    PI: 4.4882
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Potri.002G054100.1genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH43.27e-14479524454
                         HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS
                 HLH   4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54
                         +h  +ErrRR+++N++f  Lr+l+P       +K++Ka+iL  ++eY+k+L
  Potri.002G054100.1 479 NHVLAERRRREKLNERFIILRSLVPFV-----TKMDKASILGDTIEYVKQL 524
                         7999**********************8.....8****************98 PP

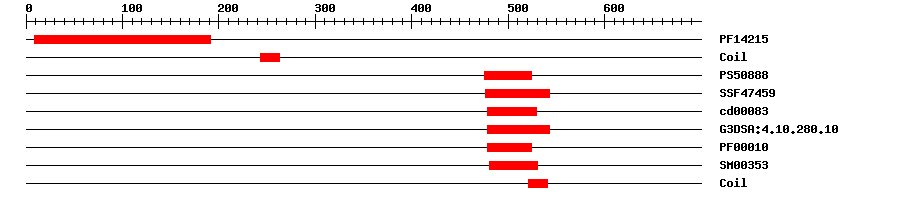

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PfamPF142156.0E-579191IPR025610Transcription factor MYC/MYB N-terminal
PROSITE profilePS5088817.625475524IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474594.71E-19477543IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000833.97E-15479529No hitNo description
Gene3DG3DSA:4.10.280.102.8E-19479543IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000101.8E-11479524IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003534.2E-17481530IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 700 aa     Download sequence    Send to blast
MAAPLSSRLQ TMLQAAVQSV QWTYSLFWQM CPQQGILVWG DGYYNGPIKT RKTVQPMEVS  60
TEEASLQRSQ QLRELYDSLS IGETNQPERR PCAALSPEDL TETEWFYLMC VSFSFSPGAG  120
LPGKAYDRKQ HVWLTGANDI DSKTFSRAIL AKSAGVQTVV CIPLLDGVVE FGTTDKVKED  180
LGFIQHVKSF FSDHHHLPPP KPALSEHSTS NPATSSDHPY LYSPPIPPFY VAADPPANAG  240
QMNEDDEEEE EDEEDDEDDE EDQESDSEAE TSREALLEPC QAQNPLQVAV VEPSELMQLE  300
MSEGIRLGSP DDGSNNLDVD FPLINPESLM DHQSRADSFR TESARRWAPM LQDNPFSGSL  360
QPSASGSPTL EDLAQEDTHY SQTVSTILQN QTIELAAEPS LNAYEAYSNQ SAFAKWMNLT  420
DHCLNVPVET TSQWLLKYIL FTVPYLHSKY REENSPKSRD GDATNKFRKG TPQDELSANH  480
VLAERRRREK LNERFIILRS LVPFVTKMDK ASILGDTIEY VKQLLKKIQD LEACNKQMES  540
EQRSRSVDPP QTITTSTSLK EQNNGITVVD RARSVGPGSD KRKMRIVEDY TTGRAQPKSV  600
DSLPSPEPMV DVEPEISVEV SIIESDALIE LKCGYREGLL LDIMQMLREL RIETIAVQSS  660
SNNGIFVGEL RAKVKENVSG KKLSIVEVKR AIRQIIPHD*

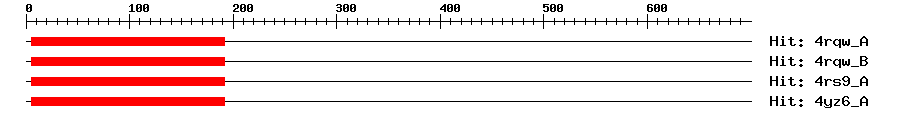

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4rqw_A1e-2251929193Transcription factor MYC3
4rqw_B1e-2251929193Transcription factor MYC3
4rs9_A1e-2251929193Transcription factor MYC3
4yz6_A1e-2251929193Transcription factor MYC3
Search in ModeBase
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
1483488ERRRRE
2484489RRRREK
Functional Description ? help Back to Top
Source Description
UniProtTranscription activator involved in the control of flavonoid pigmentation. {ECO:0000269|PubMed:20949001}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapPotri.002G054100.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_024451876.10.0basic helix-loop-helix protein A
SwissprotE3SXU40.0BHLHW_PEA; Basic helix-loop-helix protein A
TrEMBLA0A2K2BDU70.0A0A2K2BDU7_POPTR; Uncharacterized protein
STRINGPOPTR_0002s05510.10.0(Populus trichocarpa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF36373249
Representative plantOGRP52261116
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G09820.11e-101bHLH family protein
Publications ? help Back to Top
  1. Hellens RP, et al.
    Identification of Mendel's white flower character.
    PLoS ONE, 2010. 5(10): p. e13230
    [PMID:20949001]
