Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Potri.010G216600.3
Organism
Populus trichocarpa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Populus
Family NF-YB
Protein Properties Length: 175aa    MW: 18781 Da    PI: 5.8261
Description NF-YB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Potri.010G216600.3genomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NF-YB185.73.5e-5825121197
               NF-YB   1 vreqdrflPianvsrimkkvlPanakiskdaketvqecvsefisfvtseasdkcqrekrktingddllwalatlGfedyveplkvylkkyr 91
                         vreqdr+lPian+srimkk+lPan+ki+kdak+tvqecvsefisfvtseasdkcq+ekrktingddllwa+atlGfedy++plkvyl++yr
  Potri.010G216600.3  25 VREQDRYLPIANISRIMKKALPANGKIAKDAKDTVQECVSEFISFVTSEASDKCQKEKRKTINGDDLLWAMATLGFEDYIDPLKVYLARYR 115
                         69***************************************************************************************** PP

               NF-YB  92 elegek 97
                         eleg+
  Potri.010G216600.3 116 ELEGDA 121
                         ***996 PP

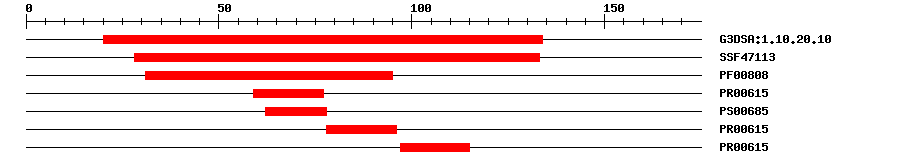

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.20.103.7E-5420134IPR009072Histone-fold
SuperFamilySSF471133.88E-4028133IPR009072Histone-fold
PfamPF008082.1E-283195IPR003958Transcription factor CBF/NF-Y/archaeal histone domain
PRINTSPR006151.1E-205977No hitNo description
PROSITE patternPS0068506278IPR003956Transcription factor, NFYB/HAP3, conserved site
PRINTSPR006151.1E-207896No hitNo description
PRINTSPR006151.1E-2097115No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0043565Molecular Functionsequence-specific DNA binding
GO:0046982Molecular Functionprotein heterodimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 175 aa     Download sequence    Send to blast
MADNPTSPAA GSHESGGEQS PRSGVREQDR YLPIANISRI MKKALPANGK IAKDAKDTVQ  60
ECVSEFISFV TSEASDKCQK EKRKTINGDD LLWAMATLGF EDYIDPLKVY LARYRELEGD  120
AKGSARGGDG SSKREAVGGL PAQNAQFALQ GSMNYISPQG QGQHMILPSM QGNE*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4awl_B2e-4724116294NUCLEAR TRANSCRIPTION FACTOR Y SUBUNIT BETA
4csr_A2e-4724116294NUCLEAR TRANSCRIPTION FACTOR Y SUBUNIT BETA
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Pth.17271e-163bud| stem
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in flowers and mature rosettes. {ECO:0000269|PubMed:11250072}.
Functional Description ? help Back to Top
Source Description
UniProtComponent of the NF-Y/HAP transcription factor complex. The NF-Y complex stimulates the transcription of various genes by recognizing and binding to a CCAAT motif in promoters.
Cis-element ? help Back to Top
SourceLink
PlantRegMapPotri.010G216600.3
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006378751.21e-128nuclear transcription factor Y subunit B-1 isoform X2
SwissprotQ8VYK43e-79NFYB8_ARATH; Nuclear transcription factor Y subunit B-8
TrEMBLA0A2K1YY361e-126A0A2K1YY36_POPTR; Uncharacterized protein
STRINGcassava4.1_017552m1e-118(Manihot esculenta)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G37060.31e-81nuclear factor Y, subunit B8
Publications ? help Back to Top
  1. Zhao H, et al.
    The Arabidopsis thaliana Nuclear Factor Y Transcription Factors.
    Front Plant Sci, 2016. 7: p. 2045
    [PMID:28119722]
