Transcription Factor Information
| Basic Information? help Back to Top | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TF ID | RrC4407_p1 | ||||||||
| Organism | |||||||||
| Taxonomic ID | |||||||||
| Taxonomic Lineage |
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Raphanus
|
||||||||
| Family | MIKC_MADS | ||||||||
| Protein Properties | Length: 224aa MW: 26357.8 Da PI: 8.6561 | ||||||||
| Description | MIKC_MADS family protein | ||||||||
| Gene Model |
|
||||||||
| Signature Domain? help Back to Top | |||||||
|---|---|---|---|---|---|---|---|
| No. | Domain | Score | E-value | Start | End | HMM Start | HMM End |
| 1 | SRF-TF | 93.9 | 7.6e-30 | 9 | 59 | 1 | 51 |
S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
SRF-TF 1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
krien++nrqvt+skRrng++KKA+EL vLCda+v++i+fss++kl+e++s
RrC4407_p1 9 KRIENQTNRQVTYSKRRNGLFKKAHELTVLCDARVSIIMFSSSNKLHEFIS 59
79***********************************************86 PP
| |||||||
| 2 | K-box | 80.5 | 4.1e-27 | 71 | 169 | 1 | 99 |
K-box 1 yqkssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
yq+ s++++++a++e++q+ +kL + ++nL+++++++lGe+L++L+++eL++Le+++e+ k +R++K + l +qie+++kk+k++q+++k+L ++le
RrC4407_p1 71 YQTVSDVDVWSAHYERMQETKRKLLETNRNLRTQIKQRLGECLDELDIQELRSLEEEMENTFKLVRERKFKSLGNQIETTKKKNKSQQDIQKNLIHELE 169
78899999**************************************************************************************99875 PP
| |||||||
| Protein Features ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Database | Entry ID | E-value | Start | End | InterPro ID | Description |
| SMART | SM00432 | 9.7E-41 | 1 | 60 | IPR002100 | Transcription factor, MADS-box |
| PROSITE profile | PS50066 | 32.226 | 1 | 61 | IPR002100 | Transcription factor, MADS-box |
| CDD | cd00265 | 6.95E-41 | 2 | 80 | No hit | No description |
| PRINTS | PR00404 | 7.4E-29 | 3 | 23 | IPR002100 | Transcription factor, MADS-box |
| SuperFamily | SSF55455 | 3.01E-36 | 3 | 94 | IPR002100 | Transcription factor, MADS-box |
| PROSITE pattern | PS00350 | 0 | 3 | 57 | IPR002100 | Transcription factor, MADS-box |
| Pfam | PF00319 | 1.8E-25 | 10 | 57 | IPR002100 | Transcription factor, MADS-box |
| PRINTS | PR00404 | 7.4E-29 | 23 | 38 | IPR002100 | Transcription factor, MADS-box |
| PRINTS | PR00404 | 7.4E-29 | 38 | 59 | IPR002100 | Transcription factor, MADS-box |
| Pfam | PF01486 | 6.5E-16 | 82 | 168 | IPR002487 | Transcription factor, K-box |
| PROSITE profile | PS51297 | 13.906 | 84 | 174 | IPR002487 | Transcription factor, K-box |
| Gene Ontology ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| GO Term | GO Category | GO Description | ||||
| GO:0006355 | Biological Process | regulation of transcription, DNA-templated | ||||
| GO:0005634 | Cellular Component | nucleus | ||||
| GO:0003677 | Molecular Function | DNA binding | ||||
| GO:0003700 | Molecular Function | transcription factor activity, sequence-specific DNA binding | ||||
| GO:0046983 | Molecular Function | protein dimerization activity | ||||
| Sequence ? help Back to Top |
|---|
| Protein Sequence Length: 224 aa Download sequence Send to blast |
MARGKIQIKR IENQTNRQVT YSKRRNGLFK KAHELTVLCD ARVSIIMFSS SNKLHEFISP 60 NTSTKEIIDL YQTVSDVDVW SAHYERMQET KRKLLETNRN LRTQIKQRLG ECLDELDIQE 120 LRSLEEEMEN TFKLVRERKF KSLGNQIETT KKKNKSQQDI QKNLIHELEL RAEDPHYGLV 180 DNGGDYDSVL GYQLRFHQNH HHNYPNHALH SASASDIITF HLLE |

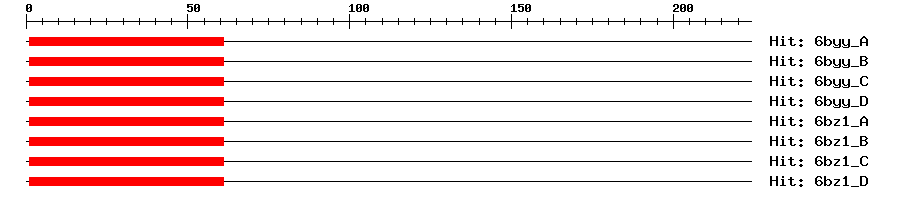

| 3D Structure ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| PDB ID | Evalue | Query Start | Query End | Hit Start | Hit End | Description |
| 6byy_A | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| 6byy_B | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| 6byy_C | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| 6byy_D | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| 6bz1_A | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| 6bz1_B | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| 6bz1_C | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| 6bz1_D | 2e-17 | 1 | 61 | 1 | 61 | MEF2 CHIMERA |
| Search in ModeBase | ||||||
| Functional Description ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Source | Description | |||||
| UniProt | Probable transcription factor involved in the genetic control of flower development. Is required for normal development of petals and stamens in the wild-type flower. Forms a heterodimer with PISTILLATA that is required for autoregulation of both AP3 and PI genes. AP3/PI heterodimer interacts with APETALA1 or SEPALLATA3 to form a ternary complex that could be responsible for the regulation of the genes involved in the flower development. AP3/PI heterodimer activates the expression of NAP. AP3/PI prevents GATA22/GNL and GATA21/GNC expression (PubMed:18417639). {ECO:0000269|PubMed:18417639, ECO:0000269|PubMed:8565821, ECO:0000269|PubMed:9489703}. | |||||
| Regulation -- Description ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Source | Description | |||||
| UniProt | INDUCTION: Positively regulated by the meristem identity proteins APETALA1 and LEAFY with the cooperation of UFO. Repressed by silencing mediated by polycomb group (PcG) protein complex containing EMF1 and EMF2. {ECO:0000269|PubMed:11283333, ECO:0000269|PubMed:19783648}. | |||||
| Regulation -- PlantRegMap ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Source | Upstream Regulator | Target Gene | ||||
| PlantRegMap | Retrieve | - | ||||
| Annotation -- Nucleotide ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Source | Hit ID | E-value | Description | |||
| GenBank | AF124814 | 0.0 | AF124814.1 Brassica napus APETALA3 (BnAP3) mRNA, complete cds. | |||
| Annotation -- Protein ? help Back to Top | |||||||
|---|---|---|---|---|---|---|---|
| Source | Hit ID | E-value | Description | ||||
| Refseq | XP_018480988.1 | 1e-167 | PREDICTED: floral homeotic protein APETALA 3-like | ||||
| Swissprot | P35632 | 1e-157 | AP3_ARATH; Floral homeotic protein APETALA 3 | ||||
| TrEMBL | A0A397ZQB5 | 1e-164 | A0A397ZQB5_BRACM; Uncharacterized protein | ||||
| TrEMBL | Q6IV03 | 1e-164 | Q6IV03_BRARC; Floral homeotic protein APETALA3 | ||||
| TrEMBL | Q9M7M0 | 1e-164 | Q9M7M0_BRANA; APETALA3-4 | ||||
| STRING | Bra014822.1-P | 1e-164 | (Brassica rapa) | ||||
| Orthologous Group ? help Back to Top | |||
|---|---|---|---|
| Lineage | Orthologous Group ID | Taxa Number | Gene Number |
| Malvids | OGEM5261 | 27 | 50 |
| Best hit in Arabidopsis thaliana ? help Back to Top | ||||||
|---|---|---|---|---|---|---|
| Hit ID | E-value | Description | ||||
| AT3G54340.1 | 1e-159 | MIKC_MADS family protein | ||||
