Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

RrC9086_p3

Organism

Raphanus raphanistrum

Taxonomic ID

109996

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Raphanus

Family

bHLH

Protein Properties

Length: 258aa MW: 28893.2 Da PI: 7.8092

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
RrC9086_p3	genome	MSU	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	25.5	2.5e-08	154	201	4	55
HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS HLH 4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55 +h+ +Er RR +iN+++ L++++P + k + a++L + ++Y++sLq RrC9086_p3 154 SHSLAERVRRGKINERLKCLQDIVPGC----YKAMGMATMLVEIINYVQSLQ 201 8***********************8....355999999999**99998 PP

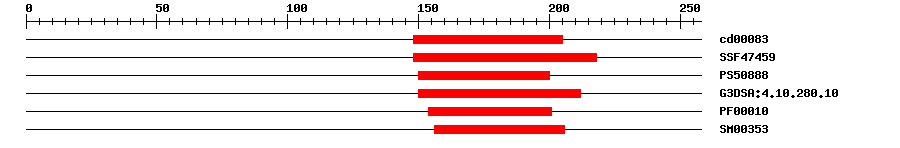

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
CDD	cd00083	9.25E-9	148	205	No hit	No description
SuperFamily	SSF47459	8.9E-16	148	218	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profile	PS50888	14.869	150	200	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	1.0E-15	150	212	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	7.0E-6	154	201	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	8.7E-8	156	206	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0006351	Biological Process	transcription, DNA-templated
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 258 aa Download sequence Send to blast
MANLSSDLQT YTVDDPITQL AELNNTLHQF QTMFAPPFSS SLESLLFHHH QHQPLPDHFP 60 GKSPENNFHQ GVFVPSNIHN KNDESSSRVD TKKRKTLMAS MSTSENSVSD QTSSAQVSIN 120 GNSSSRRGKR SKNIEEKERE VVHVRAKRGQ ATDSHSLAER VRRGKINERL KCLQDIVPGC 180 YKAMGMATML VEIINYVQSL QNQVEFLSMK LTAASSYYDF NSEADAVDSM QKAKAREAVE 240 MGQGRDGNTV FHSSSWTL

Functional Description ? help Back to Top
Source	Description
UniProt	Positive regulator of brassinosteroid signaling. {ECO:0000269\|PubMed:12454087}.

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: Induced by brassinosteroid, auxin and ethylene, and repressed by abscisic acid. Insensitive to gibberellic acid. {ECO:0000269\|PubMed:12454087}.

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	AF488585	1e-148	AF488585.1 Arabidopsis thaliana clone bHLH050 putative bHLH transcription factor mRNA, partial sequence.
GenBank	AK118781	1e-148	AK118781.1 Arabidopsis thaliana At1g73830 mRNA for putative bHLH transcription factor (bHLH050), complete cds, clone: RAFL21-11-M10.
GenBank	BT006055	1e-148	BT006055.1 Arabidopsis thaliana clone U51368 putative helix-loop-helix DNA-binding protein (At1g73830) mRNA, complete cds.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_018454690.1	0.0	PREDICTED: transcription factor BEE 3
Swissprot	Q8GWK7	1e-145	BEE3_ARATH; Transcription factor BEE 3
TrEMBL	A0A0D3D0G9	1e-180	A0A0D3D0G9_BRAOL; Uncharacterized protein
STRING	Bo6g118140.1	0.0	(Brassica oleracea)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM2997	27	65

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT1G73830.1	1e-122	BR enhanced expression 3

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281]
