Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

Rsa1.0_00269.1_g00028.1

Organism

Raphanus sativus

Taxonomic ID

3726

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Raphanus

Family

bHLH

Protein Properties

Length: 261aa MW: 29111.6 Da PI: 7.6618

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
Rsa1.0_00269.1_g00028.1	genome	RGD	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	24.7	4.3e-08	45	90	5	54
HHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 5 hnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 + rE+ RRd++N+ f eL l ++ +K +Ka+iL +++ +k+L Rsa1.0_00269.1_g00028.1 45 KADREKIRRDKLNEQFLELGNALDPN----RPKSDKASILIDTIQTLKDL 90 5679*****************997....79**********999987 PP

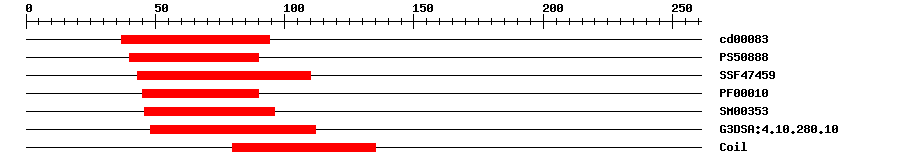

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
CDD	cd00083	2.01E-5	37	94	No hit	No description
PROSITE profile	PS50888	11.896	40	90	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF47459	5.23E-13	43	110	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	7.5E-6	45	90	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	2.2E-6	46	96	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	2.6E-12	48	112	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0005634	Cellular Component	nucleus
GO:0009507	Cellular Component	chloroplast
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 261 aa Download sequence Send to blast
MEQTKKLKTS SEFSLSDESS ASSSIRPEKI LEVKKESVSC RNIHKADREK IRRDKLNEQF 60 LELGNALDPN RPKSDKASIL IDTIQTLKDL MTQVDRLKAE HVTLSQESRE LVQEKRELRE 120 EKTSLKSDIE ILNAQYQHRV RSMVPWIPHY SYPVPLVAIT QGPVSTLPFP LHGTQNPAPS 180 PNSCSTFMPY SASLSSKTEQ KDDVGLELEL NTHASSSAQQ DVSGKEKGKL TTTASSSNSY 240 YSSSQAVQDS SLGNVNNIFK S

Cis-element ? help Back to Top
Source	Link
PlantRegMap	Rsa1.0_00269.1_g00028.1

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_018478868.1	1e-158	PREDICTED: transcription factor bHLH11
Swissprot	Q8W2F2	6e-92	BH011_ARATH; Transcription factor bHLH11
TrEMBL	A0A0D3DHX8	1e-129	A0A0D3DHX8_BRAOL; Uncharacterized protein
TrEMBL	A0A3P6F6D0	1e-129	A0A3P6F6D0_BRAOL; Uncharacterized protein
STRING	Bo7g117760.1	1e-130	(Brassica oleracea)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM2353	27	62

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT4G36060.2	1e-93	bHLH family protein

Publications ? help Back to Top
Kawabe A,Hansson B,Forrest A,Hagenblad J,Charlesworth D Comparative gene mapping in Arabidopsis lyrata chromosomes 6 and 7 and A. thaliana chromosome IV: evolutionary history, rearrangements and local recombination rates. Genet. Res., 2006. 88(1): p. 45-56 [PMID:17014743] Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Ezer D, et al. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol., 2017. 175(2): p. 628-640 [PMID:28864470] Min JH, et al. Arabidopsis Basic Helix-Loop-Helix 34 (bHLH34) Is Involved in Glucose Signaling through Binding to a GAGA Cis-Element. Front Plant Sci, 2017. 8: p. 2100 [PMID:29321786] Tanabe N, et al. The basic helix-loop-helix transcription factor, bHLH11 functions in the iron-uptake system in Arabidopsis thaliana. J. Plant Res., 2019. 132(1): p. 93-105 [PMID:30417276]
