Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Rsa1.0_00298.1_g00006.1
Organism
Raphanus sativus
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Raphanus
Family MYB
Protein Properties Length: 247aa    MW: 28667.3 Da    PI: 9.5077
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Rsa1.0_00298.1_g00006.1genomeRGDView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding56.37.2e-18550147
                             TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHH CS
          Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqky 47
                             rg W + Ede+l ++v+q+G+++W++Ia+++  gR++k+c++rw++
  Rsa1.0_00298.1_g00006.1  5 RGHWRPAEDEKLRELVEQFGPHNWNAIAQKLS-GRSGKSCRLRWFNQ 50
                             899*****************************.***********996 PP
2Myb_DNA-binding53.17.4e-1757100146
                              TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
          Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                              r+++T++E+e+l+  ++ +G++ W+ Iar ++ gRt++ +k++w+
  Rsa1.0_00298.1_g00006.1  57 RNPFTKDEEERLLASHRIHGNR-WSVIARFFP-GRTDNAVKNHWHV 100
                              789*******************.*********.***********96 PP

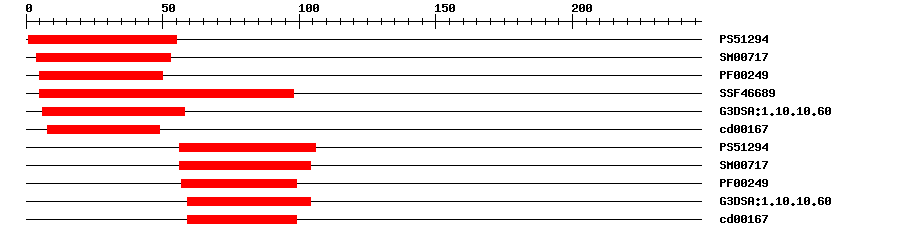

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129425.039155IPR017930Myb domain
SMARTSM007179.3E-15453IPR001005SANT/Myb domain
PfamPF002497.6E-17550IPR001005SANT/Myb domain
SuperFamilySSF466891.01E-29598IPR009057Homeodomain-like
Gene3DG3DSA:1.10.10.609.6E-27658IPR009057Homeodomain-like
CDDcd001671.69E-13849No hitNo description
PROSITE profilePS5129417.87256106IPR017930Myb domain
SMARTSM007176.9E-1556104IPR001005SANT/Myb domain
PfamPF002491.1E-135799IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.603.7E-2059104IPR009057Homeodomain-like
CDDcd001671.87E-115999No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 247 aa     Download sequence    Send to blast
MMCSRGHWRP AEDEKLRELV EQFGPHNWNA IAQKLSGRSG KSCRLRWFNQ LDPRINRNPF  60
TKDEEERLLA SHRIHGNRWS VIARFFPGRT DNAVKNHWHV IMARRGRELS KLHPRDLGHD  120
GTTVATIGYD GCDKKKRLAT ATAINYPRQF SHISHFQLLK EFLTGKIGFC HNNTPINDGA  180
INQTKRPMEF YDFLQVKTDS KKPEVIDNSR KYEEEDDVHE HNHNHNANCV PFIDFLSVKN  240
SASQGLC
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1a5j_A9e-3051057107B-MYB
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor that confers sensitivity to abscisic acid (ABA) and salt, but tolerance to drought (PubMed:21399993). Regulates secondary cell wall (SCW) biosynthesis, especially in interfascicular and xylary fibers (PubMed:18952777, PubMed:23781226). {ECO:0000269|PubMed:18952777, ECO:0000269|PubMed:21399993, ECO:0000269|PubMed:23781226}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapRsa1.0_00298.1_g00006.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: By abscisic acid (PubMed:16463103, PubMed:21399993). Accumulates in response to salt (PubMed:21399993). Triggered by MYB46 and MYB83 in the regulation of secondary cell wall biosynthesis (PubMed:19674407, PubMed:22197883). {ECO:0000269|PubMed:16463103, ECO:0000269|PubMed:19674407, ECO:0000269|PubMed:21399993, ECO:0000269|PubMed:22197883}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_018437706.10.0PREDICTED: trichome differentiation protein GL1-like
RefseqXP_018437708.10.0PREDICTED: trichome differentiation protein GL1-like
SwissprotQ6R0C41e-150MYB52_ARATH; Transcription factor MYB52
TrEMBLA0A3N6T6Y61e-174A0A3N6T6Y6_BRACR; Uncharacterized protein
STRINGBo8g104600.11e-173(Brassica oleracea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM28182769
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G17950.11e-145myb domain protein 52
Publications ? help Back to Top
  1. Duarte JM, et al.
    Expression pattern shifts following duplication indicative of subfunctionalization and neofunctionalization in regulatory genes of Arabidopsis.
    Mol. Biol. Evol., 2006. 23(2): p. 469-78
    [PMID:16280546]
  2. Cassan-Wang H, et al.
    Identification of novel transcription factors regulating secondary cell wall formation in Arabidopsis.
    Front Plant Sci, 2013. 4: p. 189
    [PMID:23781226]
  3. Shi D, et al.
    MYB52 Negatively Regulates Pectin Demethylesterification in Seed Coat Mucilage.
    Plant Physiol., 2018. 176(4): p. 2737-2749
    [PMID:29440562]
