Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID SapurV1A.0118s0110.1.p
Organism
Salix purpurea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Salix
Family SBP
Protein Properties Length: 203aa    MW: 22726.6 Da    PI: 9.7607
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
SapurV1A.0118s0110.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP134.24.1e-4275151177
                             --SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S-- CS
                     SBP   1 lCqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkq 77
                             +Cqve+C+adl++ak+yhrrhkvC +h+ka+vvlv+g++qrfCqqCsrfhelsefDe+krsCrrrLa+hnerrrk+
  SapurV1A.0118s0110.1.p  75 CCQVEKCTADLTDAKQYHRRHKVCGQHAKAQVVLVAGIRQRFCQQCSRFHELSEFDETKRSCRRRLAGHNERRRKNV 151
                             6**************************************************************************86 PP

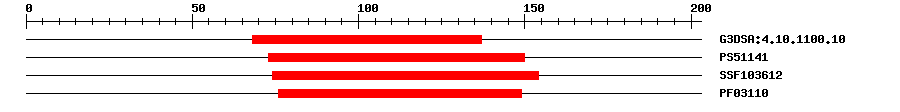

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:4.10.1100.104.7E-3468137IPR004333Transcription factor, SBP-box
PROSITE profilePS5114132.06973150IPR004333Transcription factor, SBP-box
SuperFamilySSF1036125.23E-3874154IPR004333Transcription factor, SBP-box
PfamPF031101.7E-3276149IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 203 aa     Download sequence    Send to blast
MDGKGKQIRM VMGRVVTKKD SADDSSDDEG YEQNQMEFME DDFFQSNKKK KVVVTAGGGG  60
GGRRVSGGGG GGMRCCQVEK CTADLTDAKQ YHRRHKVCGQ HAKAQVVLVA GIRQRFCQQC  120
SRFHELSEFD ETKRSCRRRL AGHNERRRKN VVESHVEGSS RKVINETHGT QLKEMACGQA  180
DERGRIKITI QENATYKHFQ IS*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A4e-3867149284squamosa promoter binding protein-like 4
Search in ModeBase
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
16068GGRRVSGGG
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00634PBMTransfer from PK22320.1Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapSapurV1A.0118s0110.1.p
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156 and miR157. {ECO:0000305|PubMed:12202040, ECO:0000305|PubMed:16914499}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_002309744.21e-103squamosa promoter-binding protein 1
SwissprotQ9S7A93e-43SPL4_ARATH; Squamosa promoter-binding-like protein 4
TrEMBLB9HGP01e-102B9HGP0_POPTR; Uncharacterized protein
STRINGPOPTR_0007s01030.11e-102(Populus trichocarpa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF53534153
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G53160.23e-44squamosa promoter binding protein-like 4
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Hyun Y, et al.
    Site-directed mutagenesis in Arabidopsis thaliana using dividing tissue-targeted RGEN of the CRISPR/Cas system to generate heritable null alleles.
    Planta, 2015. 241(1): p. 271-84
    [PMID:25269397]
  3. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  4. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  5. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
