Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID SapurV1A.0263s0400.1.p
Organism
Salix purpurea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Salix
Family MYB
Protein Properties Length: 306aa    MW: 34230 Da    PI: 5.2352
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
SapurV1A.0263s0400.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding53.74.7e-171461148
                            TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
         Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                            +g+WT+ Ede l+d+vk +G g W+ I ++ g++R++k+c++rw +yl
  SapurV1A.0263s0400.1.p 14 KGAWTPLEDEMLADYVKIHGEGKWSNIVKETGLKRCGKSCRLRWMNYL 61
                            79********************************************97 PP
2Myb_DNA-binding491.4e-1567110146
                             TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
         Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                             rg+ + +E++l+++++k+lG++ W++Ia +++ gRt++++k++w++
  SapurV1A.0263s0400.1.p  67 RGNISDDEEDLIIRLHKLLGNR-WSLIAGRLP-GRTDNEIKNYWHT 110
                             78999*****************.*********.***********97 PP

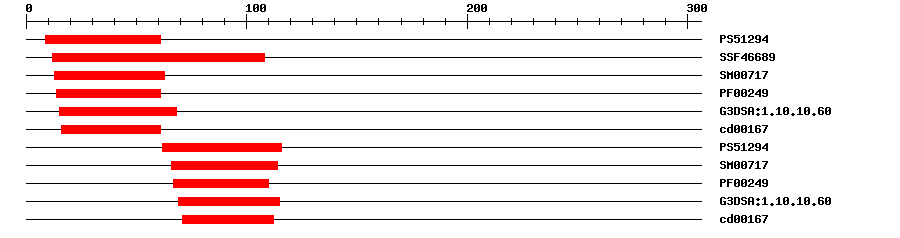

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129417.315961IPR017930Myb domain
SuperFamilySSF466893.01E-2912108IPR009057Homeodomain-like
SMARTSM007171.1E-141363IPR001005SANT/Myb domain
PfamPF002493.5E-151461IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.609.8E-231568IPR009057Homeodomain-like
CDDcd001675.61E-121661No hitNo description
PROSITE profilePS5129423.87762116IPR017930Myb domain
SMARTSM007171.2E-1466114IPR001005SANT/Myb domain
PfamPF002491.0E-1367110IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.608.3E-2369115IPR009057Homeodomain-like
CDDcd001673.30E-1171112No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 306 aa     Download sequence    Send to blast
MGRKPRCSED GLNKGAWTPL EDEMLADYVK IHGEGKWSNI VKETGLKRCG KSCRLRWMNY  60
LRPGVKRGNI SDDEEDLIIR LHKLLGNRWS LIAGRLPGRT DNEIKNYWHT NIAKKAPHLQ  120
SRRQPRAVDR KQVLPAGSEN GAETSSNFKN HQTIESQGCT PGVAAPTTAL QENNMAQDLA  180
GTLAMAPSNT HHENGSSRKG LASGDNDNLS DILTDFHYME DFYMILDSDY PKLNEITGTA  240
DYHSNNTIQV DDDDYSMSIN GCNPREIAEF SEKLMEADWT SNNCVQPDQG FDFMSLLSFL  300
DSTDQ*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1h8a_C9e-261211625128MYB TRANSFORMING PROTEIN
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtControls the expression of genes involved in anthocyanin biosynthesis. Regulates the expression of at least 3 structural genes: chalcone synthase, dihydroflavonol reductase and flavonol O(3) glucosyltransferase. C1 acts as a trans-acting factor.
Cis-element ? help Back to Top
SourceLink
PlantRegMapSapurV1A.0263s0400.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankFJ5731500.0FJ573150.1 Populus tremuloides MYB transcription factor R2R3-like protein (MYB097) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006382176.10.0transcription factor WER
SwissprotP102901e-55MYBC_MAIZE; Anthocyanin regulatory C1 protein
TrEMBLA0A3N7F8N50.0A0A3N7F8N5_POPTR; Uncharacterized protein
STRINGPOPTR_0006s29080.10.0(Populus trichocarpa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF1659238
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G35550.16e-58MYB family protein
Publications ? help Back to Top
  1. Chen B,Wang X,Hu Y,Wang Y,Lin Z
    Ectopic expression of a c1-I allele from maize inhibits pigment formation in the flower of transgenic tobacco.
    Mol. Biotechnol., 2004. 26(3): p. 187-92
    [PMID:15004287]
  2. Paz-Ares J,Ghosal D,Saedler H
    Molecular analysis of the C1-I allele from Zea mays: a dominant mutant of the regulatory C1 locus.
    EMBO J., 1990. 9(2): p. 315-21
    [PMID:2303027]
  3. Cone KC,Burr FA,Burr B
    Molecular analysis of the maize anthocyanin regulatory locus C1.
    Proc. Natl. Acad. Sci. U.S.A., 1986. 83(24): p. 9631-5
    [PMID:3025847]
  4. Paz-Ares J,Ghosal D,Wienand U,Peterson PA,Saedler H
    The regulatory c1 locus of Zea mays encodes a protein with homology to myb proto-oncogene products and with structural similarities to transcriptional activators.
    EMBO J., 1987. 6(12): p. 3553-8
    [PMID:3428265]
  5. Scheffler B, et al.
    Molecular analysis of C1 alleles in Zea mays defines regions involved in the expression of this regulatory gene.
    Mol. Gen. Genet., 1994. 242(1): p. 40-8
    [PMID:7904044]
  6. Franken P,Schrell S,Peterson PA,Saedler H,Wienand U
    Molecular analysis of protein domain function encoded by the myb-homologous maize genes C1, Zm 1 and Zm 38.
    Plant J., 1994. 6(1): p. 21-30
    [PMID:7920701]
  7. Singer T,Gierl A,Peterson PA
    Three new dominant C1 suppressor alleles in Zea mays.
    Genet. Res., 1998. 71(2): p. 127-32
    [PMID:9717435]
